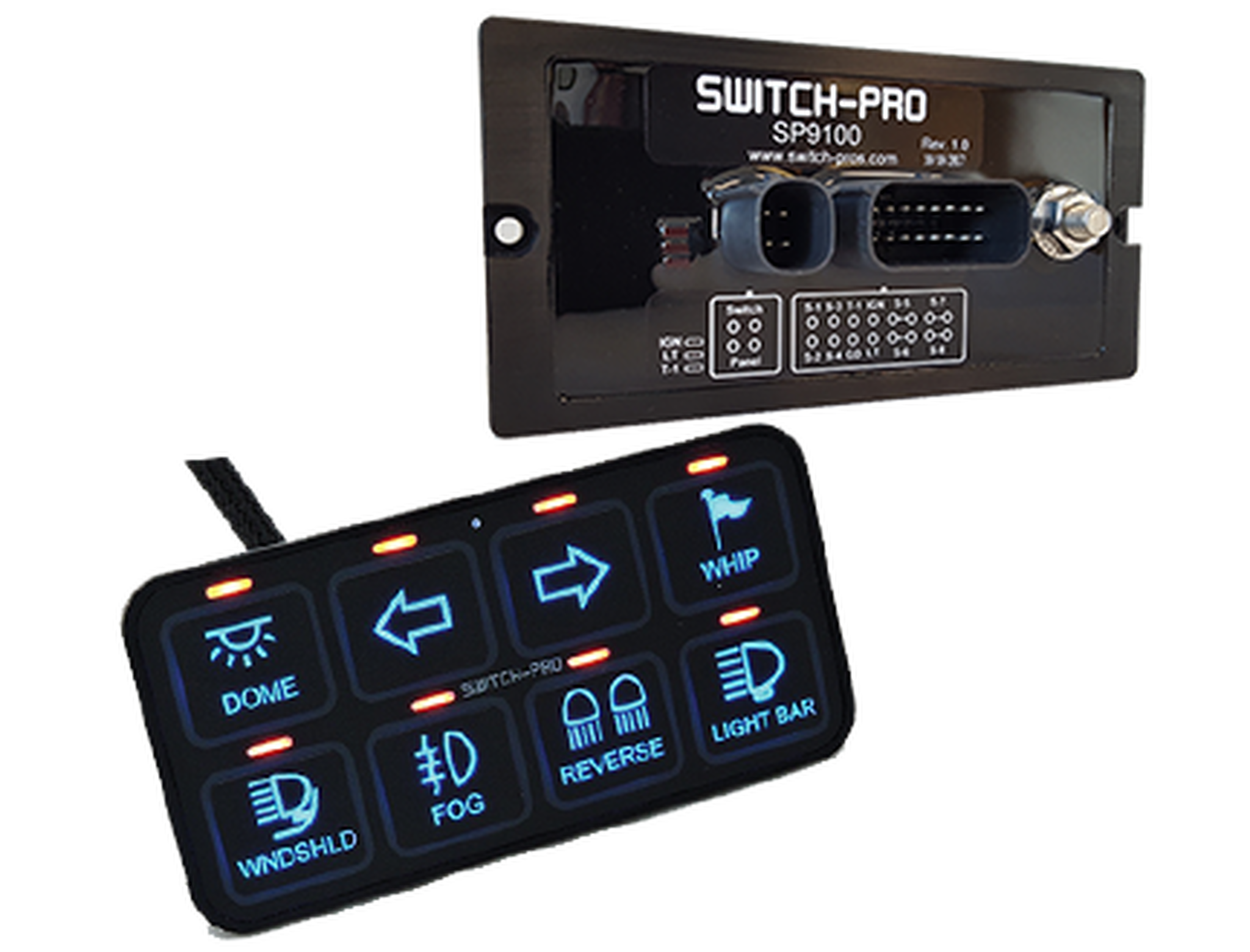

SP9100 Switch Panel Power System

All systems include:

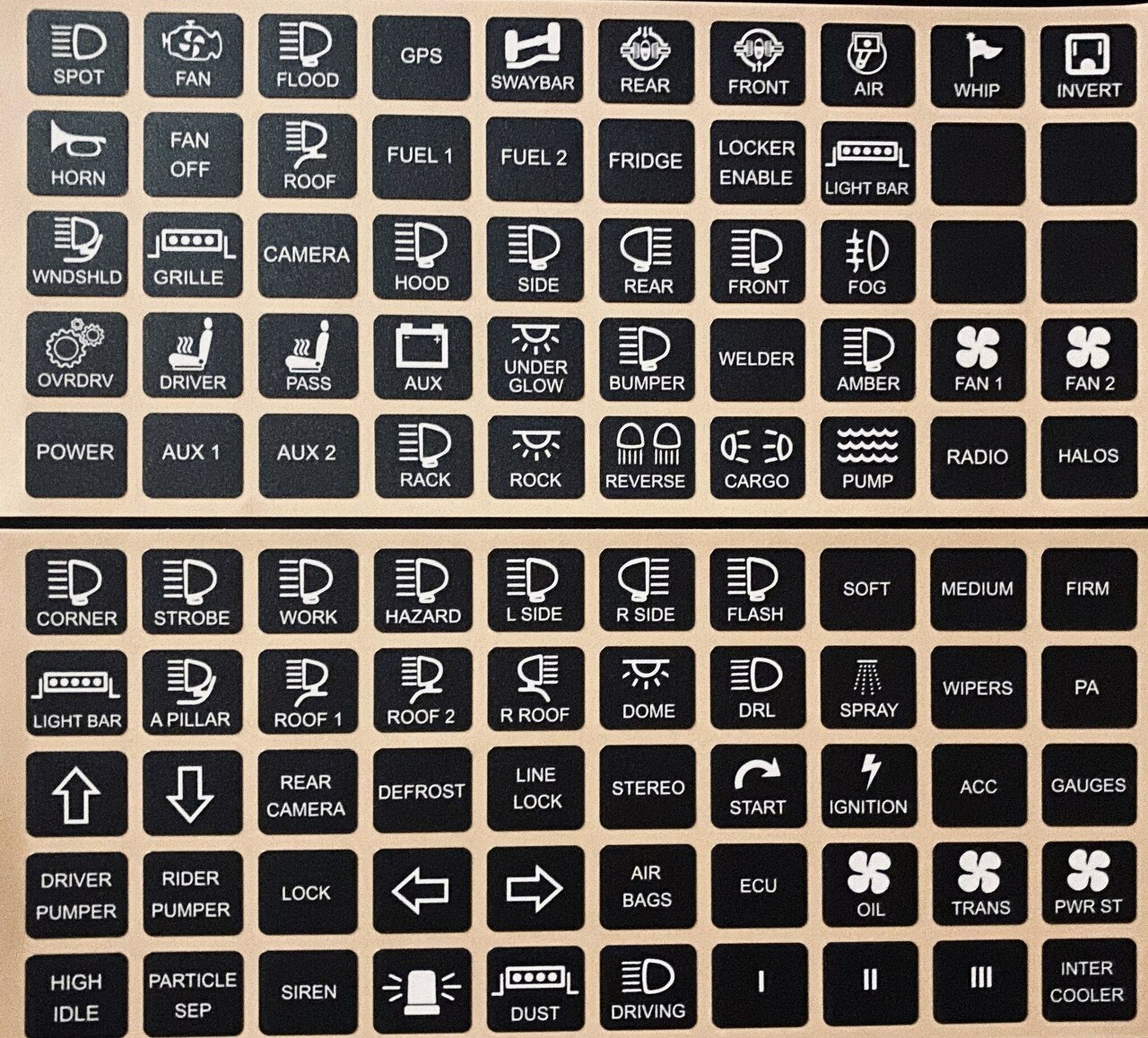

• 100 User-selectable switch legends (not shown)
• Eight user-programmable switches
• Four 35A circuits and four 20A circuits
• Waterproof, Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on App
• Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
• Switches can be programmed for:
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Memory Function
• Master Mode, with ability to turn multiple outputs On AND Off with one touch
• Automatic Power-Up upon vehicle start up
• Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
• Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
• Sleep Mode for minimal power consumption
• Color Coded circuit wires
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smart phone
• Bluetooth interface with FREE Apple or Android App
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box
• Built-In Bluetooth Module

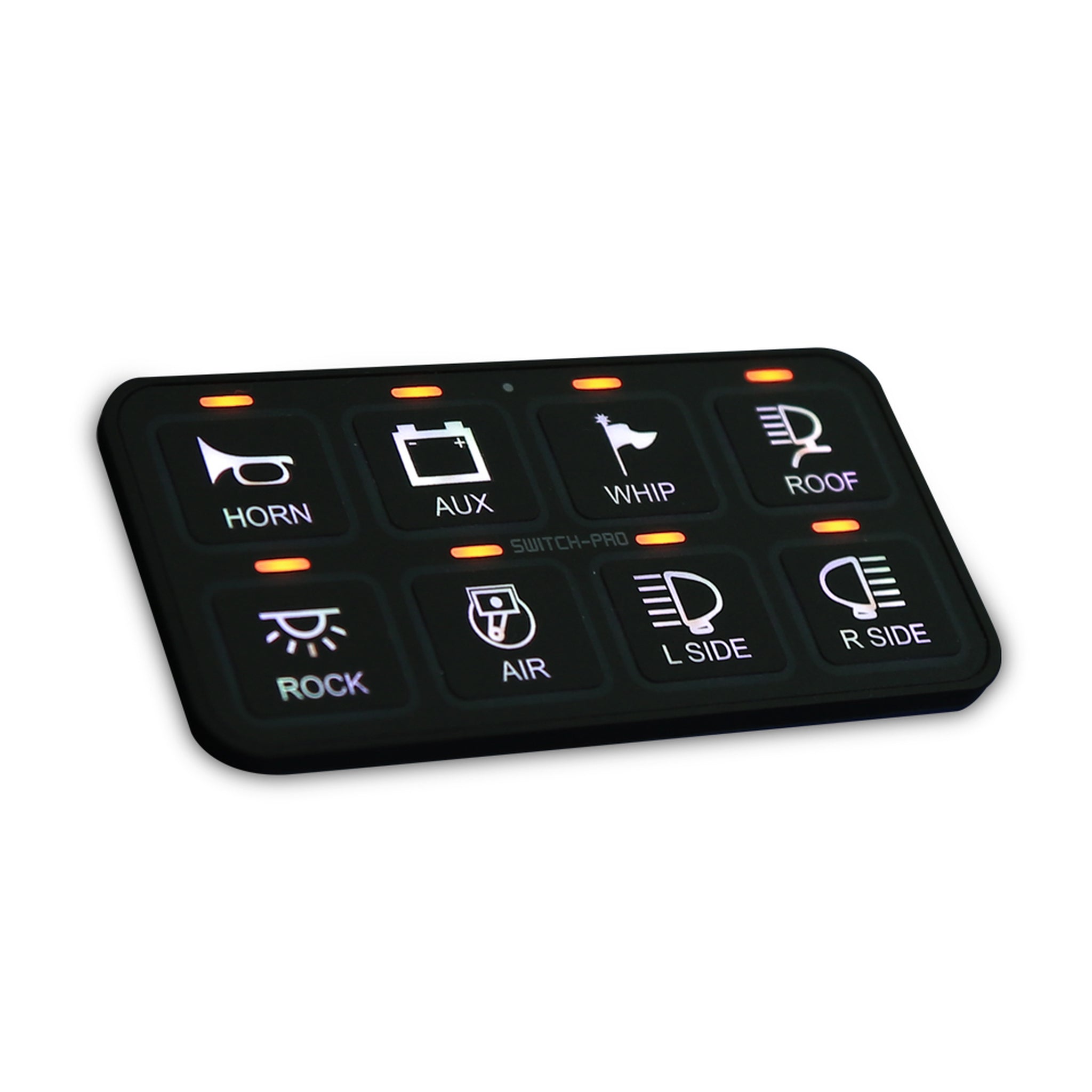

Switch Panel Specs:

• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
• Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
• Orange LED switch indicators
• 100 User Selectable Legends

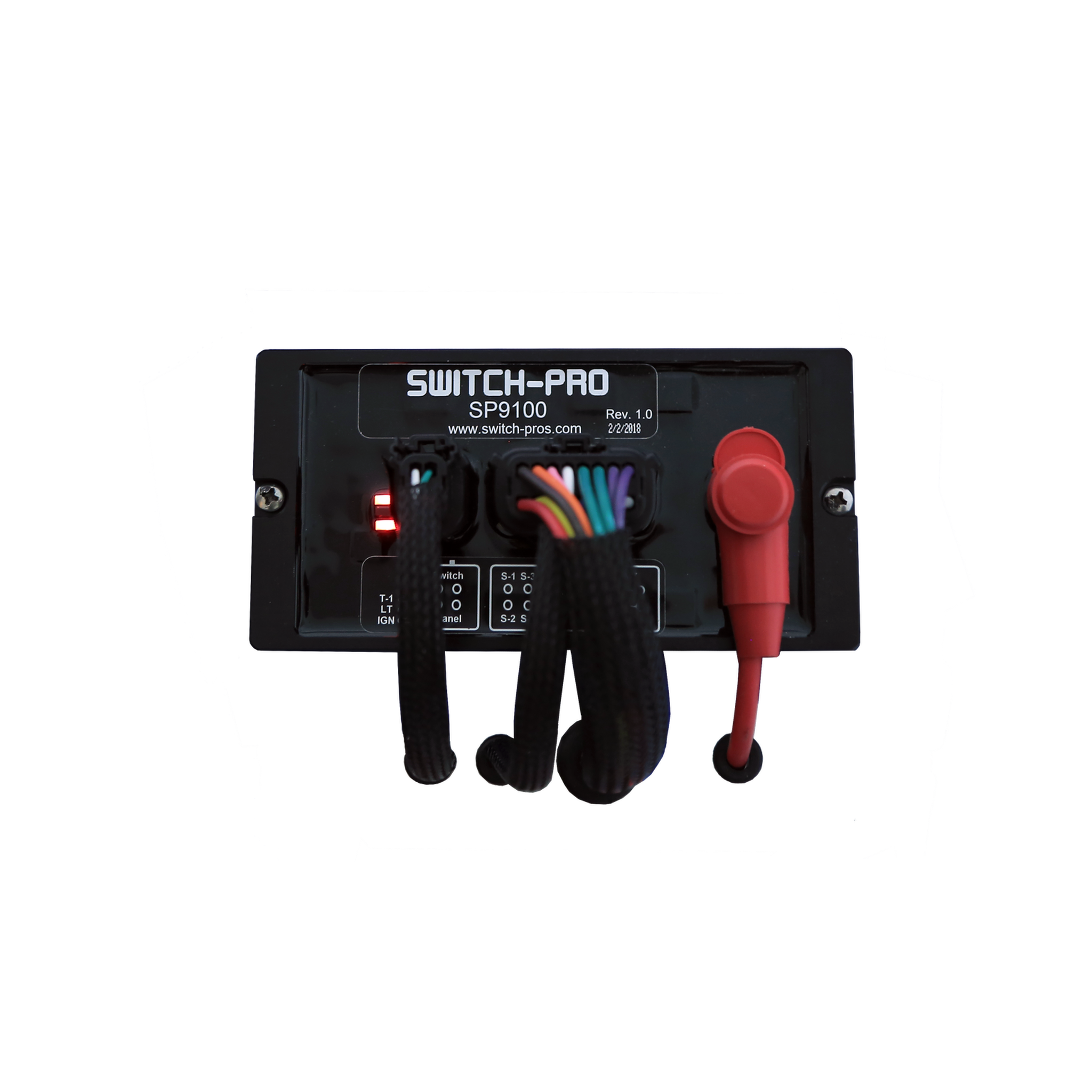

Power Module Specs:

• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• 125A maximum rating
• Waterproof and Solid State
• 6”L x 3”W x .5”H (excluding connectors)
• LED Input Status Indicators for easy troubleshooting
• Underhood rated 125° to -40°C

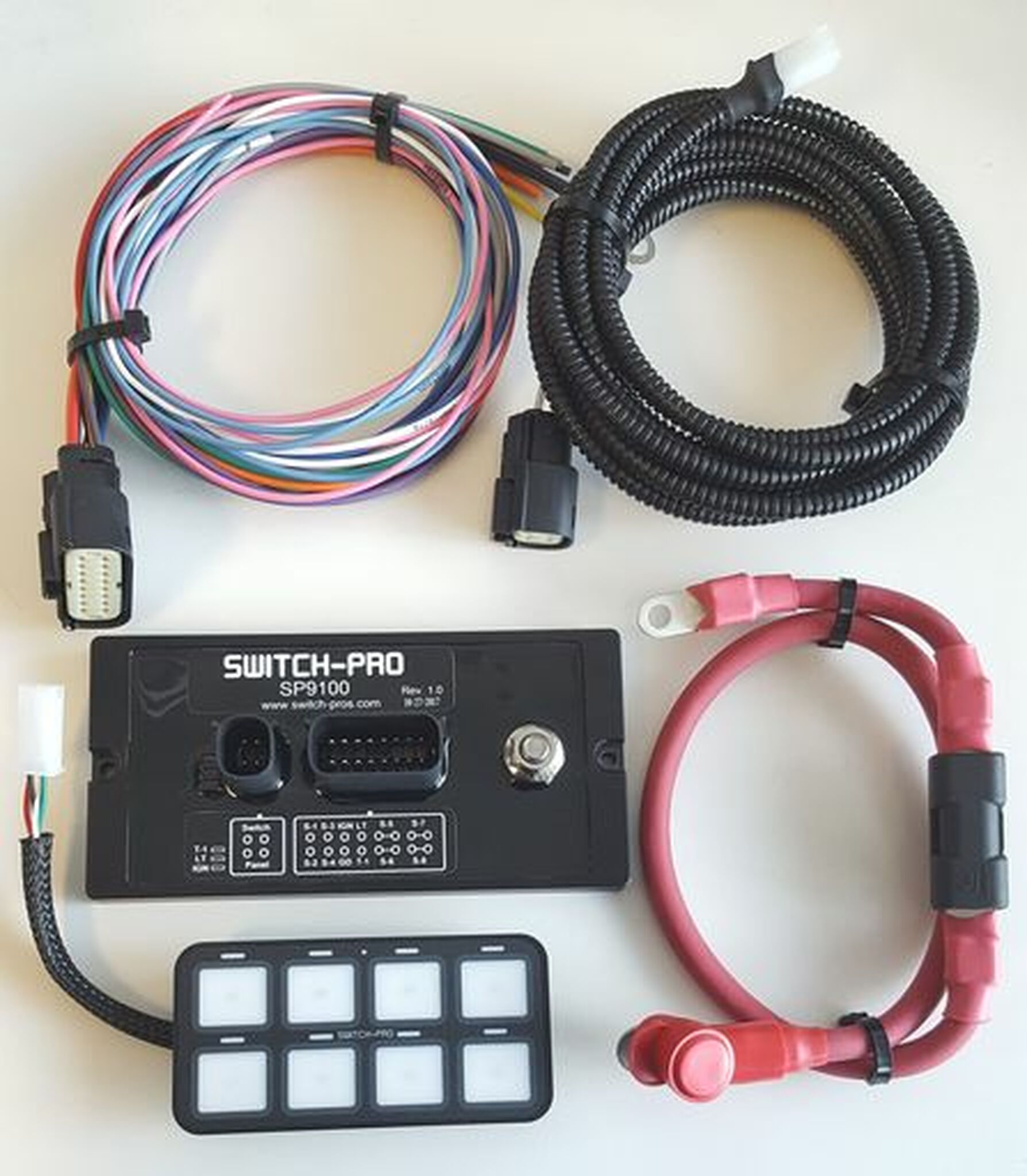

Kit Also Includes:

• 11’ of Communication Cable between Switch Panel and Power Module
• Color Coded Output wires
• Wire harness with Waterproof, sealed automotive grade connectors
• Power Cable with 125A inline fuse
