RockJock

|
SKU: ROKRJ-301101-102

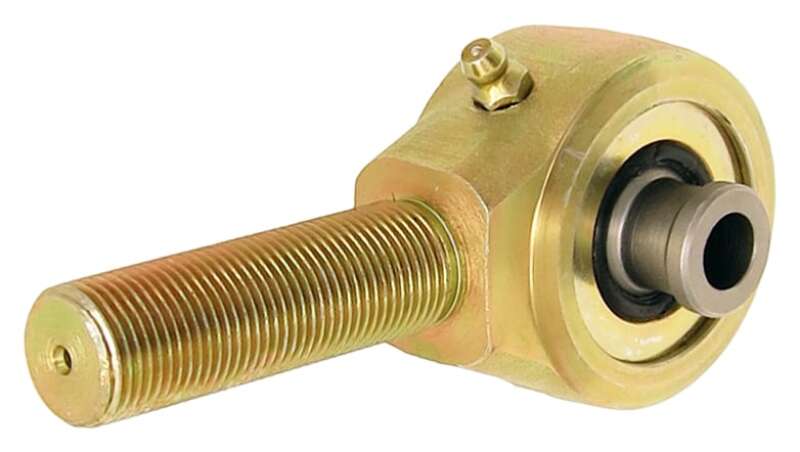

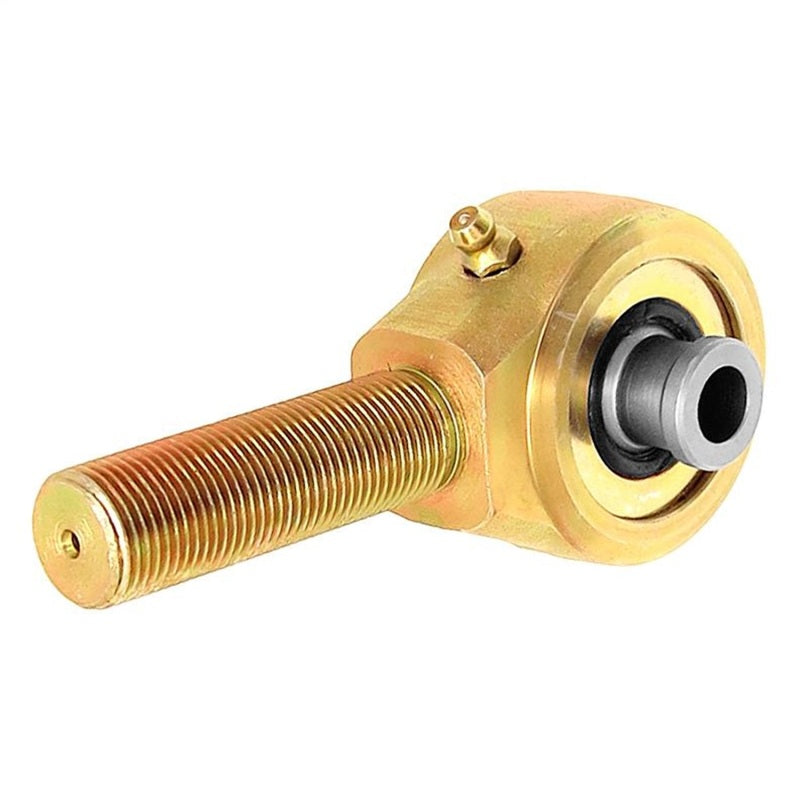

RockJock Johnny Joint Rod End 2 in 3/4 in. RH Thread 1.800 in. x .630 in. Incl. Safety Washer

Sale price$70.00

Have Questions?

+1 702-333-0868, M-F 9-6 PST
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 3/4 in.-16 right hand threads on the shank, a safety washer installed on the snap ring side, 1.800 in. mounting width ball with a .630 thru bolt hole. Finished in gold zinc plating.
