Description

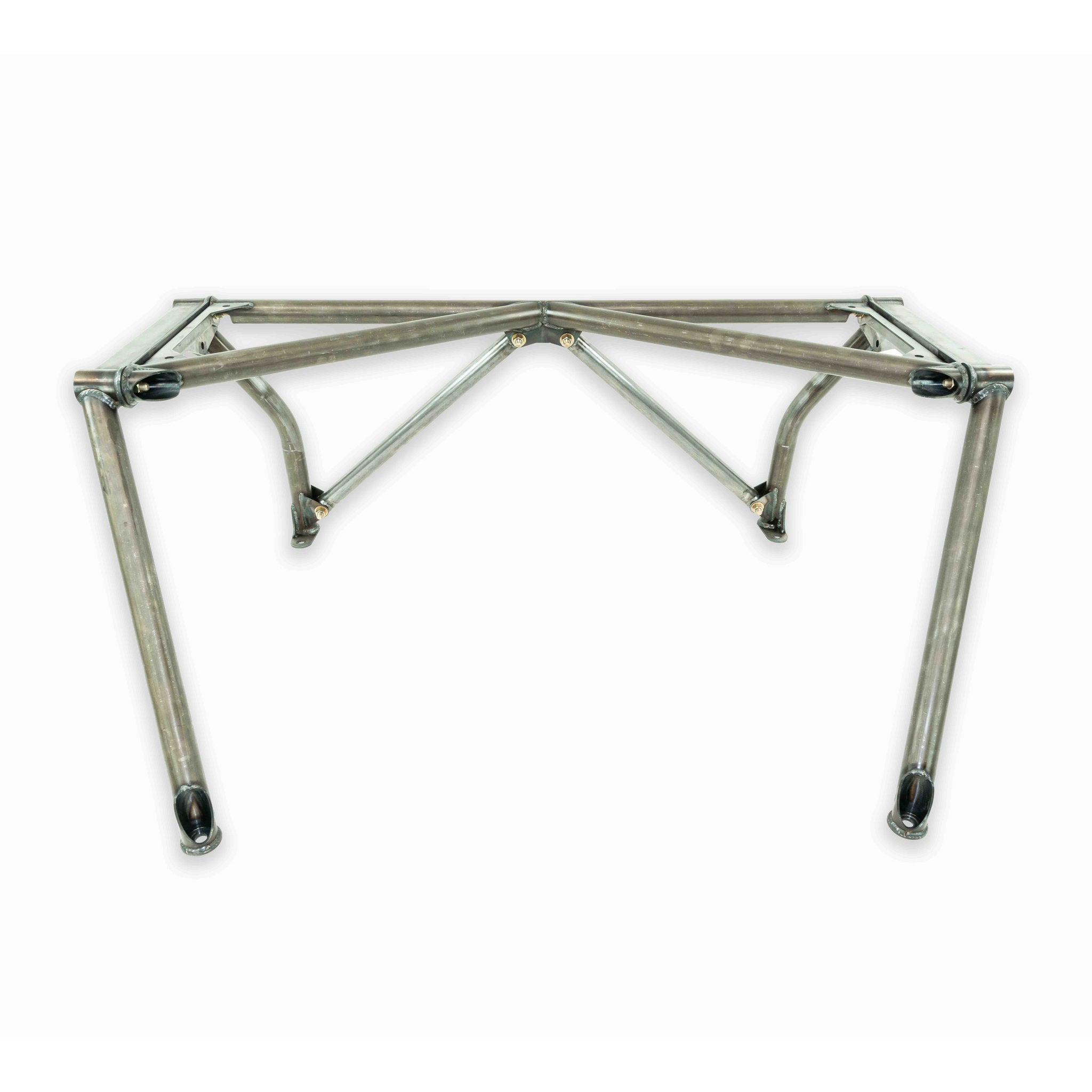

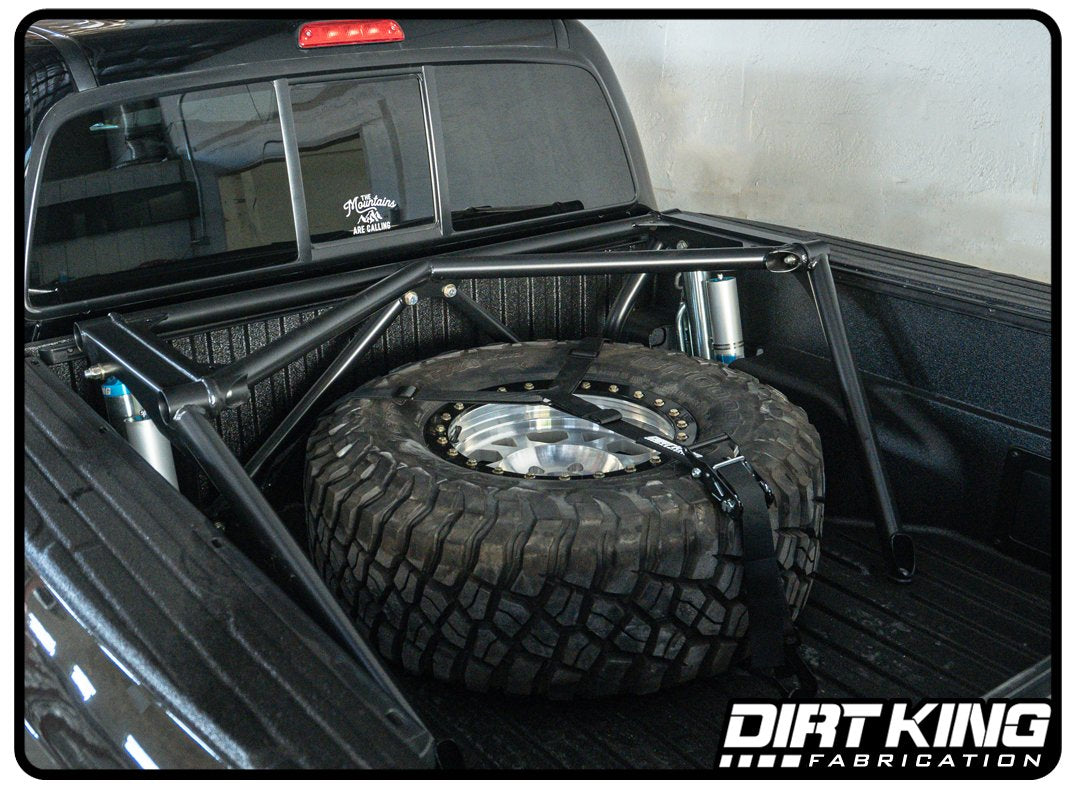

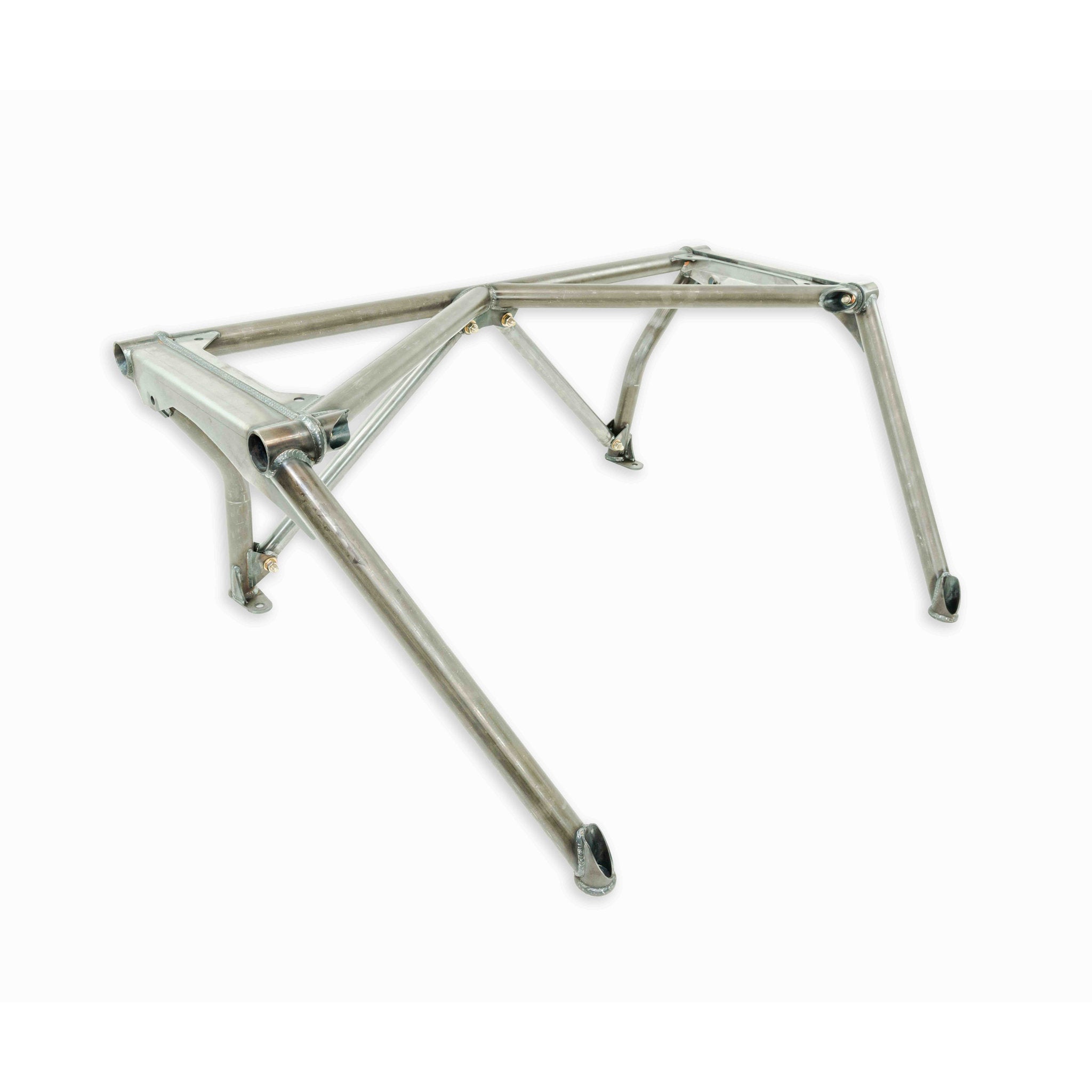

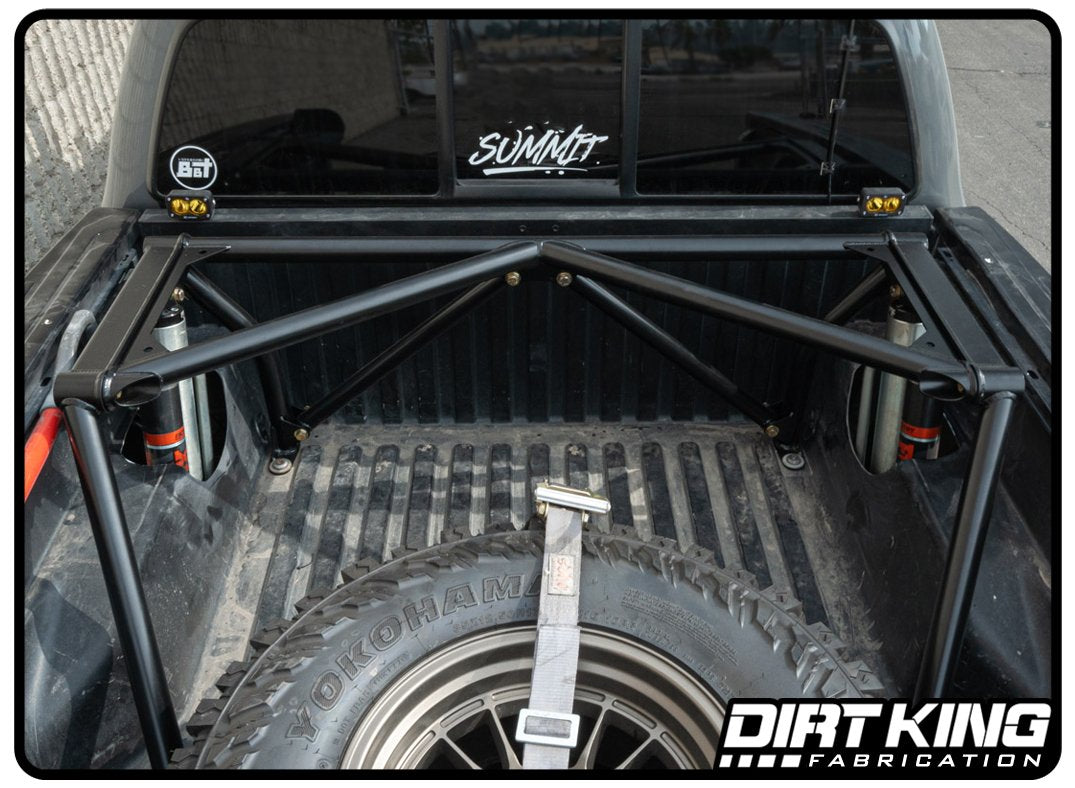

The Dirt King Prefab Bed Cage was developed after building numerous custom bed cages. With that experience we've perfected the design for maximum travel and easy installation. The bed cage takes up minimal bed space while not compromising strength. Accessory mounting holes are incorporated into the center section of the cage to mount dust lights and flag whips. The entire kit bolts together and installs in the factory bed mounting locations. It is designed to be installed with Deaver leaf under springs. This suspension system is superior to a cantilever suspension system for two major reasons. The first reason is the shock mounts on the bed cage are outside the frame rails vs inside the frame rails for increased stability. The second reason is the shocks are mounted vertically with a motion ratio close to 1:1 allowing for proper dampening through the suspension travel. The cantilever suspension has a higher motion ratio resulting in smaller shocks, difficult to valve shocks properly, and heating up the shocks faster since they have less fluid. The Dirt King Prefab bed cage is your best choice to increase rear suspension performance while not breaking the bank.
Specifications
- Recommend Deaver H70HD Leaf Springs
- Recommend Shocks: Fox or King (works with all shock manufactures)
- Recommend Shock Length: 16in (26in collapsed, 42in extended)
- works with 14in shocks with extended rod ends - Recommended Shock Diameter: 3.0in (works with 2.5in-3.0in shocks)
- Bypass Tube Layout: Bypass tubes on front and back of shocks
- Bed cage Shock Mounting Width: 1.5in
- Axle Width: Requires 1.5in-2in wheel spacers or 1.5in-2in wider per side axle
- Accessory Mounting Hole Size: 1/2in
What's Included
- Prefabbed bed cage structure
- Grade 8 mounting hardware
- Lower shock mounts
- Installation instructions
Features
- CAD designed

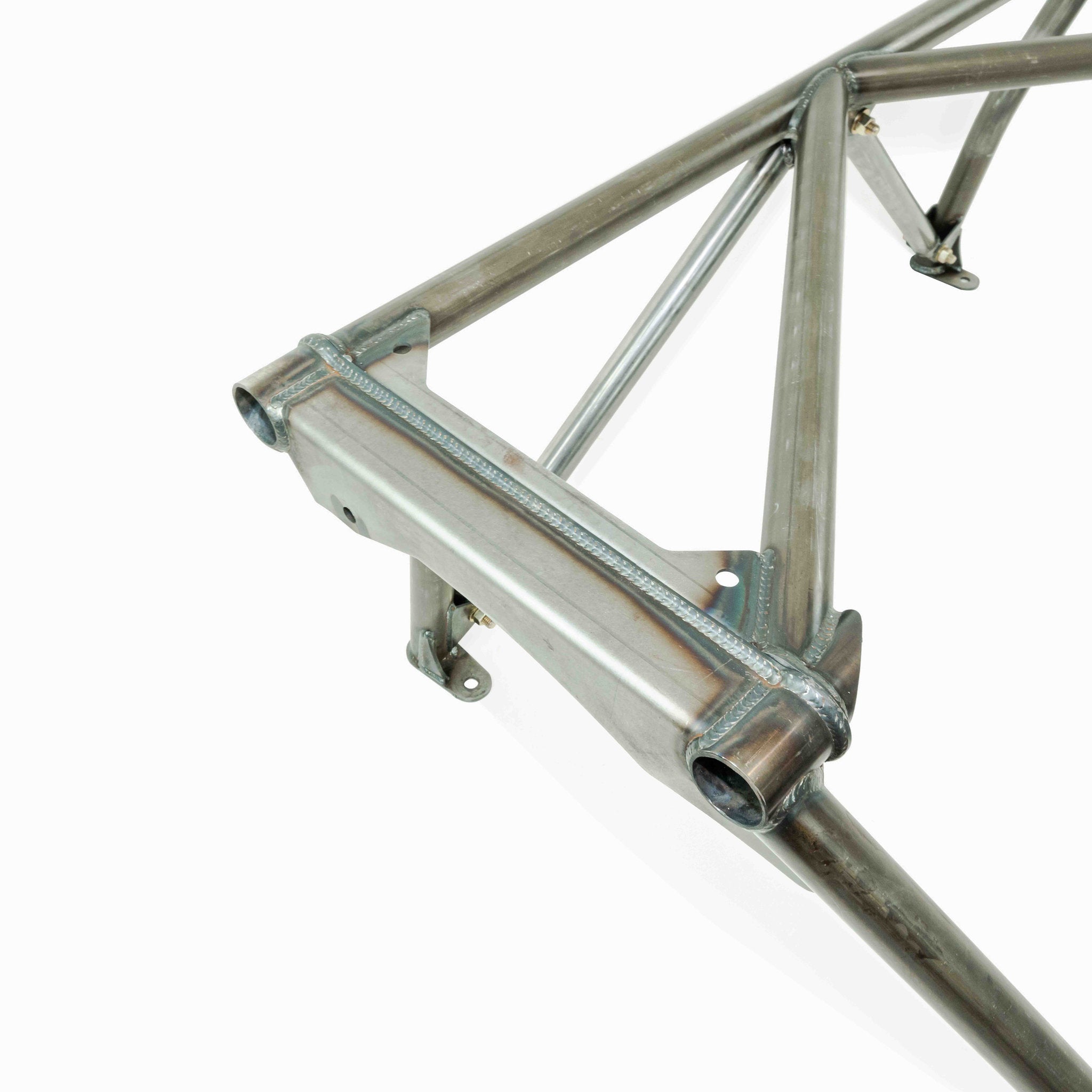

- Boxed plate and tube construction
- 2inx.120in DOM tubing
- 1/4in, 3/16in, and 1/8in plate
- Professionally MIG welded
- Proudly made in the USA
Compatibility
2005-2023 Toyota Tacoma 2WD / 4WD
Will also work on the 6.5 ft beds with our custom brackets.
