Description
This suspension system was developed for the most extreme off-road terrain. The long travel race kit is capable of 17.5in of travel and can accept up to a 37in tire. We have perfected the suspension geometry by relocating the upper control arm mounts and modifying the outer pivot locations on the spindle. With these changes we were able to achieve twice the amount of travel compared to stock and eliminate bump steer throughout the suspension cycle. The kit accepts 2.5 x 10in coil overs and 3.0 x 10in bypasses for superior suspension dampening. This kit is constructed using parts commonly found on trophy trucks such as massive Probearing 1.5in uniballs and JMX series heims. The result is a suspension system with reliable performance and off road handling that will exceed all expectations. This kit must be installed by a qualified off road shop.
Specifications
- Wheel Travel: 17.5in
- Amount of Lift: 0-4in
- Track Width: 4.25in wider per side
- Maximum Tire Size: 37in
- Maximum Backspacing: 4.5in
- Minimum Rim Size: 17in
- Coilover & Bypass Shock Size: Dirt King Spec
*Layout & dims available on request (valving info not provided)
Shocks
This suspension system must be installed with shocks built to our specifications. Within the “specsin tab we provided the PDF showing how they need to be built. The shocks are also available for purchase through Dirt King. Email for availability and pricing
Wheel Travel
When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve those numbers. Our suspension systems are built to allow for maximum wheel travel, perfected suspension geometry, and an overall product with a simplified installation process and is easily serviceable. We disclose as much information as possible so you can make an educated purchase and won’t be left with any surprises.
Tire Info
When using 37in tires with this kit modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.

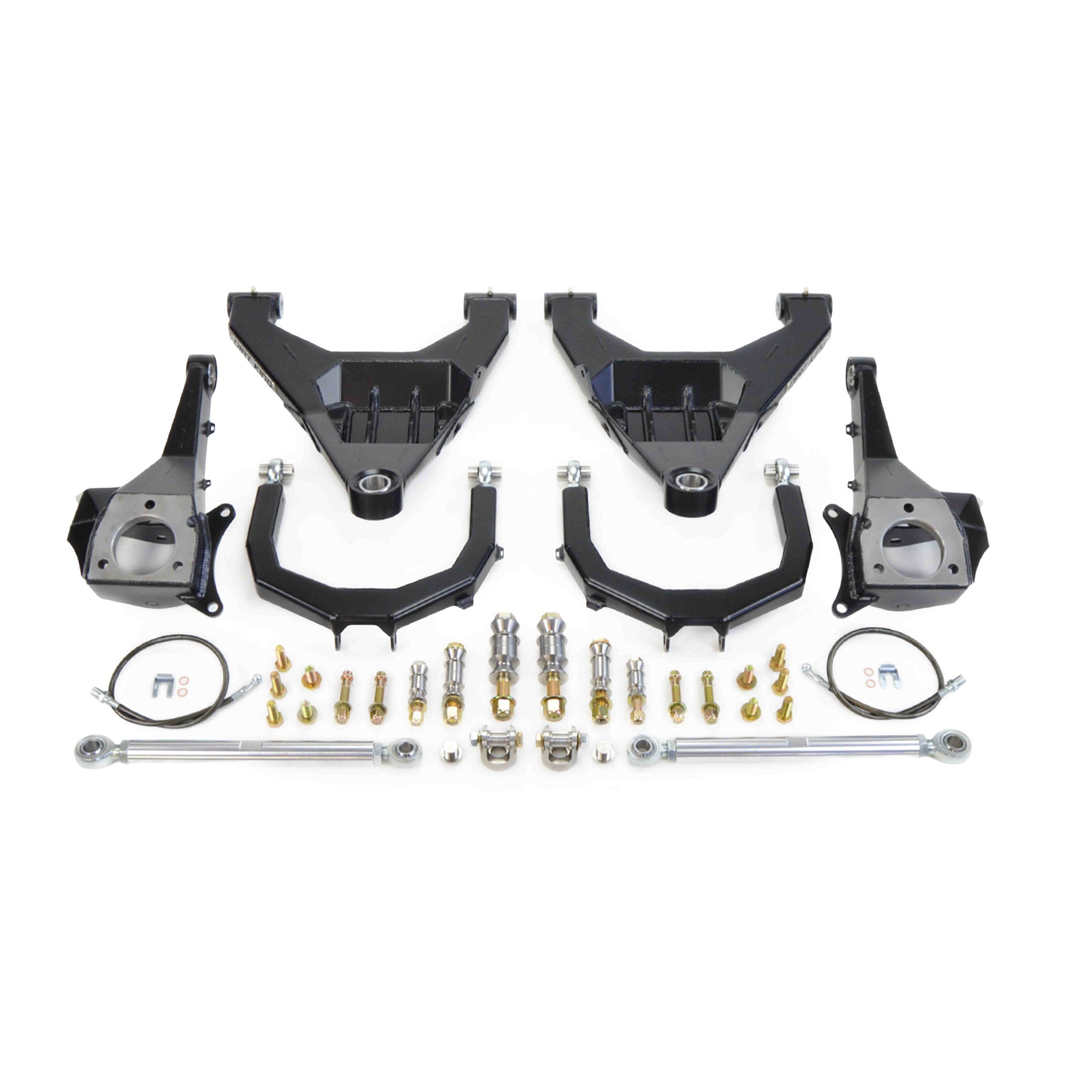

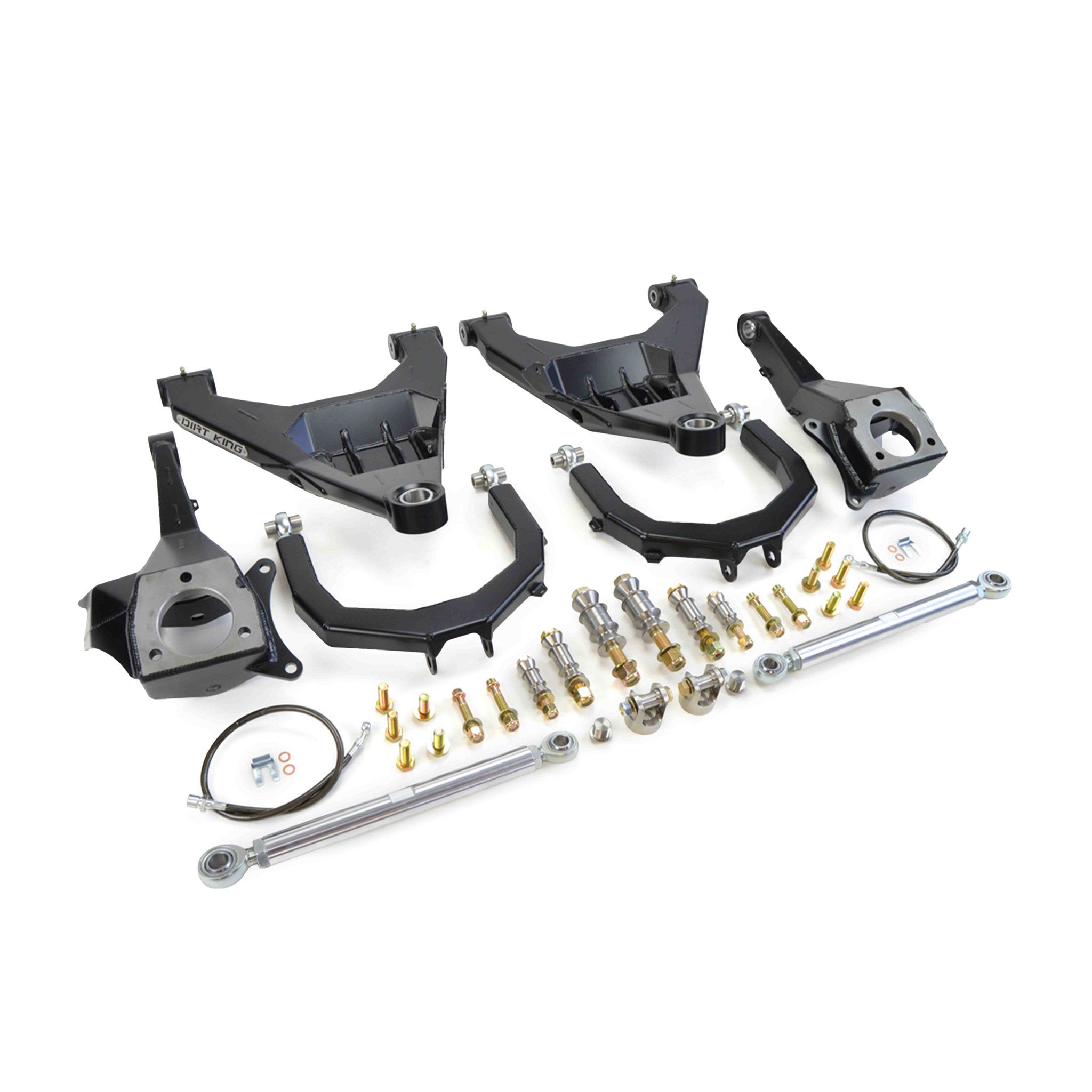

What's Included
- Boxed plate upper control arms
- Boxed plate lower control arms with pocketed shock mounts
- 9in quad wrapped limit straps
- Weld on adjustable limit strap mounts
- 17-4 stainless steel misalignment spacers
- 17-4 stainless steel steering clevis’s
- Fabricated shock towers
- Billet aluminum heimed tie rods
- DOT approved extended brake lines
- Grade 8 mounting hardware
- Durable black powder coat finish
Features
- Utilizes American Probearing bearings
- 4130 chromoly uniball cups
- ¾in heims for the UCA’s
- Delrin bushings for the LCA’s
- Zinc plated inner bushing sleeves
- Grease fittings for easy servicing
- Pocketed lower shock mounting
- 3/16in & 1/8in boxed plate construction
- Internally ribbed with extrusions for weight reduction
- Limit strap tabbing
Compatibility
2009-2018 Ram 1500 2WD
*Front fiberglass required.
