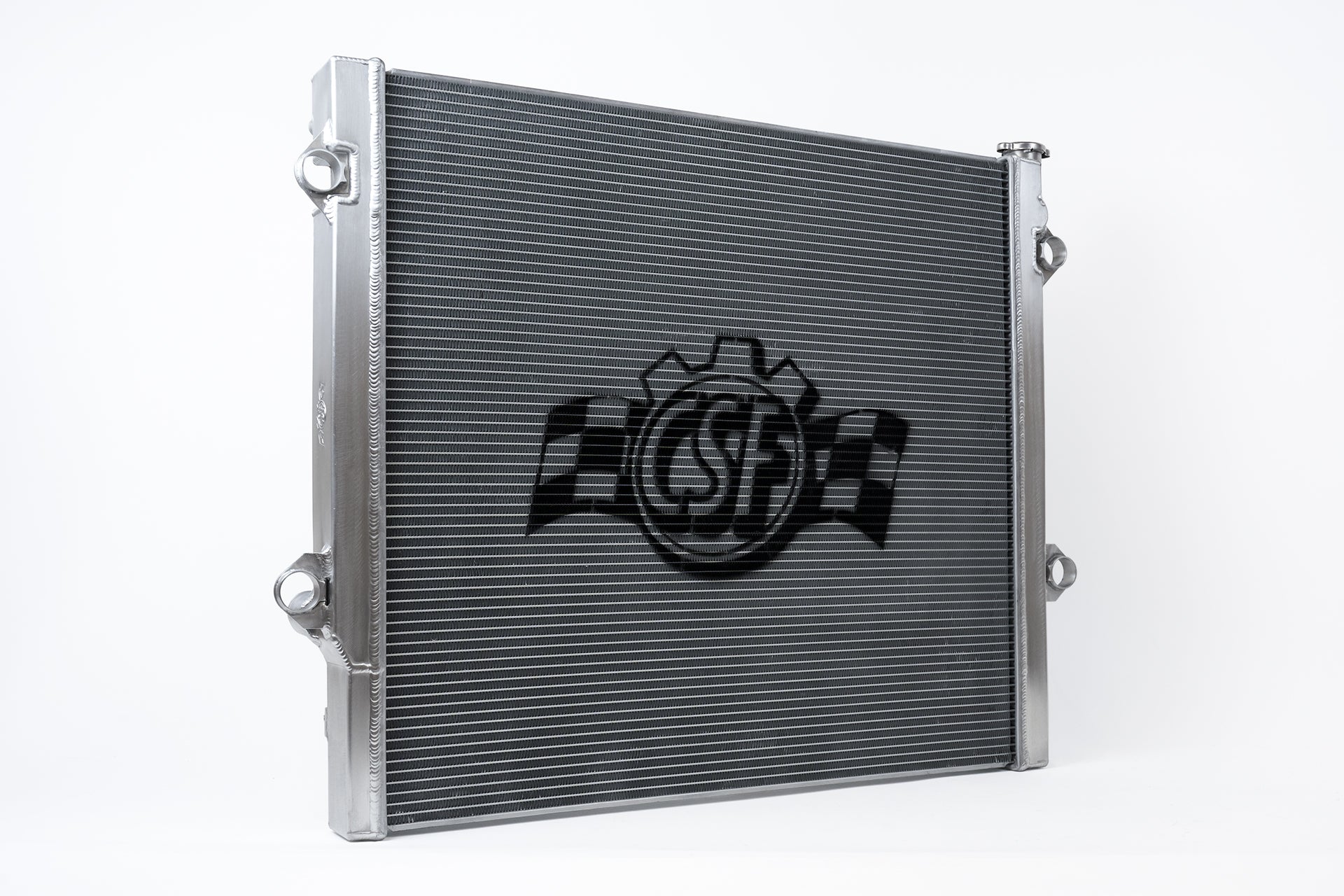

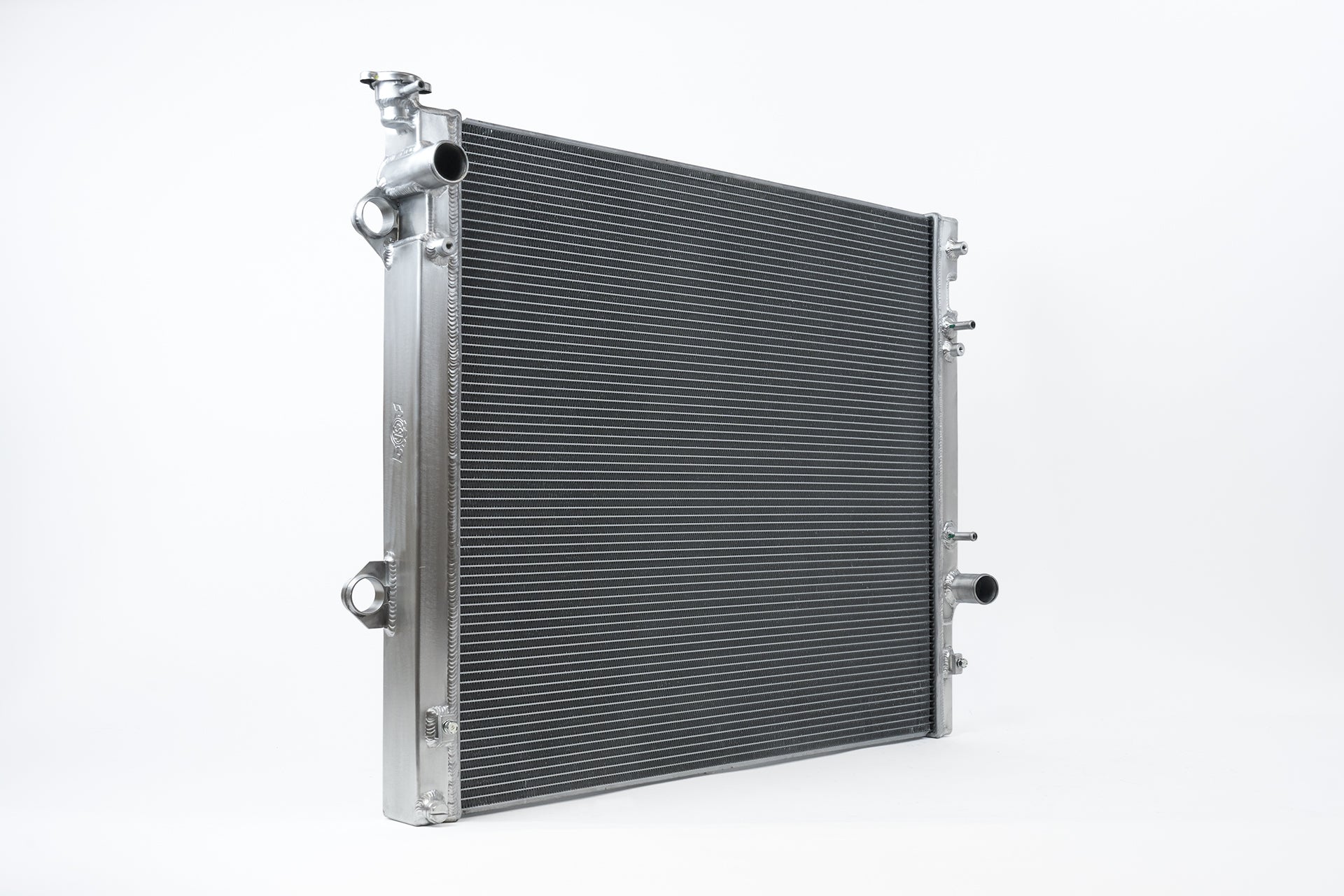

Lexus LX470 / 4th Gen Toyota 4Runner V8 Heavy-Duty All-Aluminum Radiator

Sale price$699.00
Pickup available at 4301 S Valley View Blvd Unit 19 Usually ready in 2-4 days

Lexus LX470 / 4th Gen Toyota 4Runner V8 Heavy-Duty All-Aluminum Radiator

4301 S Valley View Blvd Unit 19

Pickup available, usually ready in 2-4 days

4301 South Valley View Boulevard
Unit 19
Las Vegas NV 89103
United States

+17023330868

Have Questions?

+1 702-333-0868, M-F 9-6 PST

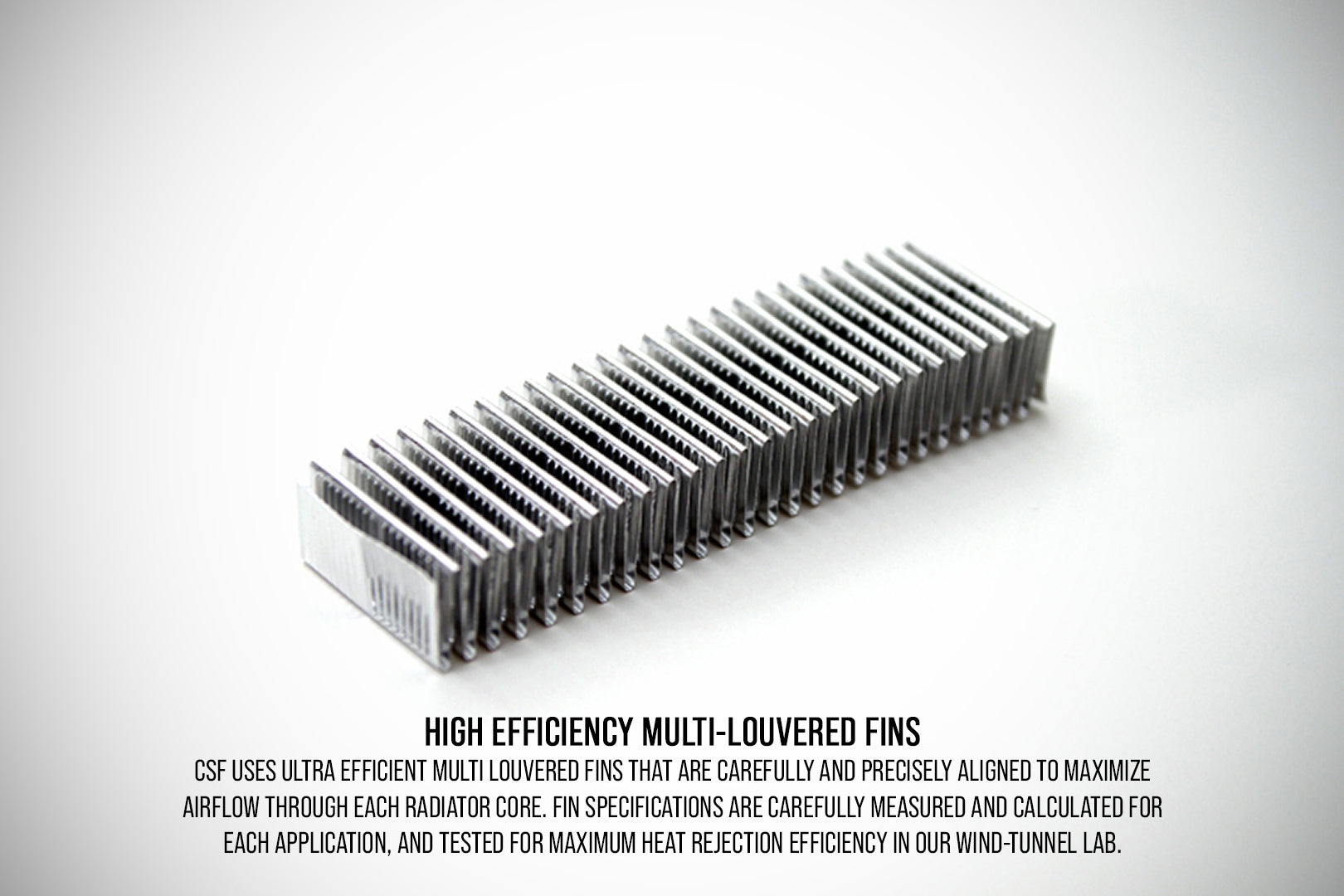

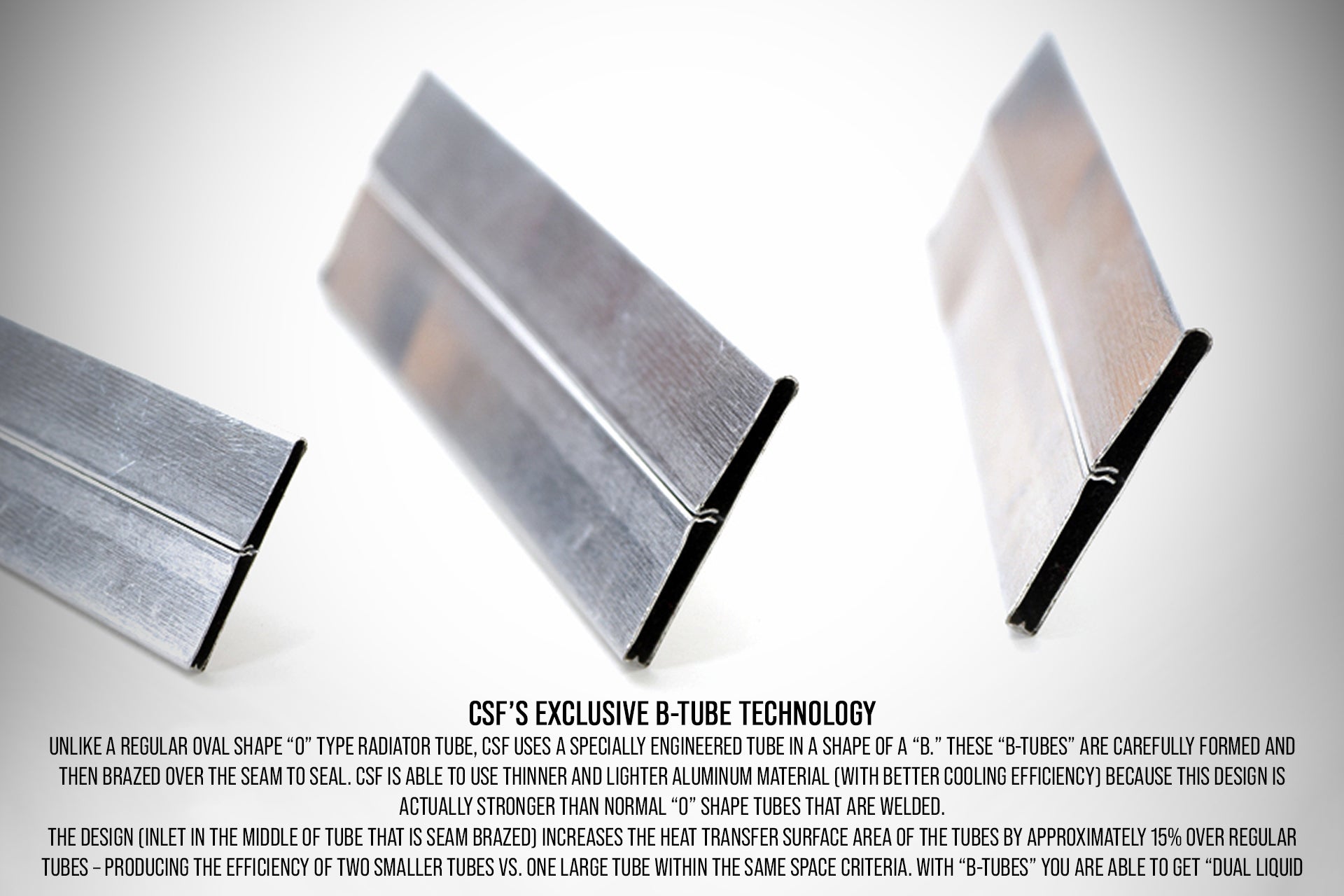

The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. End tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting. CSF even includes pre-cut double sided adhesive foam strips to help seal the fan shroud against the radiator. This improves airflow efficiency off the fan. Additionally, the radiator features a built-in transmission oil cooler. The transmission cooler is a heavy-duty high-performance 5 plate design that connects to the OEM hoses. The upgraded built in cooler is great dealing with the added heat and stress from towing, low gear crawling, and vehicles equipped with oversized tires. While many understand the impacts of oversized tires, it is always good to provide extra incite. By increasing the diameter of your tires, you are reducing the effective gear ratio. This means the engine and transmission have to work harder to move the tires. Obviously this will end up generating excess heat, but the CSF radiator is designed to handle it.
