Part# KRFD1745FOX
Fits; 2017-2024 Ford F-250/F-350 Super Duty 4X4 6.7L Powerstroke Diesel
**ADD INSTALL INSTRUCTIONS**
Features
- Provides 4.5" of Lift 2017-2019 | 5.5" of Lift 2020+
- 4.5" of Lift 2019-2019 | 5.5" of Lift 2020+ | 3.5" of Lift 2020+ TREMOR
- Allows for up to a 37"x13.5" Tire on a 20”x10" -25mm Offset (4.5” Backspace) Wheel
- Compatible with Larger Wheels/Tire with Minor Trimming
- Comprehensive Kit
- Durable Black Finish
- Grade 10.9 Hardware
- Precision CAD Engineering
- Designed for Trucks that Need to Work
- Direct Bolt on Install
- Made in the USA

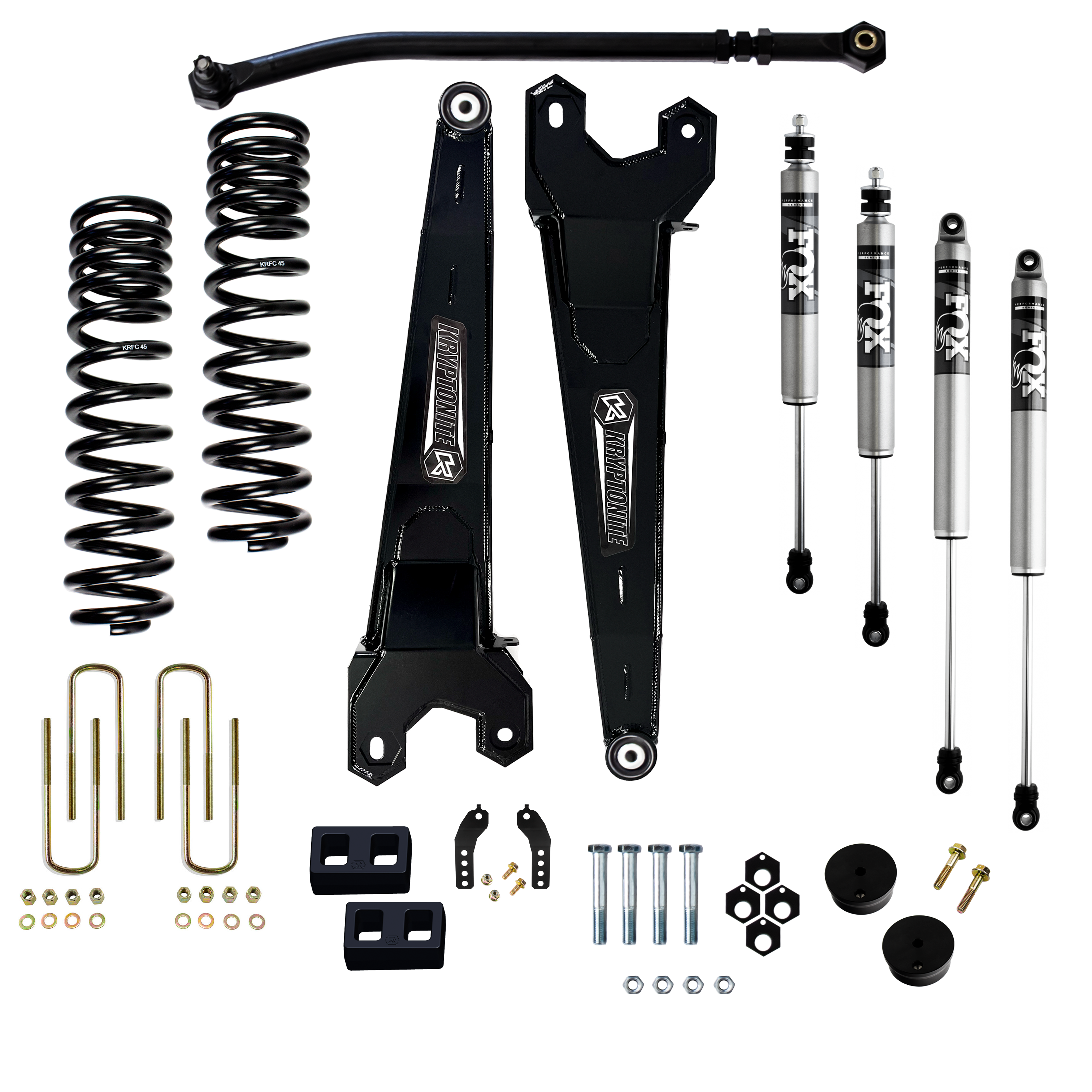

Includes
- Fox 2.0 Performance Series Shocks (Front & Rear)

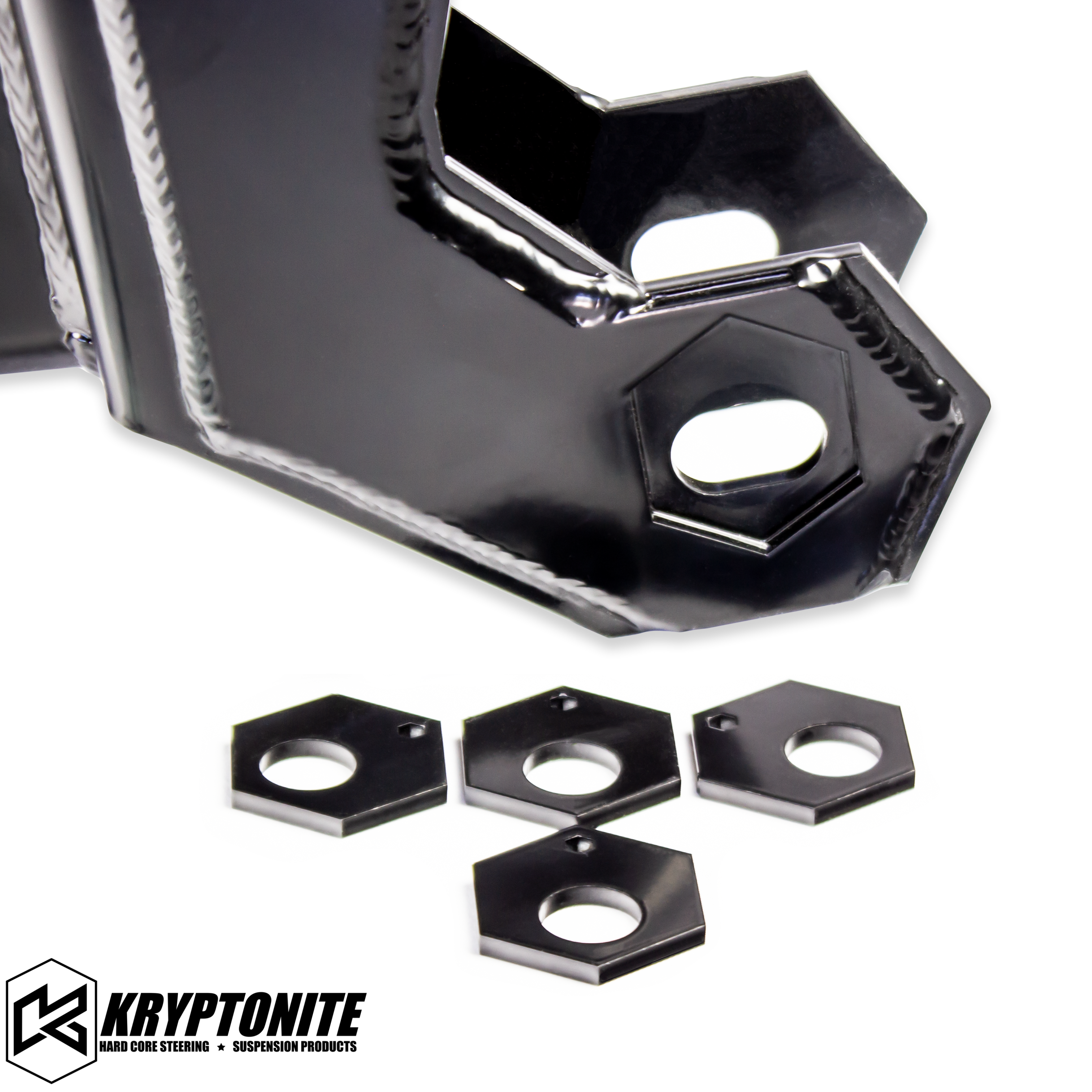

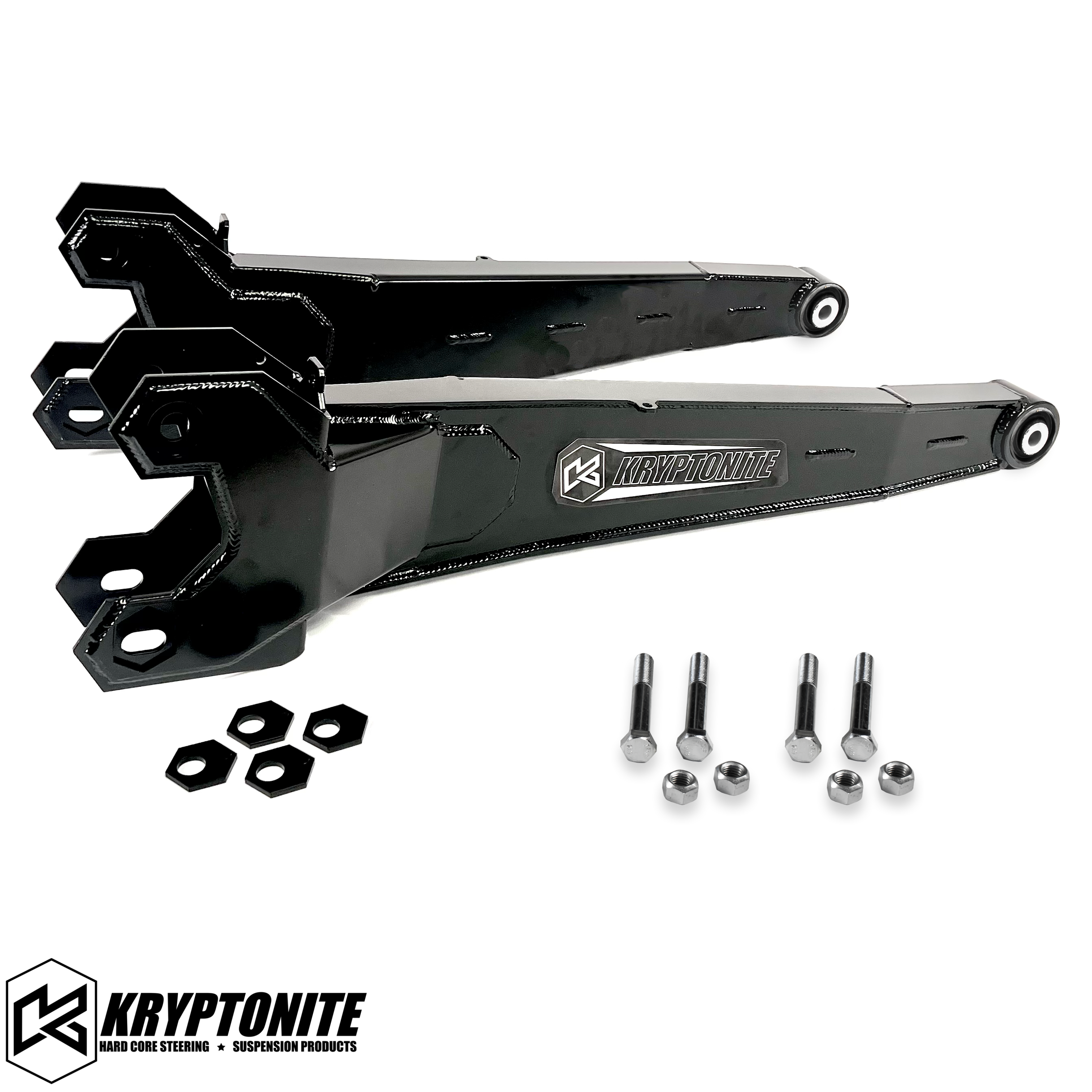

- Radius Arm Kit - KRFDRD1

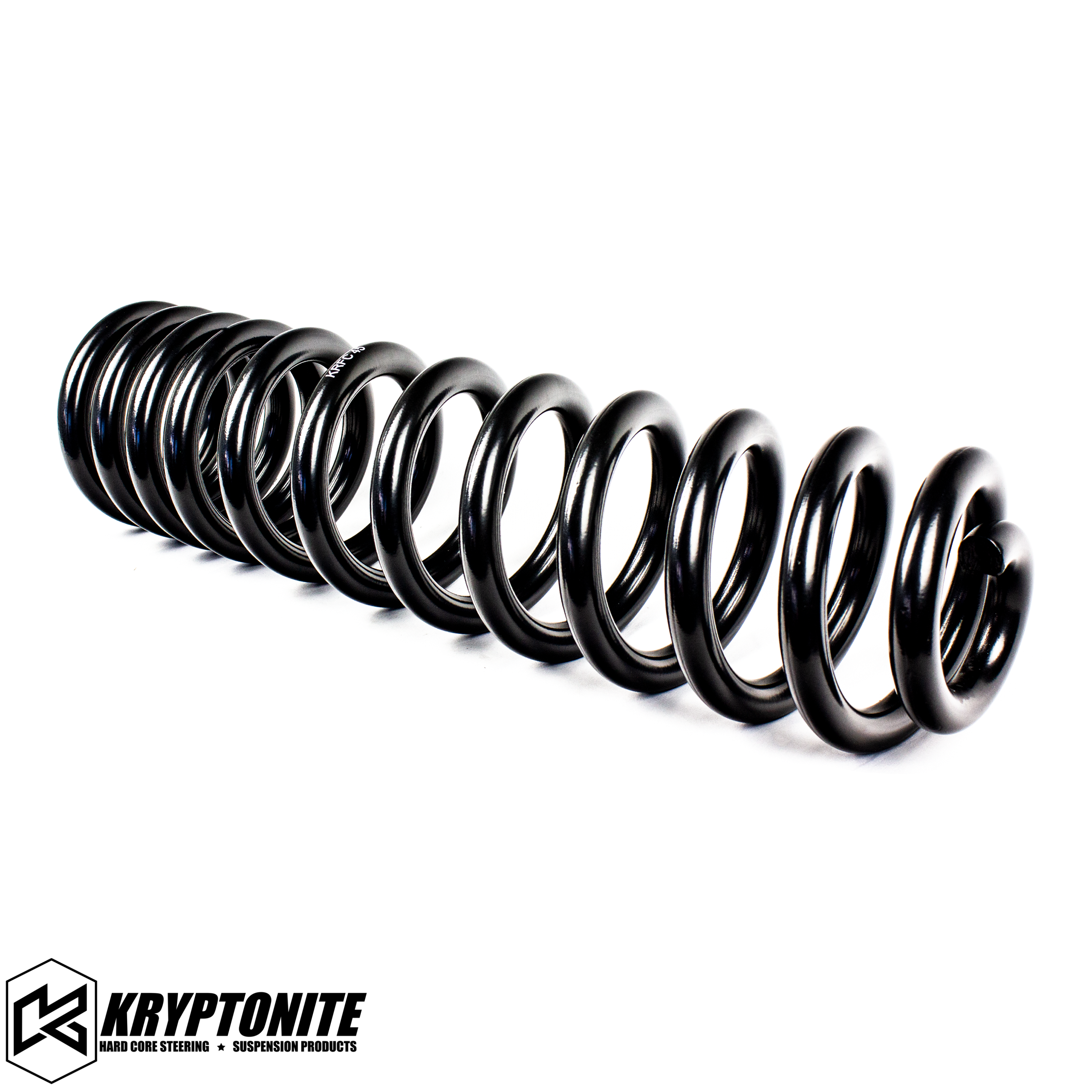

- 4.5"/5.5" Leveling Coils - KRFC45

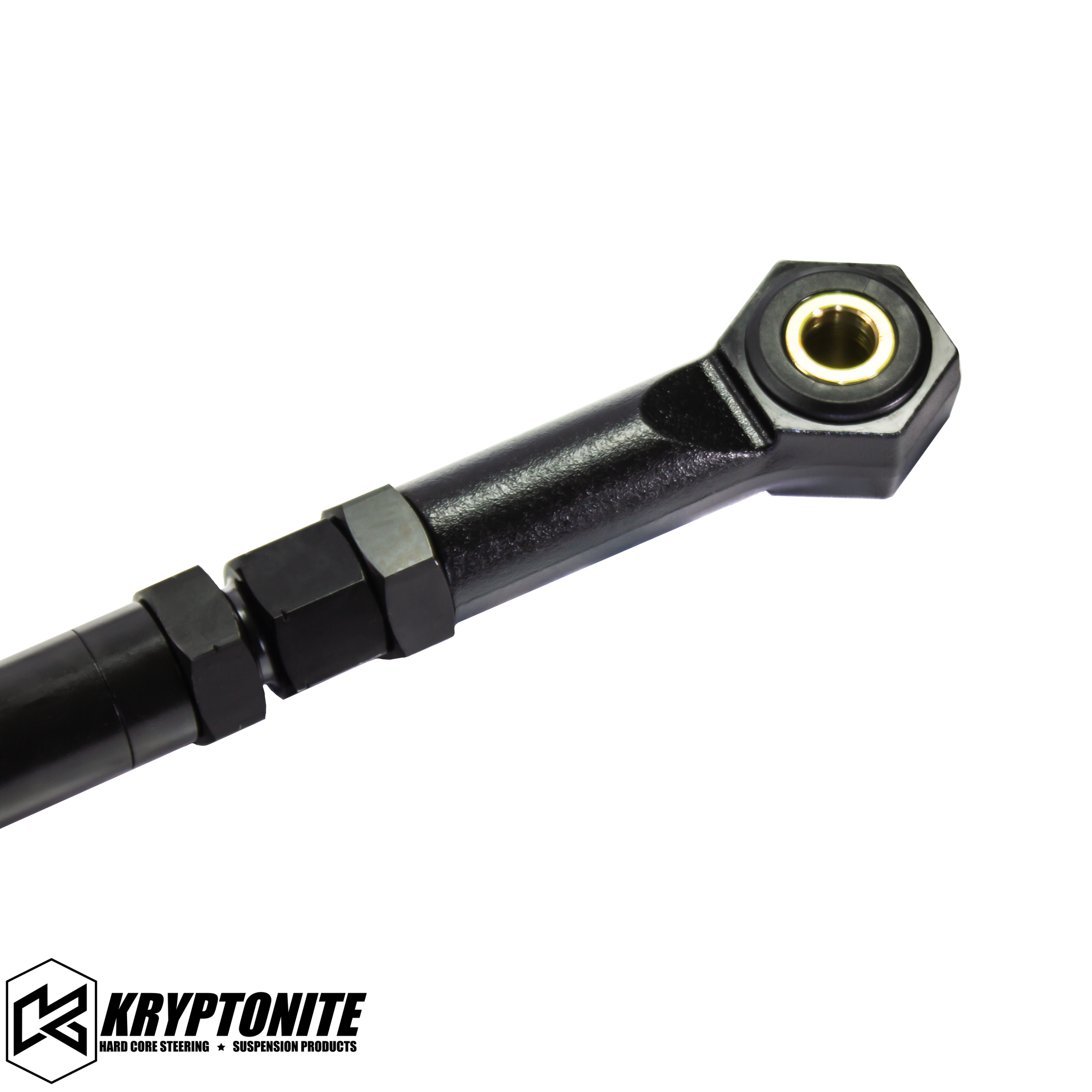

- Adjustable Track Bar - KRFTB17
- 3"-6" Sway Bar End Links - KRFDEL36
- 2” Lift Rear Block Kit -
- Reservoir Mount Kit - KRFSM05-65

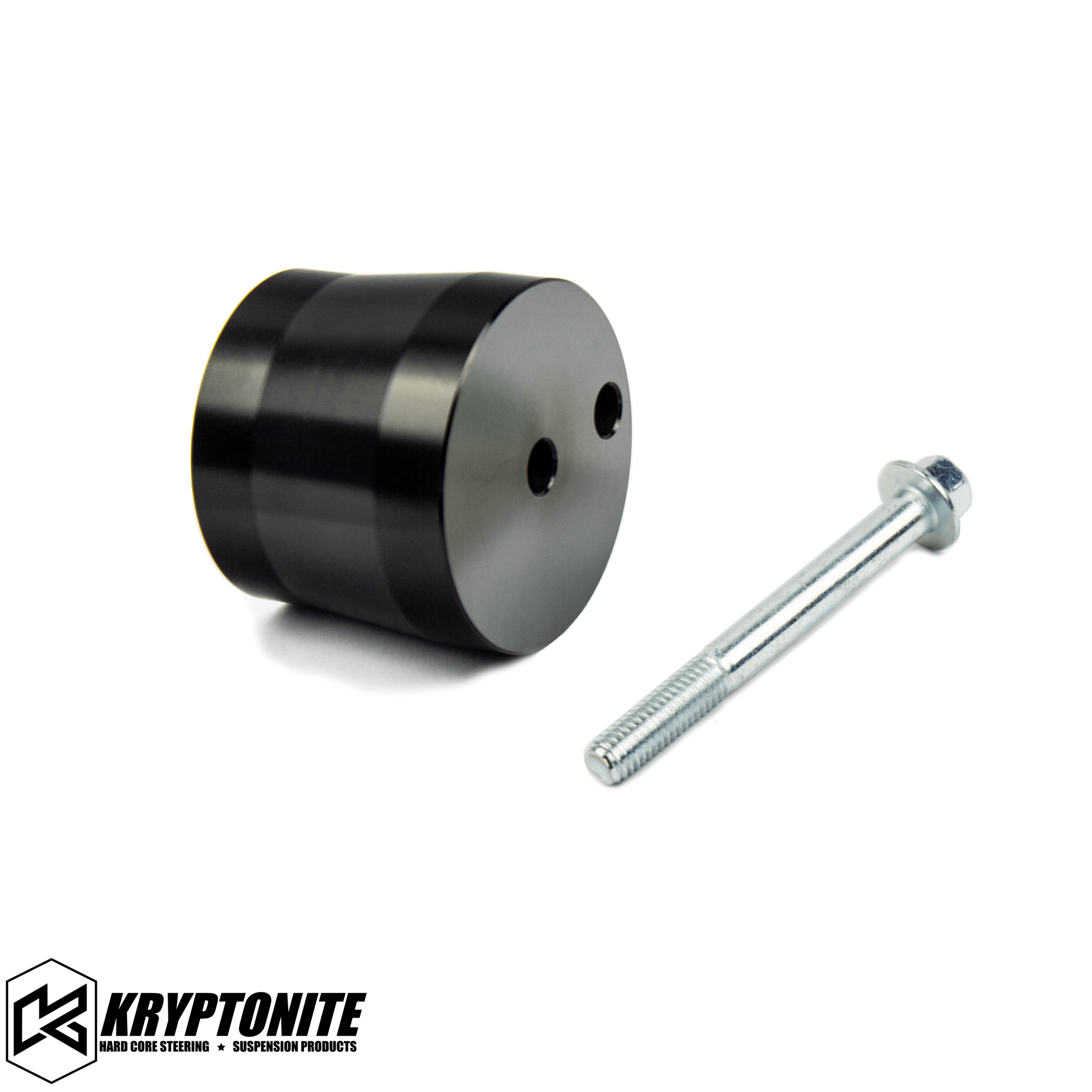

- Bump Stop Spacer Kit - KRF45

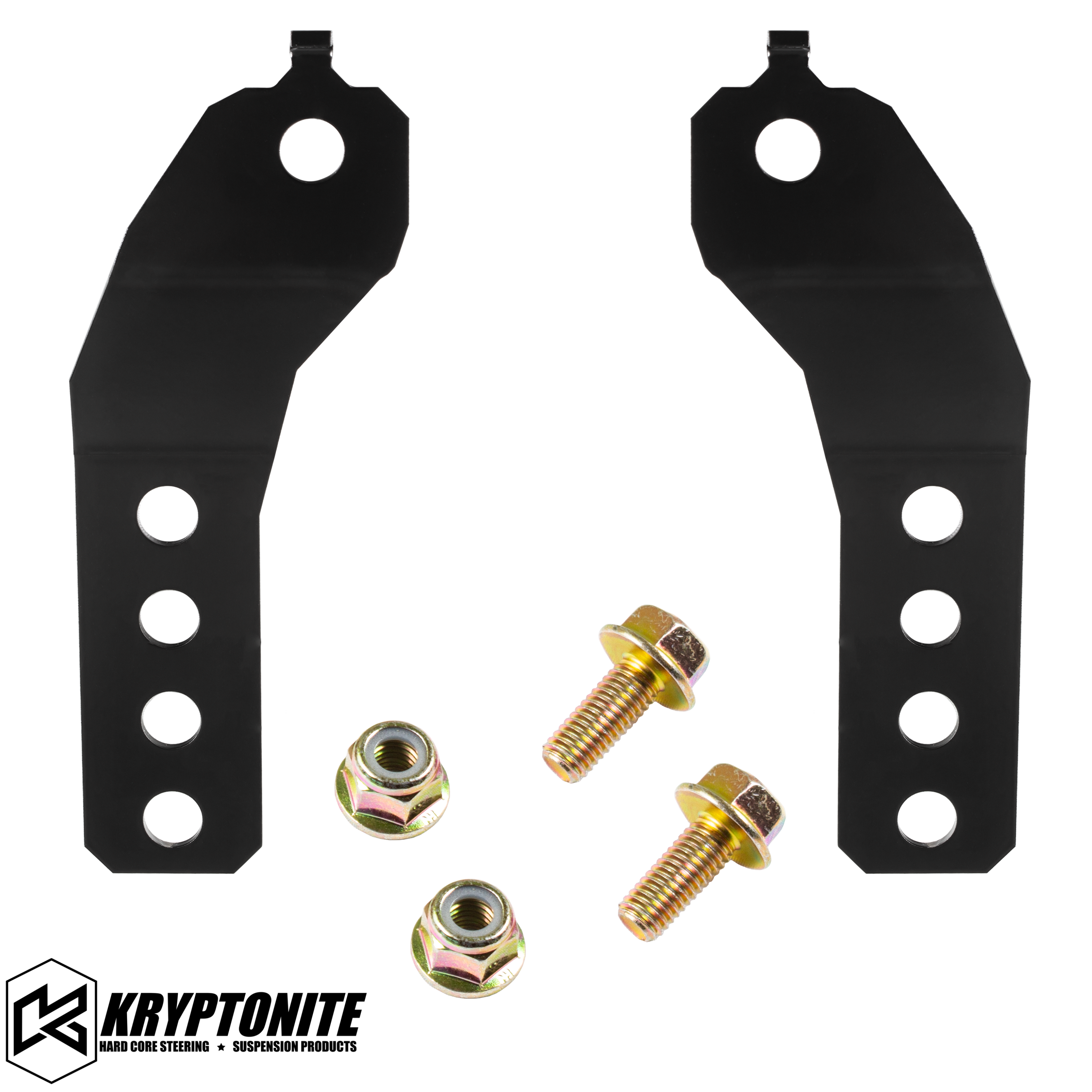

- Brake Line Drop Bracket Kit - KRFB17
Description
Our new 4.5”/5.5” Suspension System is just what you need if you're looking for a comprehensive upgrade to your 2017-2024 F250/F350 Truck! This complete kit includes everything you need to give the front of your truck an extra 4.5"/5.5" ride height increase while maintaining adequate droop travel for a premium ride quality. We kept alignment adjustability in mind with the design of this kit. Our radius arms provide up to 6° of additional caster adjustment.
Tire Fitment
We have test fit this with 37" tires in a few different configurations. The most popular ZERO TRIM combination is a 37"x13.5" BFG KM3 Tire on a 20"x10" -25mm offset, equating to 4.5" backspace. The KM3 has an aggressive tread pattern and fairly chunky sidewall which landed close to the radius arm. Any tire less aggressive than the KM3 will fit with room to spare. If you stick with a 37"x12.5" just about any type of tire will do, and your wheel options open up a bit. If you're keeping the OEM 20” wheels with 5.5" of backspacing, you can squeak by a 37"x12.5" with some minor trimming. If you want to make a 37"x13.5" work, break out the cutting wheel.
4.5" vs 5.5" Explained
You may notice our lift is listed as 4.5"/5.5", depending on the year. The answer is quite simple, the 2020 and later Ford Super Duty trucks sat 1" lower from the factory than its predecessors. This means the same 4.5" lift coil on a 2005-2019 Super Duty will provide 5.5" of lift on the 2020+ Super Duty. No other parts changed, the truck just started out lower than before. The only time this is not true is for the 2020+ Super Duty TREMOR, these come from the factory with a 2" lift/level, and makes them 1" taller than a stock height 2005-2019. Using our 4.5"/5.5" spring will lift the front of a 2020+ TREMOR 3.5".
(Kryptonite No Fine Print Lifetime Warranty) - Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.
Your Kryptonite products must be purchased from an authorized dealer, and must complete Warranty Registration within 90 days of purchase. Complete Warranty details can be found here.
