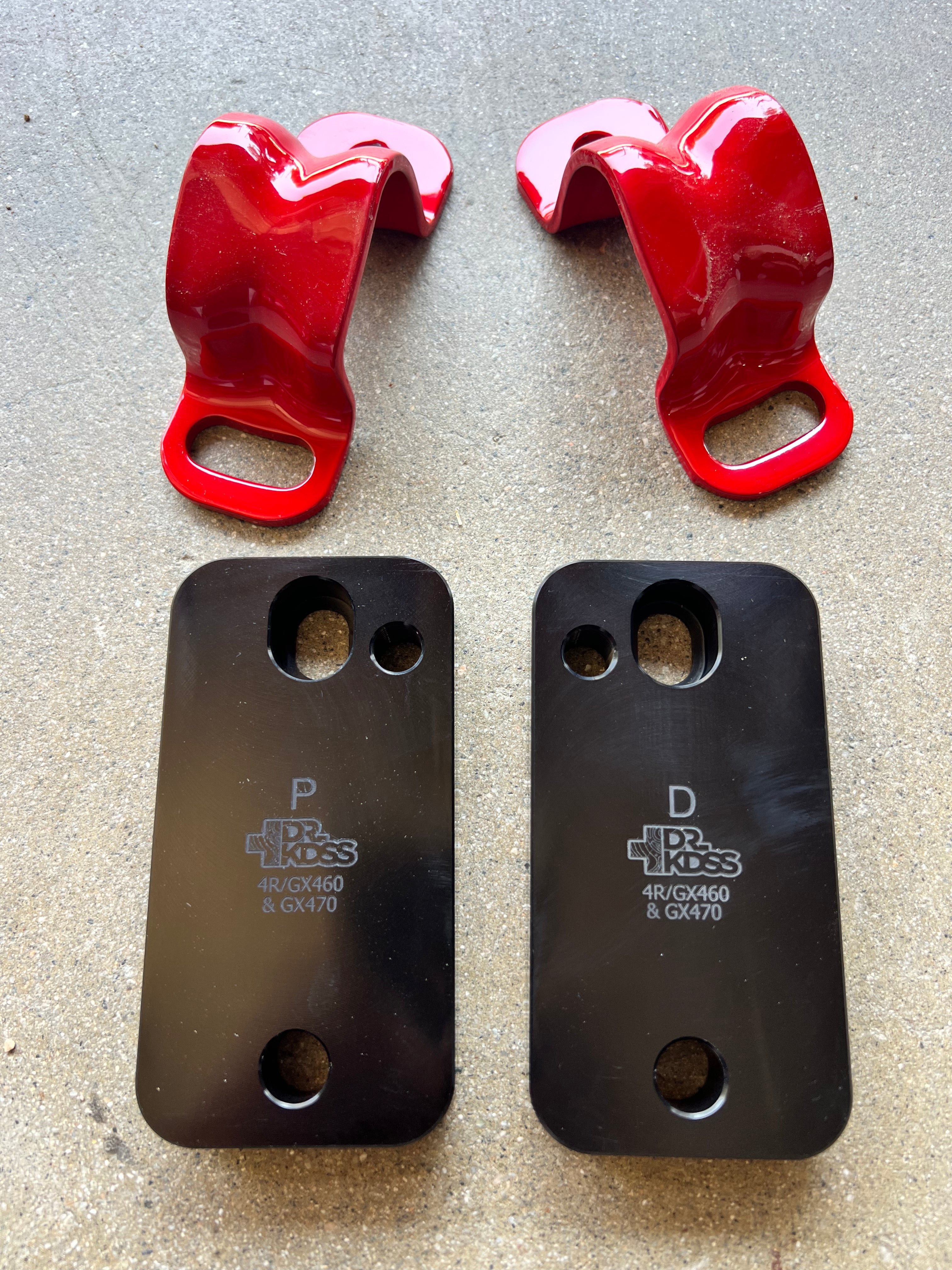

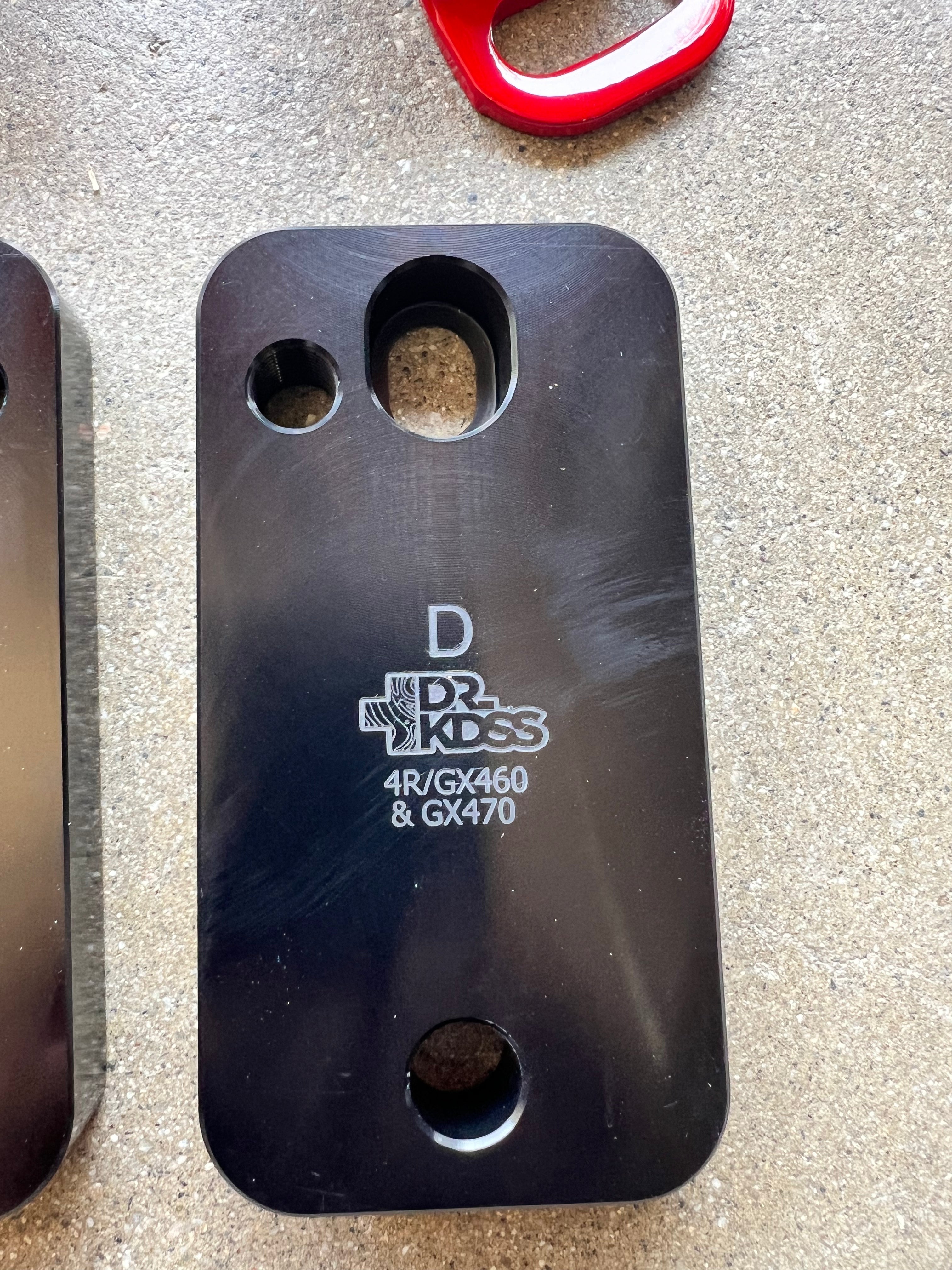

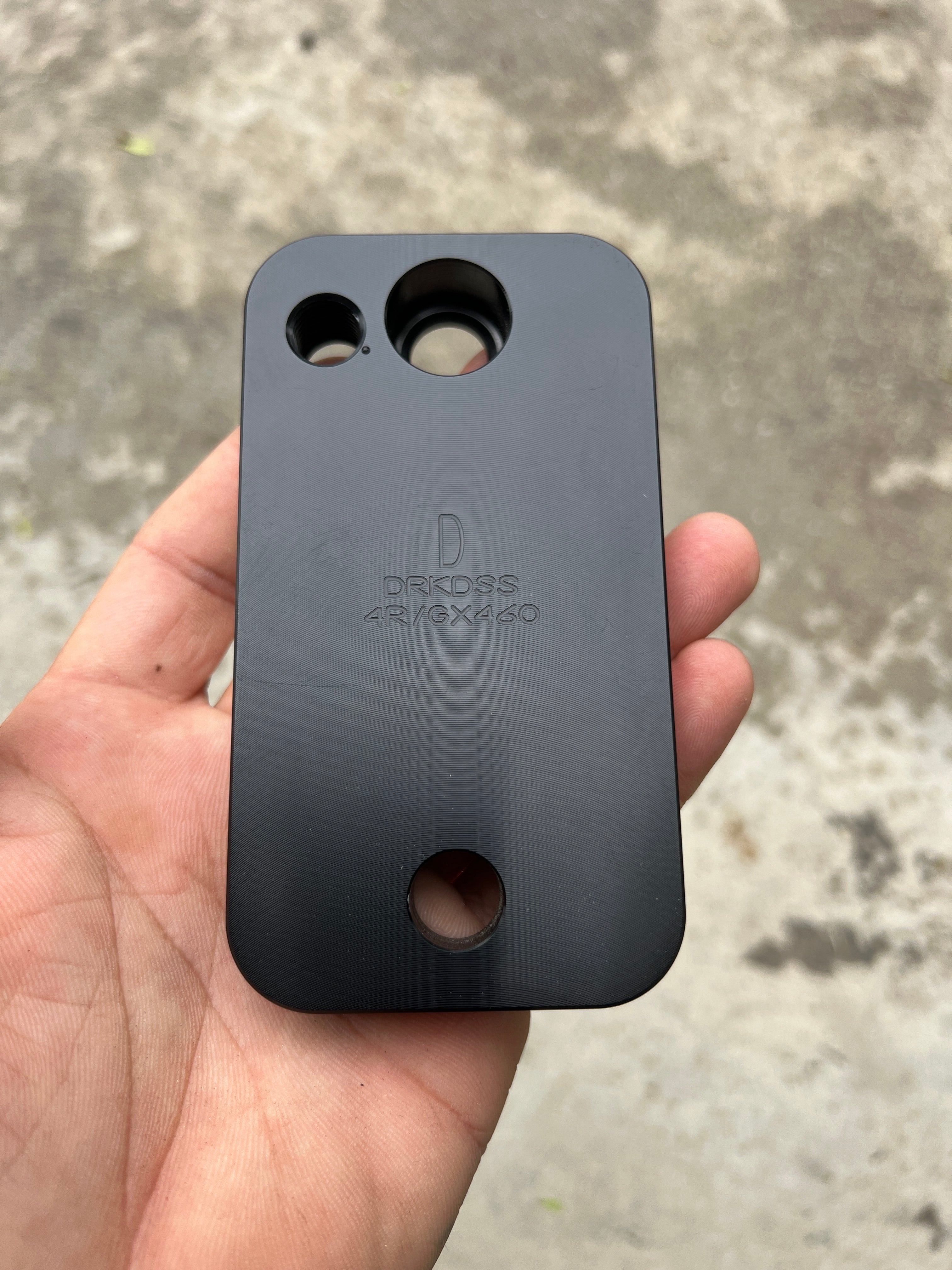

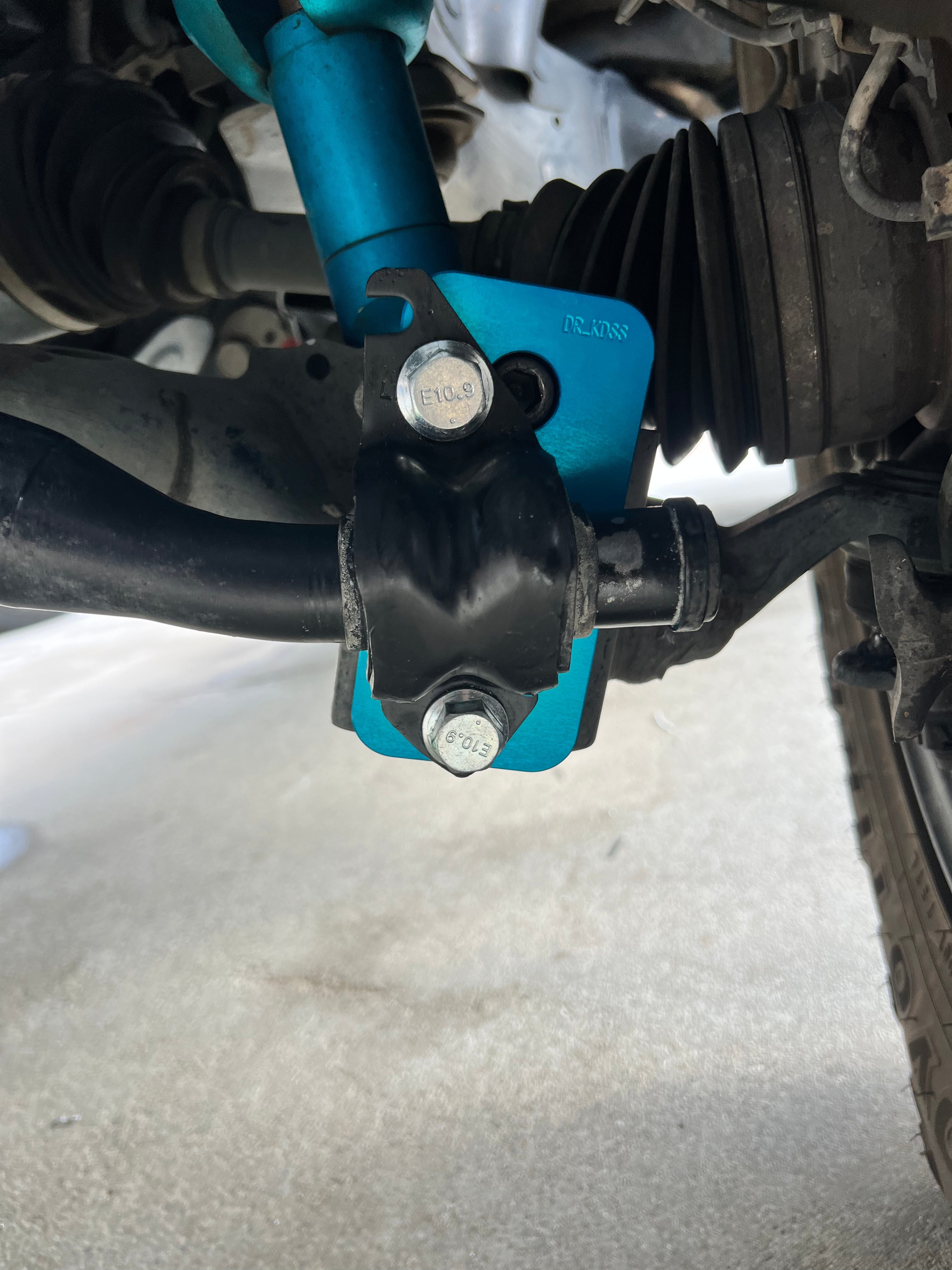

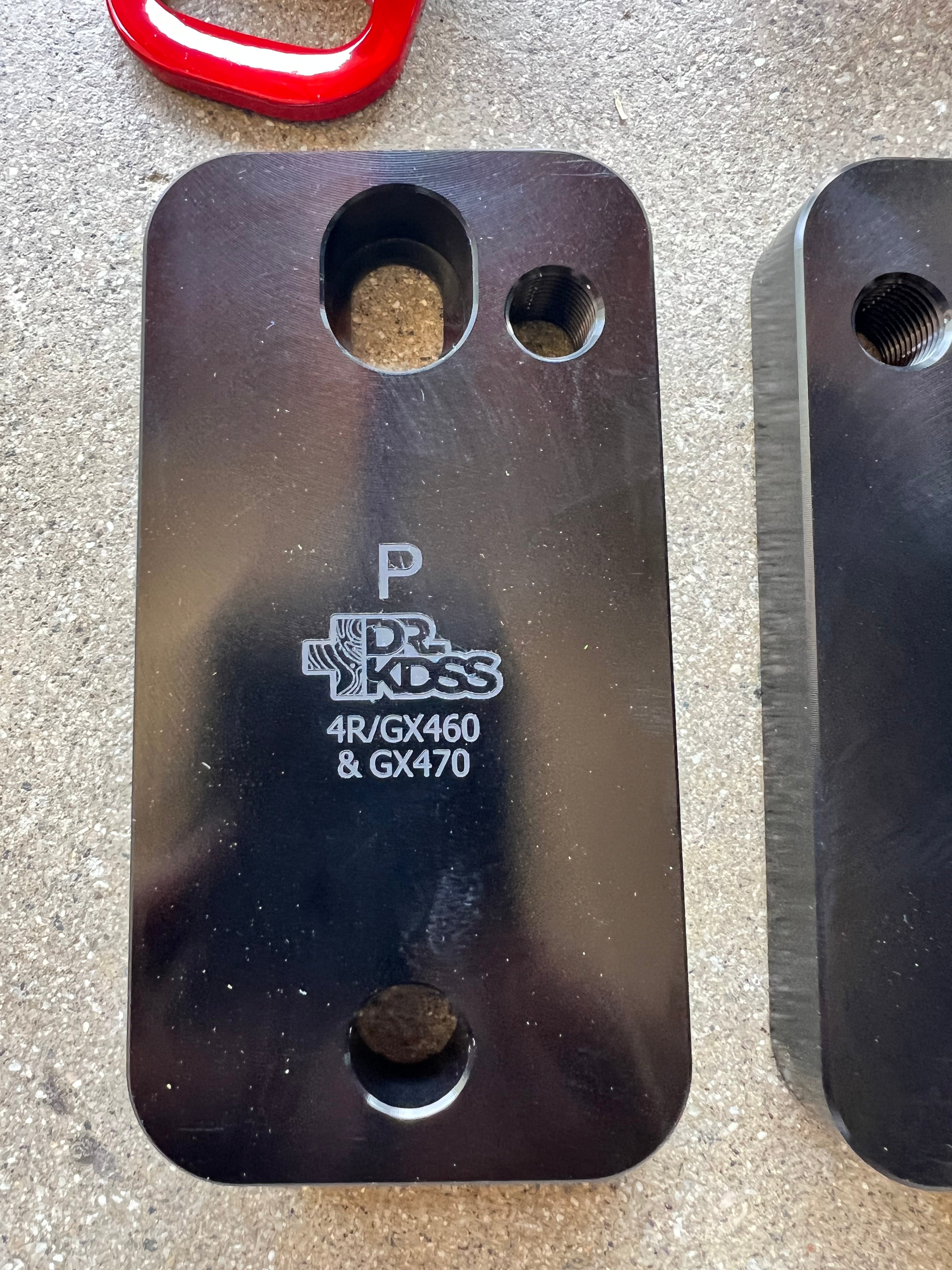

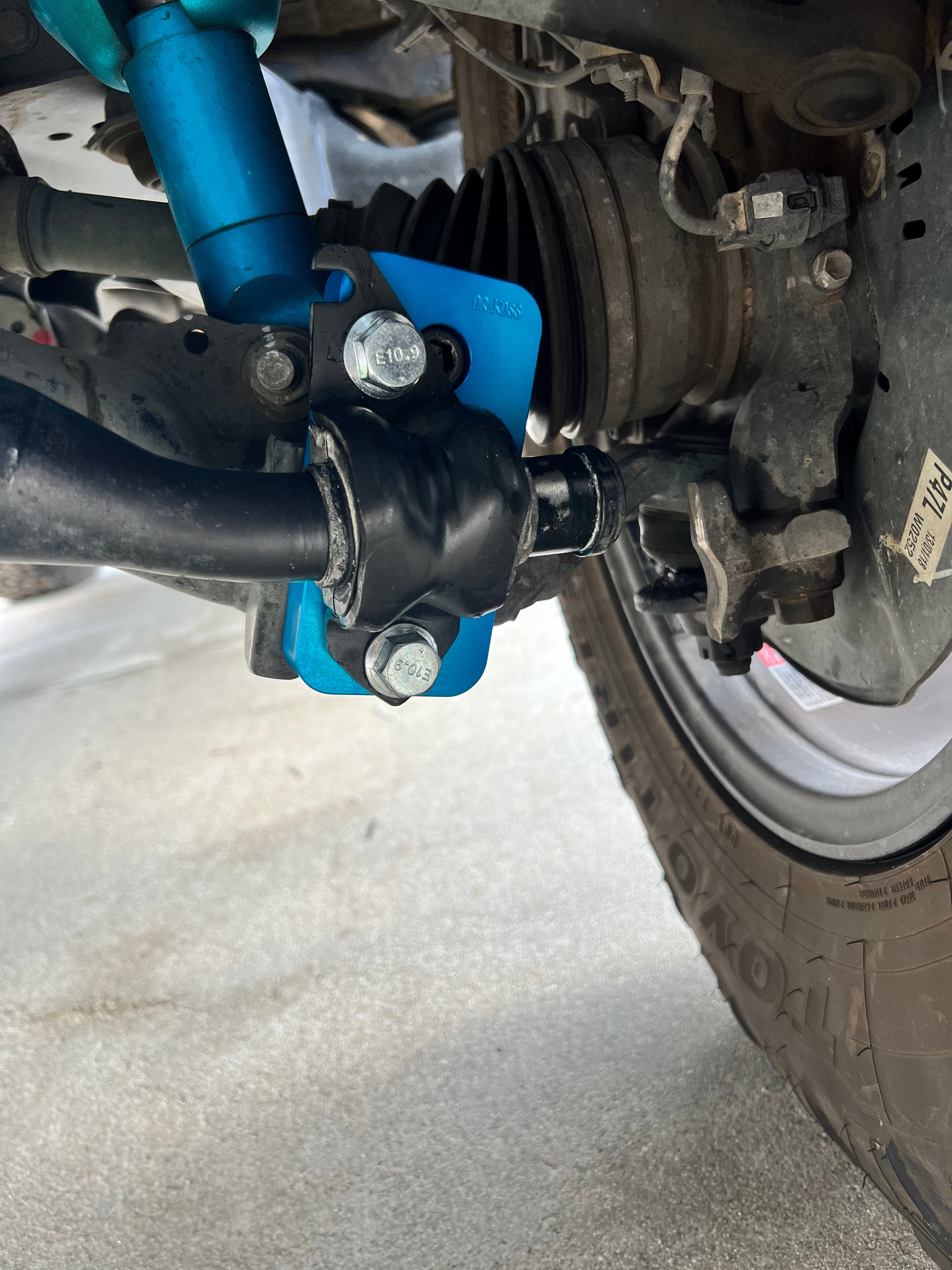

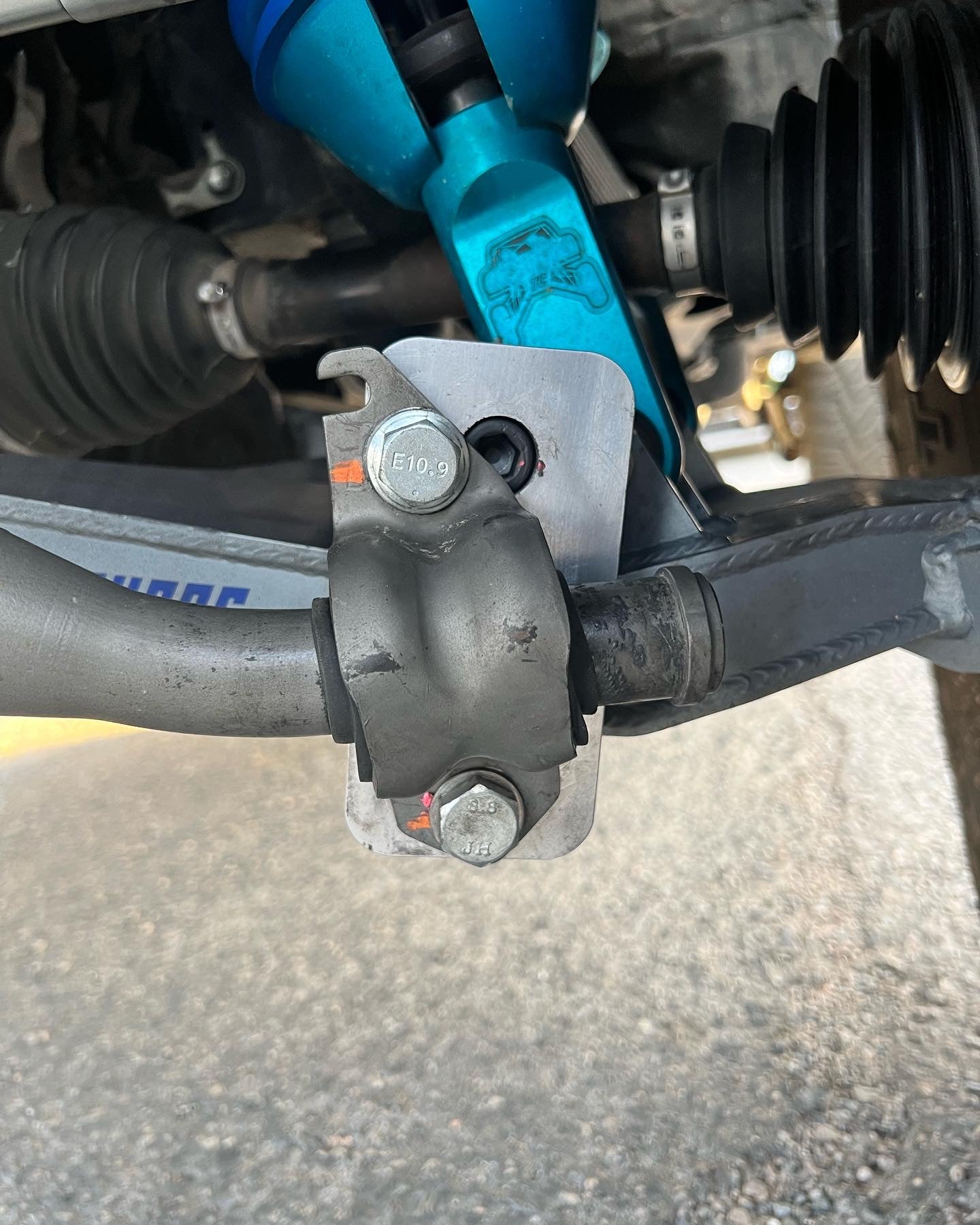

KDSS front sway bar end adapters

Fits: 2010+ 4Runner / GX460 / Prado 150 / GX470 (with KDSS)

What It Does

• Corrects improper bushing angles caused by front suspension lifts. Optimized for 2–3"+ of lift, where bushing bind typically begins around the 2" mark.


• Keeps your sway bar up high and out of harm’s way — no more drop spacers.


• Frees up the KDSS system to cycle correctly for full droop and better articulation.


• Extends bushing life and prevents premature KDSS strut failure.

• Allows more travel if you have a shock that allows more travel


• Made from 7075 aircraft-grade billet aluminum — not 6061 like cheap knockoffs.

• We recommended combining this with our KDSS bushing brackets


• DO NOT USE THESE IN CONJUNCTION WITH KDSS FRONT DROP SPACER.  ITS ONE OR THE OTHER.  WE OBVIOUSLY RECOMMEND THE ADAPTERS!

Why You Need It

• Lifted KDSS rigs get a bad front bushing angle. That binding kills your bushings and can even cause metal-on-metal contact.

• These adapters fix that geometry so the sway bar cycles clean, the bushings last, and you get smoother suspension travel.

• If you’re running extended or long-travel shocks (Total Chaos +2, etc.), this mod is almost mandatory.

Design & Strength

• The original DRKDSS KDSS adapter — not a copy.


• CNC-machined from 7075 billet aluminum for maximum strength and lightweight durability.


• V2 = 3 mounting holes for adjustability.


• V3 = same strength, now supports GX470 compatibility.


• Anodized in black for superior corrosion protection.


• Sold in pairs (driver + passenger).


Install Notes

• GX470 users: must install with DRKDSS Bushing Brackets.


• If not using them, you’ll need to modify OEM bracket hooks and holes.


• Cannot be used with KDSS drop spacers.


• Both push the sway bar forward, causing frame/skid interference.


• Designed for stock KDSS mounts on lower control arms.


• Great around 2”+ lifts with bad bushing angle. Pairs great with our KDSS Bushing Bracket

• Easy install with hand tools.

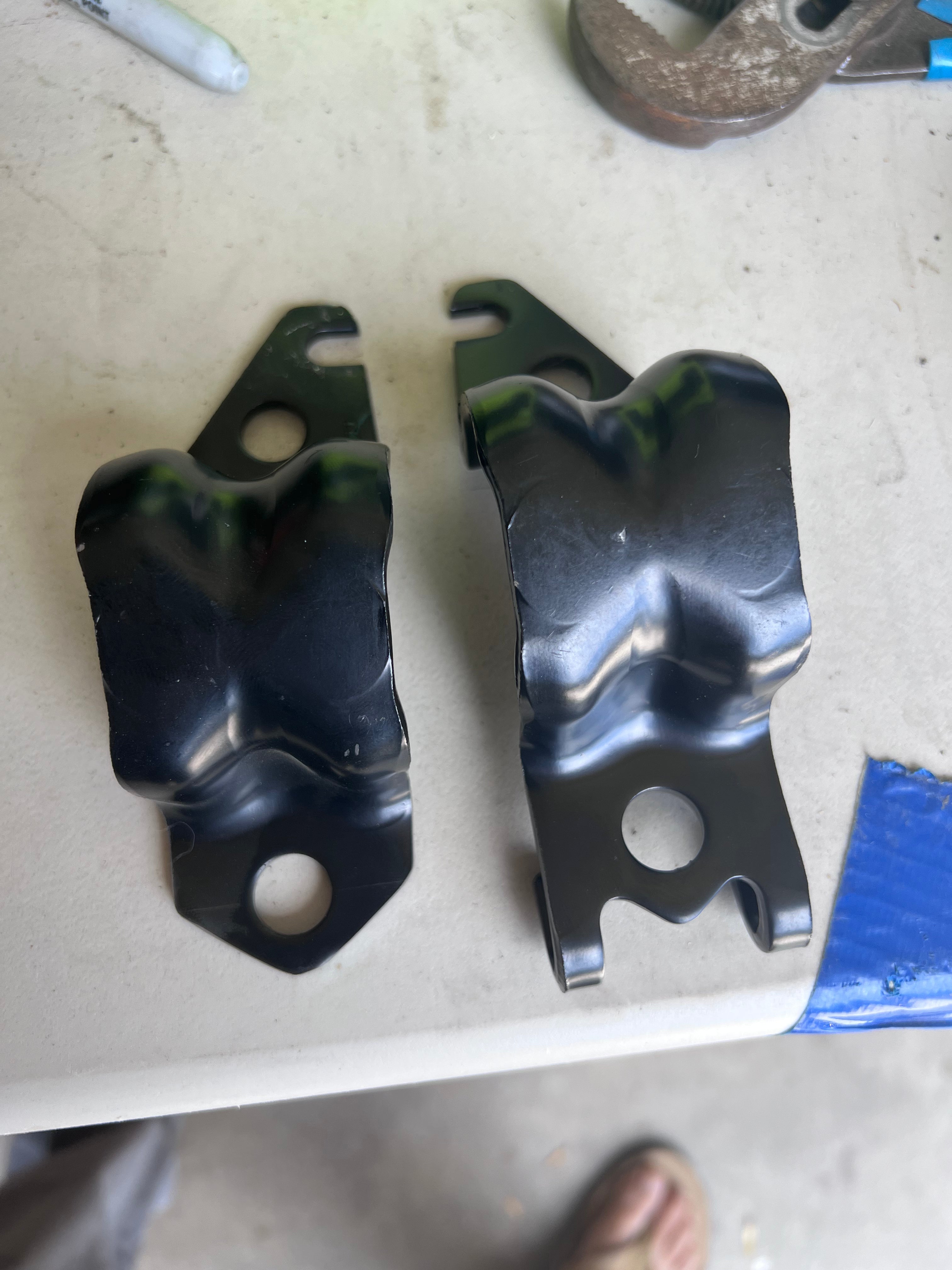

• Factory bushing bracket bottom hooks must be cut off.


Benefits

✅ Keeps sway bar high and safe from rocks/skids.
✅ Eliminates sway bar bind and bushing wear.
✅ Restores full KDSS motion — better droop, smoother cycling.
✅ Prevents premature KDSS strut failure.
✅ Makes bushing swaps and maintenance easier.
✅ Lightens sway bar spring rate slightly for a more natural feel.
✅ Creates a stronger floor jack point.
⚠️ Wide wheels (9”+) may rub the bushing bracket at full lock.

Material Notes

• Made from 7075 billet aluminum — same grade used in race trucks.


• Precision-machined and anodized black for a clean, tough finish.


• If it doesn’t say 7075, it’s not the real deal.


What’s Included

• (2) KDSS adapters (driver & passenger)


• (2) M12 × 1.25 × 40 mm flange bolts


• (2) M12 × 1.25 × 20 mm flange bolts


• (2) M12 × 1.25 × 25 mm cap bolts


Real Talk

• The OG KDSS adapter — don’t get fooled by knockoffs.


• GX470 must use DRKDSS Bushing Brackets or expect cutting and drilling.


• No drop spacers! These adapters replace that setup entirely.


• Know what you’re buying — 20% restock fee applies.


• Built for people who actually drive their rigs, not show them off.

• SMALL CASE/VERY SMALL CHANCE THAT YOUR WHEELS CAN BE TOO WIDE OR OFFSET WITH LARGE NEGATIVE OFFSET CAN MAKE THE WHEELS JUST CONTACT THE WHEEL BEFORE FULL LOCK.  Please make sure you have  0.60” clearance from oem bushing bracket at full lock.
