ICON 2024-2025 Lexus GX550, 1.25-3" Lift, Stage 9 Suspension System, CDCV, Tubular

Have Questions?

+1 702-333-0868, M-F 9-6 PST

ICON Vehicle Dynamics

|
SKU: K53359T

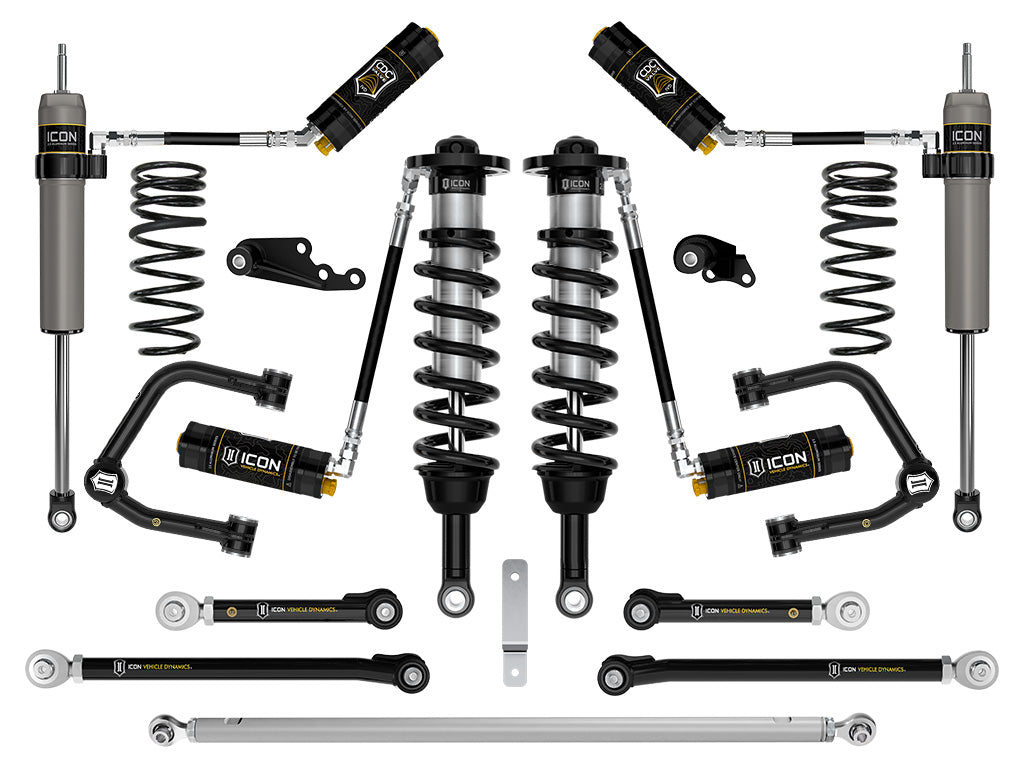

ICON 2024-2025 Lexus GX550, 1.25-3" Lift, Stage 9 Suspension System, CDCV, Tubular

Sale price$7,228.29
Pickup available at 4301 S Valley View Blvd Unit 19 Usually ready in 2-4 days

ICON 2024-2025 Lexus GX550, 1.25-3" Lift, Stage 9 Suspension System, CDCV, Tubular

4301 S Valley View Blvd Unit 19

Pickup available, usually ready in 2-4 days

4301 South Valley View Boulevard
Unit 19
Las Vegas NV 89103
United States

+17023330868

Have Questions?

+1 702-333-0868, M-F 9-6 PST
ICON Vehicle Dynamics 2024-2025 Lexus GX550 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Standard

+0.75" Lift over stock

Rate Option #1
