Dirt King

|
SKU: DK-812923B-GD

Billet Upper Control Arms

Sale price$1,449.00

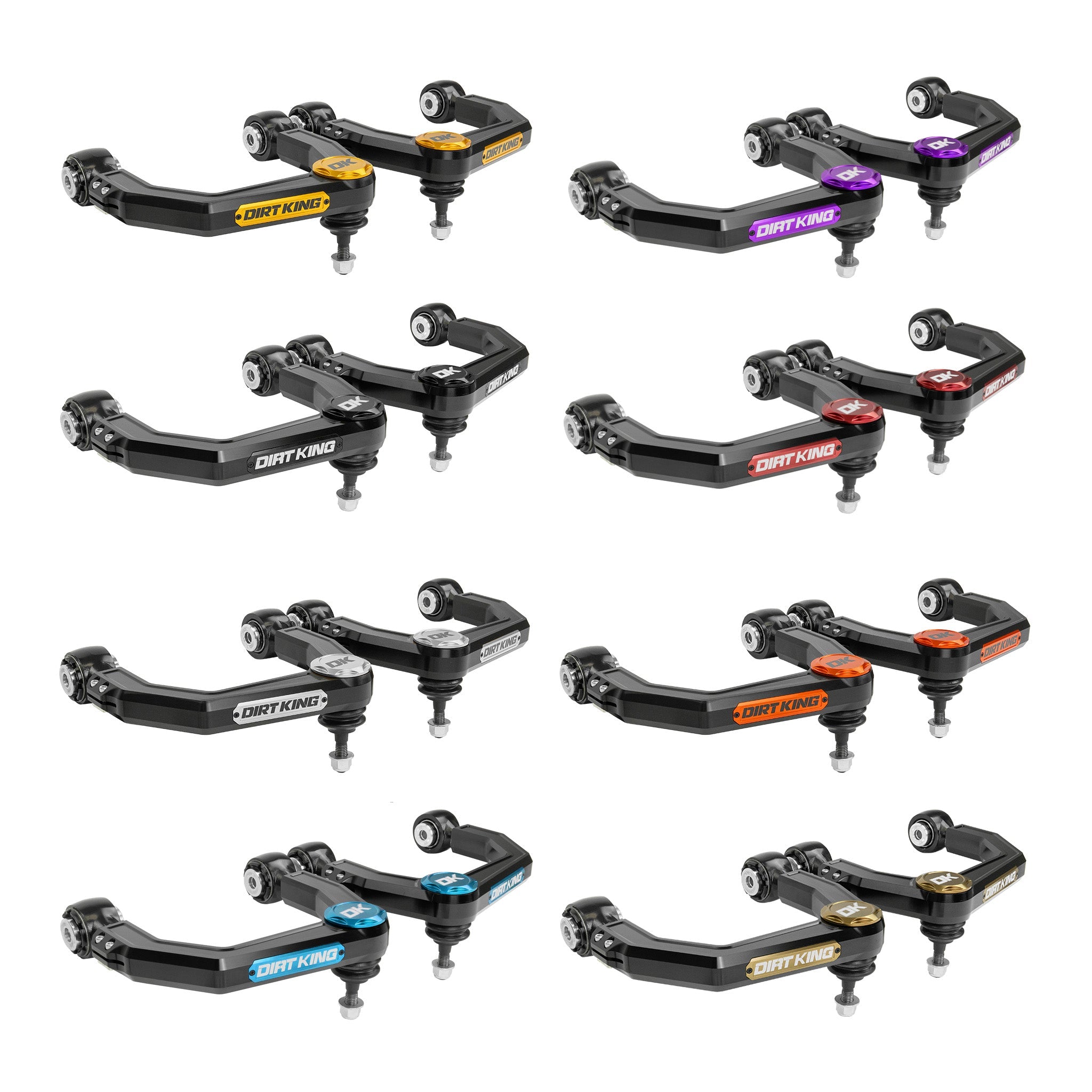

Control Arm Color:

Control Arm Color

Badge & Cap Color:

Badge & Cap Color

Have Questions?

+1 702-333-0868, M-F 9-6 PST

 Description

The Dirt King Billet Upper Control Arms are precision-machined from 6061 aluminum, offering exceptional strength and a refined appearance. Designed to optimize suspension geometry, these arms allow for increased front lift and suspension travel when paired with Dirt King shocks. Factory control arms often compromise geometry and structural integrity due to excessive articulation at stock joints, but Dirt King arms solve this with improved caster settings and re-engineered pivot angles for better handling and articulation.

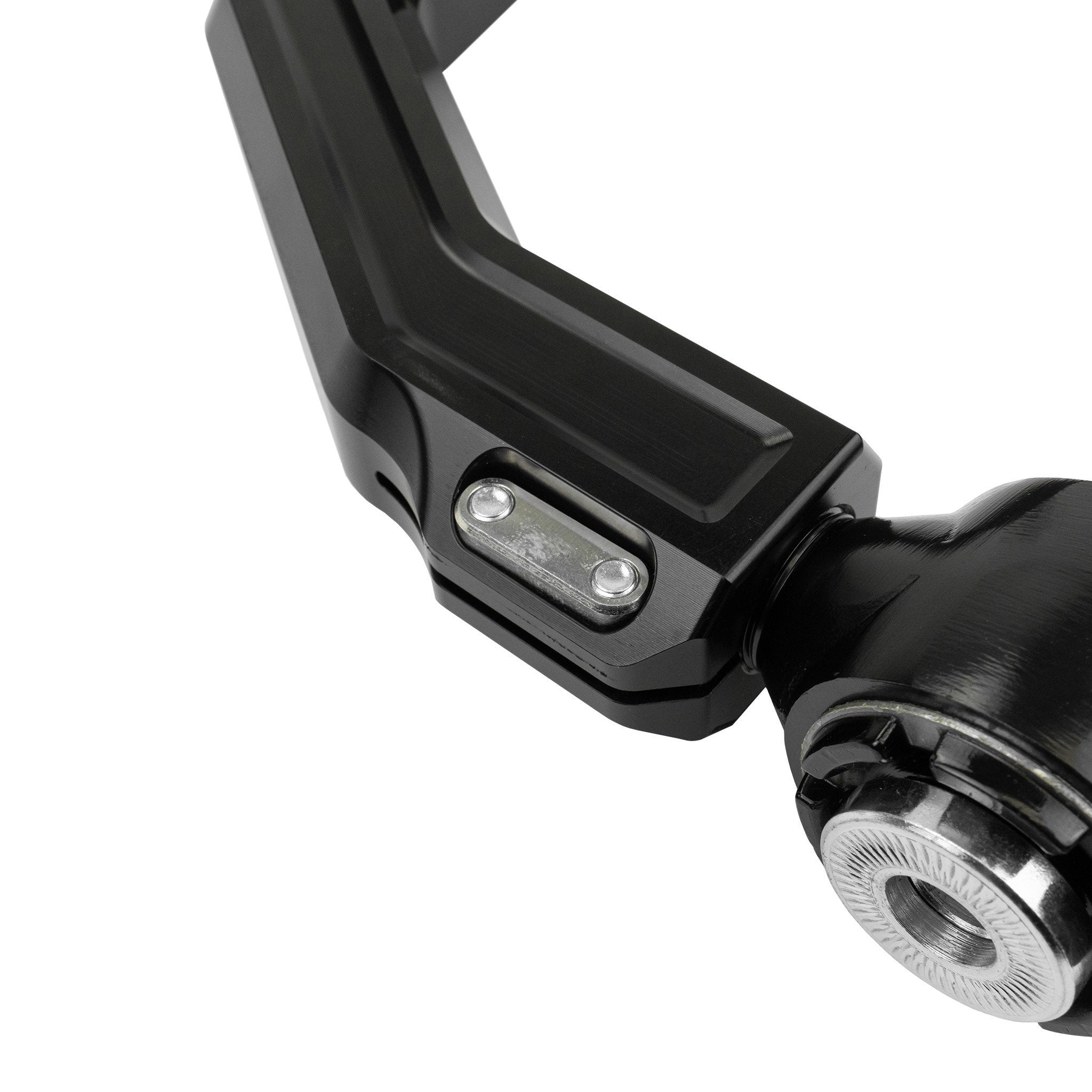

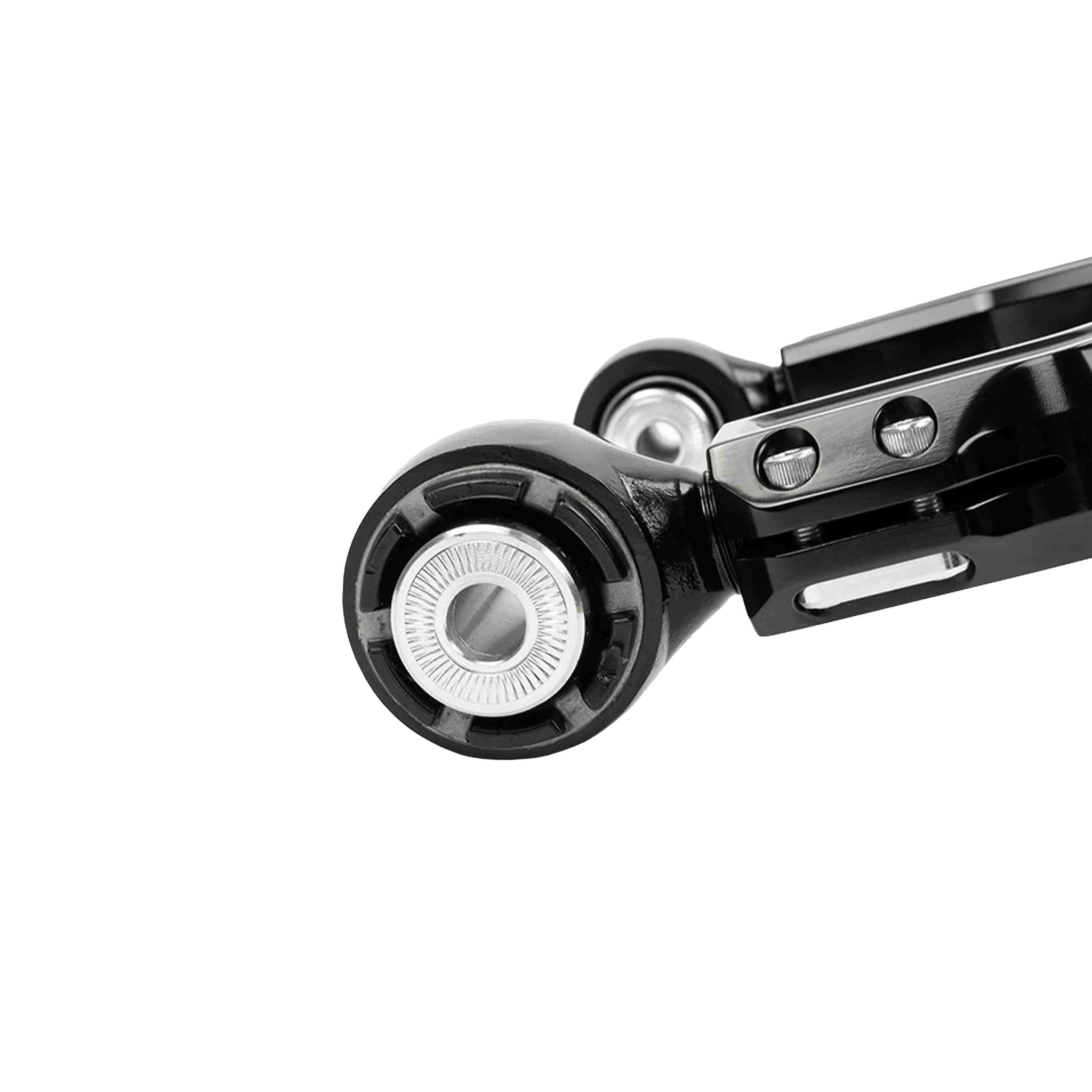

A key feature of the billet arms is the adjustable inner pivot system. The maintenance-free Probearing SilentSpin bushings provide superior ride comfort, with a polyurethane outer layer that dampens road noise and a self-lubricating composite core for smooth, quiet operation. The bushings are optimal for on-road and off-road performance, delivering excellent handling with no compromises.

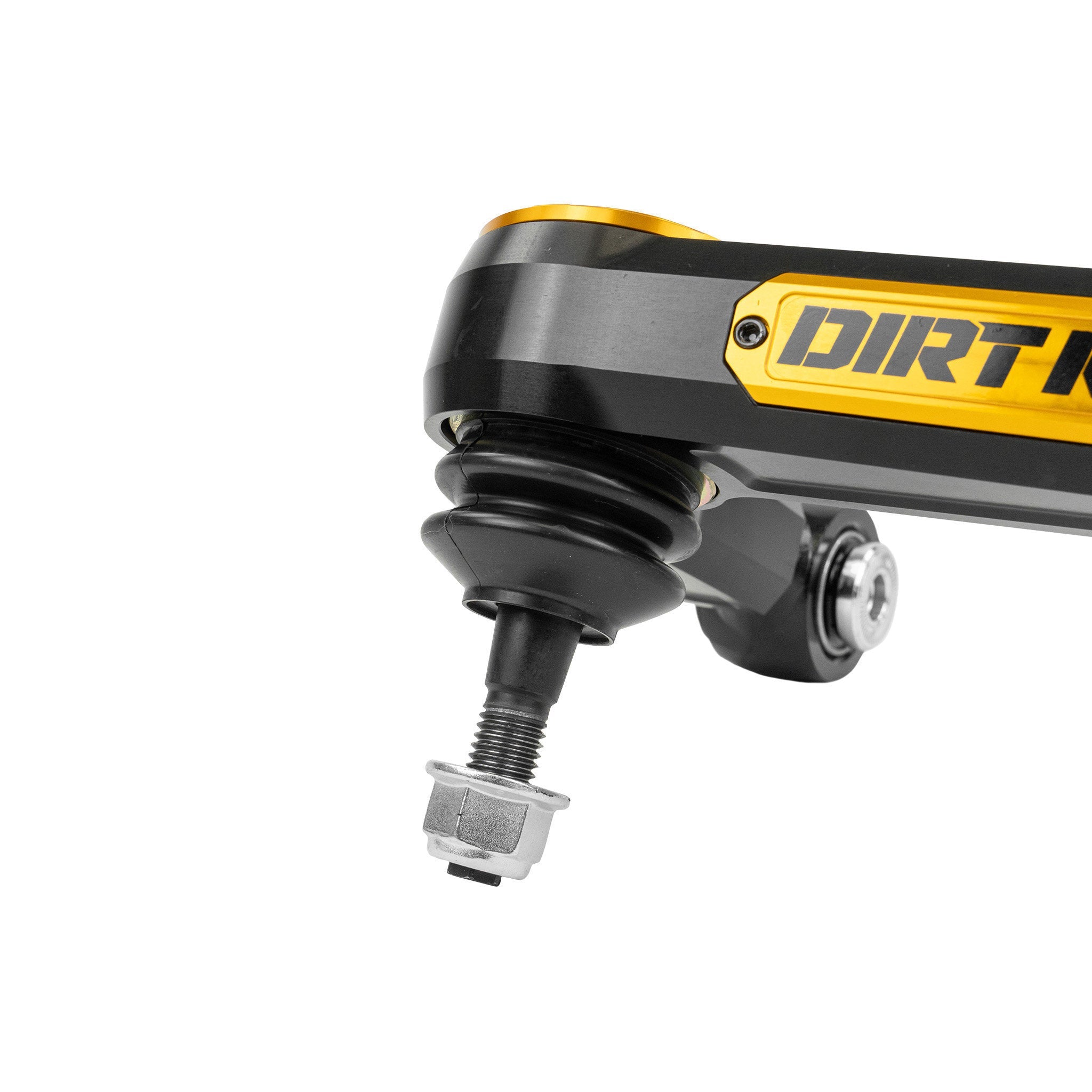

Billet UCAs are equipped with heavy-duty Probearing ball joints for long-lasting durability in harsh environments. These billet upper control arms are built for lasting performance and easy installation, making them an excellent upgrade for any vehicle.

 Specifications

  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
  • Control Arm Material: 6061 aluminum
  • Bushings: Probearing SilentSpin (maintenance-free, self-lubricating)
  • Ball Joints: Heavy-duty Probearing
  • Camber/Caster Adjustability: Yes
  • Rebuildable: Yes (all components are fully rebuildable or replaceable)
  • Warranty: Limited lifetime warranty on arms, 1-year warranty on ball joints and bushings

Wheel Travel / Lift

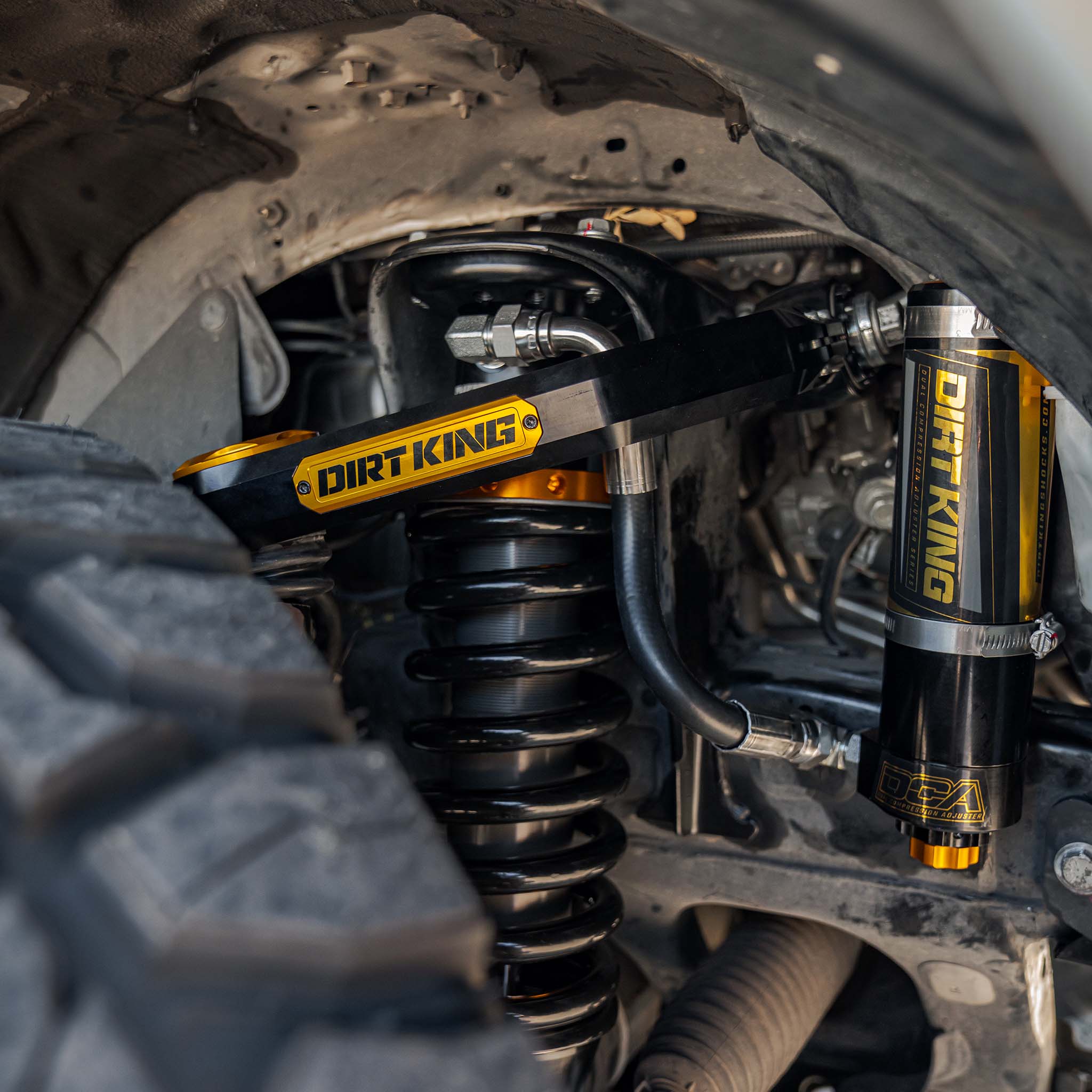

The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer maximum down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

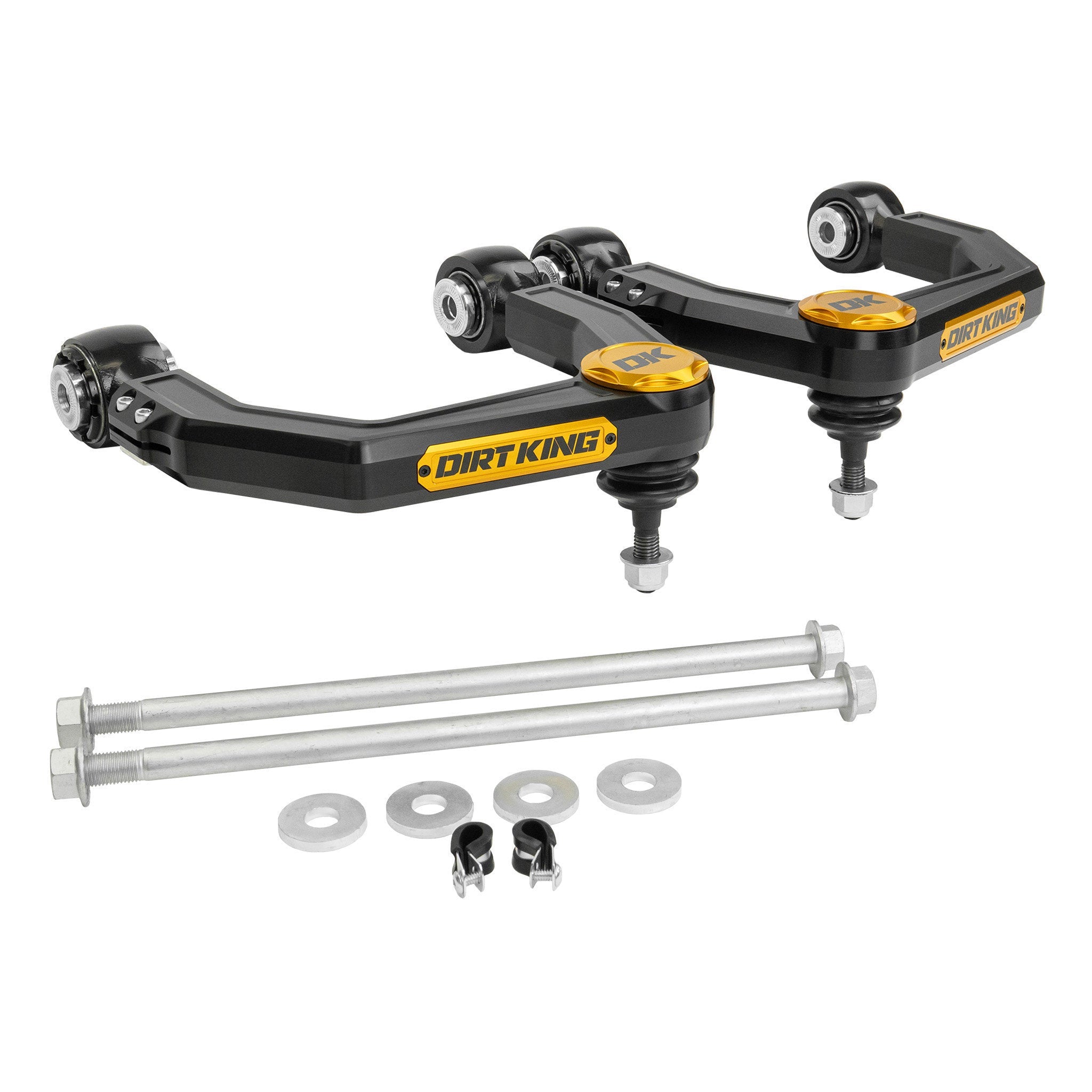

 What's Included

  • 2 Billet upper control arms (left and right)
  • Heavy-duty Probearing ball joints (pre-installed)
  • Upper control arm bolts
  • Ball joint caps
  • Dirt King sticker pack

  Features

  • CAD designed
  • Precision-machined from 6061 aluminum for strength and durability
  • Improved caster settings for enhanced handling
  • Re-engineered pivot angles for increased articulation
  • Adjustable inner pivot system for camber and caster adjustments
  • Maintenance-free SilentSpin bushings for smooth, quiet operation
  • Heavy-duty Probearing ball joints for long-lasting durability
  • Fully rebuildable and replaceable components for easy maintenance
  • Compatible with Dirt King shocks for increased lift and suspension travel

  Instructions

  Compatibility

2003-2024 Toyota 4Runner 2WD / 4WD
2007-2014 Toyota FJ Cruiser


*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
