- Provides a little over 3" additional width per side
- Optional secondary bypass shock available (shocks sold separately)
- 0-3" of adjustable lift (dependent on compatible shocks)
- Compatible with 2022+ ZR2 and AT4 models
- Extended Axle shafts are design to work with OE CV Part #85587221, if truck was not originally equipped with part #85587221 they will need to be sourced from your local Dealer
Description
The all new 2019 Silverado is the best offroad platform yet! Our Baja Kits Pre-runner Suspension Kit significantly improves offroad performance in the dirt while retaining excellent on-road handling and comfort with optional sway bar mount. The kit is a direct bolt-on to your 4WD Chevy Silverado and uses a readily available bolt in shock that is on the shelf at all dealers and install shops world wide. Engineered to be a complete bolt on long travel travel suspension system, it uses Trophy Truck grade uni-balls and hardware on both the Upper and Lower arms. Heavy duty fabricated steel arms handle the abuse while King coil-over shocks with remote reservoirs and compression adjusters for precise tuning handle suspension damping. bypass shock option also coming soon. (Rear kits available too).
The Baja Kits Advantage:
- CAD designed boxed UCA
- Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durability and a quiet, no squeak ride
- 1" Hi angle Trophy Truck grade uni-ball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
- Easy Install, NO welding, able to be put back to stock.
Technical Specs:
Track Width - Over 3" wider per side (6" wider total)
Lift - 3 - 4"
Product Requirements:
- Shocks - After market bolt in 2.5 or 3.0 shocks (King or Fox)
- Tire Size - 35" or 37"
- Wheel Size - 17" rim with 4.75" max backspacing
- Fenders - Fiberglass fenders Recommended
- Sway Bar Links - BJK1108001 is needed to reuse your factory Sway Bar
Stage 1:
- Aftermarket Shock
- Stock Fenders w/minor trimming
- 35 inch Tires
Stage 2:
- Aftermarket Shock
- Fiberglass fenders
- 37 inch tires
Stage 3:
- Aftermarket Shock & 3.0 bypass
- Fiberglass fenders
- 37 inch tires
**ATTENTION** Fiberglass Fenders are recommended. Using Stock fenders is at your own discretion

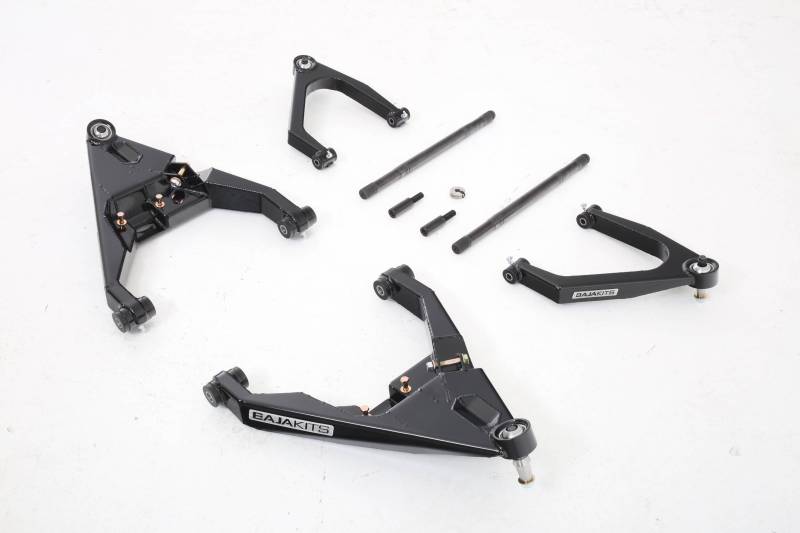

Parts Included:

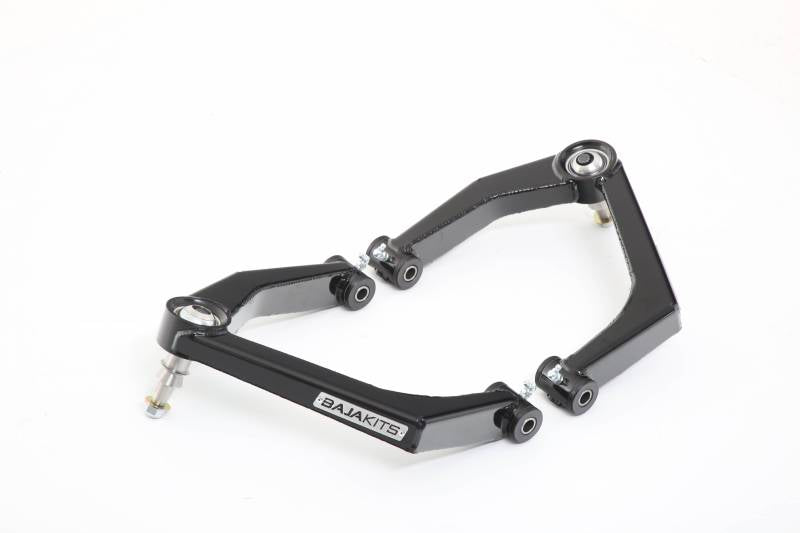

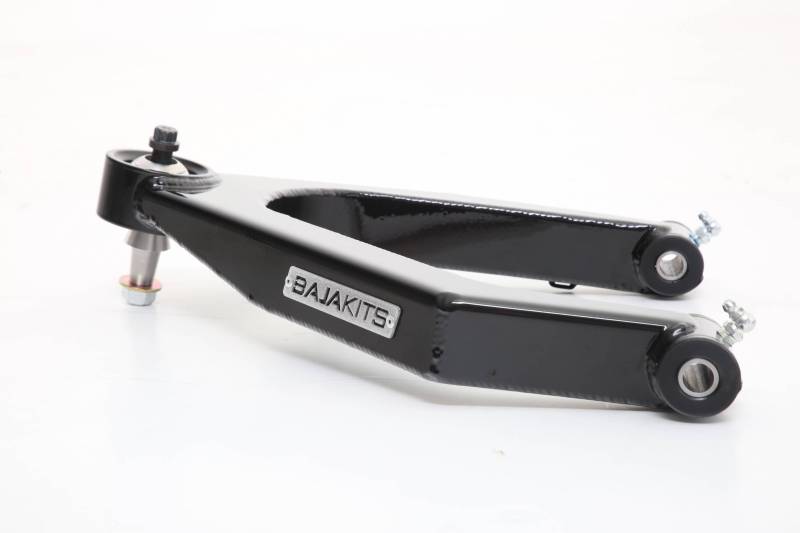

Boxed Upper Arms:
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" uni-balls
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters

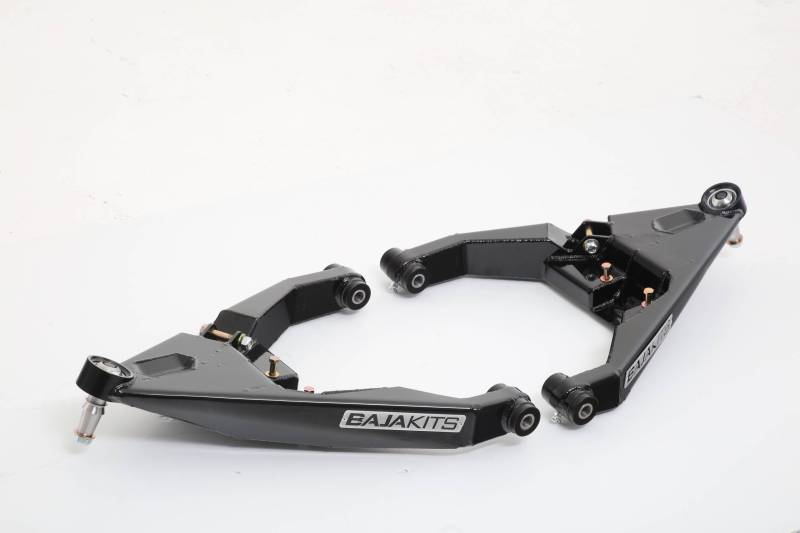

Boxed Lower Arms :
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" Uni-balls
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters
Additional Items :
- CNC Steel Steering Extensions
- Install Guide
- Baja Kits Sticker pack
- Extended Axles, high strength steel & Heat Treated
Install Information:
- Level 2 Install, Bolt on with drilling &/or minimal grinding
- Install Time: 8 hours (Times will vary depending on knowledge and skill level)
