- Bolt-In Install: No cutting or welding needed (unless using OE axle).
- Extreme Durability: Built from premium aluminum for strength.
- Enhanced Off-Road Performance: 6 inch wider track, 15.5" travel.
- Race-Proven Shocks: Fox 3.0 IBP Coil-overs with DSC for top performance.
- Custom Axle Options: Choose Dana 60 or modify OE axle.
Specs and Features
True Bolt-In Design
- Installation Type: 100% Bolt-In
- Modification Requirements: Welding is needed when using OE axle.
Enhanced Track Width and Travel
- Track Width Increase: 6 inches
- Front Wheel Travel: 14.5 inches of usable travel
- Rear Wheel Travel: 15.5 inches of usable travel
High-Performance Shocks
- Shocks: Fox 3.0 IBP Factory Race Coil Over Shocks with Dual Speed Compression (DSC)
- Bump Stops: Fox 2.0 IFP
- Steering Stabilizer: Custom-designed to absorb impacts
Premium Materials
- Upper Control Arms: Machined from 6061-T6 aluminum
- Rear Lower Trailing Arms: Crafted from a single piece of 7075-T6 aluminum
Customizable Rear Axle Options
- Option 1: Dana 60 rear axle with 3:73 front differential gears and installation kit
- Option 2: Weld-on brackets to modify the OE axle
RCV CV Shafts
- Design: Engineered to handle increased track width
- Maximum Angle: +/- 35 degrees
Fabricated Lower Control Arms
- Material: Fabricated steel construction
- Installation: Bolts directly into the OE location
HD Steering Knuckle
- Material: HD version of OE steering knuckle
- Strength: Increased robustness for demanding off-road conditions

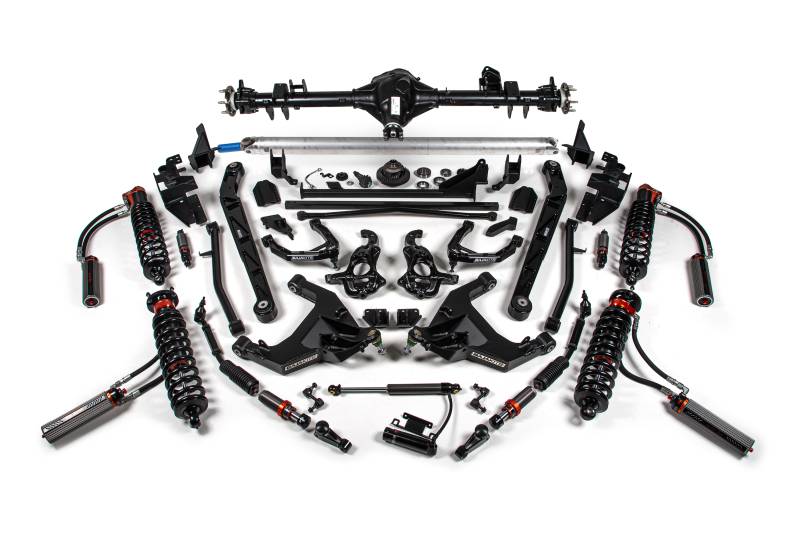

Items for BJK11403FRS (with Dana 60 Ultimate Option)
- Front Box Kit with Bump Stops
- Front Upper Control Arms (UCA)
- Front Lower Control Arm (LCA) - Driver Side (DS)
- Front Lower Control Arm (LCA) - Passenger Side (PS)
- Trailing Arm Mount Box Kit - 1
- Trailing Arm Mount Box Kit - 2
- Rear Upper Control Arm (UCA)
- Rear Trailing Arm
- Rear Axle Components
- Steering Knuckle - Driver Side (DS)
- Steering Knuckle - Passenger Side (PS)
- Dana Ultimate 60 Replacement Rear Axle 3.73 Ratio
- BDS Front Coil-over, Internal Bypass, 8.22”, 3.0 Series, Recirc R/R, DSC, Left
- BDS Front Coil-over, Internal Bypass, 8.22”, 3.0 Series, Recirc R/R, DSC, Right
- BDS Rear Coil-over, Internal Bypass, 11.47”, 3.0 Series, Recirc R/R, DSC, Left
- BDS Rear Coil-over, Internal Bypass, 11.47”, 3.0 Series, Recirc R/R, DSC, Right
- FOX Rear Bump Stop 2.0 Series, IFP, 2.00" Travel, 10.00" EXT
- Bump Stop, Eyelet Ends, 2.0 Series, IFP, 1.30" Travel, 10.19" EXT
- FOX Steering Damper

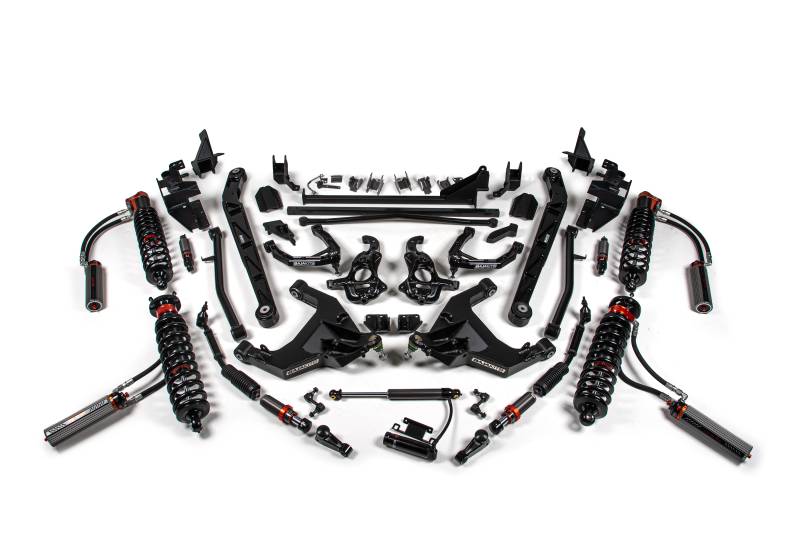

Included items for BJK11404FRS (OE Axle Option)
- Front Box Kit with Bump Stops
- Front Upper Control Arms (UCA)
- Front Lower Control Arm (LCA) - Driver Side (DS)
- Front Lower Control Arm (LCA) - Passenger Side (PS)
- Trailing Arm Mount Box Kit - 1
- Trailing Arm Mount Box Kit - 2
- Rear Upper Control Arm (UCA)
- Rear Trailing Arm
- Steering Knuckle - Driver Side (DS)
- Steering Knuckle - Passenger Side (PS)
- Weld On Rear Axle Components
- BDS Front Coil-over, Internal Bypass, 8.22”, 3.0 Series, Recirc R/R, DSC, Left
- BDS Front Coil-over, Internal Bypass, 8.22”, 3.0 Series, Recirc R/R, DSC, Right
- BDS Rear Coil-over, Internal Bypass, 11.47”, 3.0 Series, Recirc R/R, DSC, Left
- BDS Rear Coil-over, Internal Bypass, 11.47”, 3.0 Series, Recirc R/R, DSC, Right
- FOX Rear Bump Stop 2.0 Series, IFP, 2.00" Travel, 10.00" EXT
- Bump Stop, Eyelet Ends, 2.0 Series, IFP, 1.30" Travel, 10.19" EXT
- FOX Steering Damper
