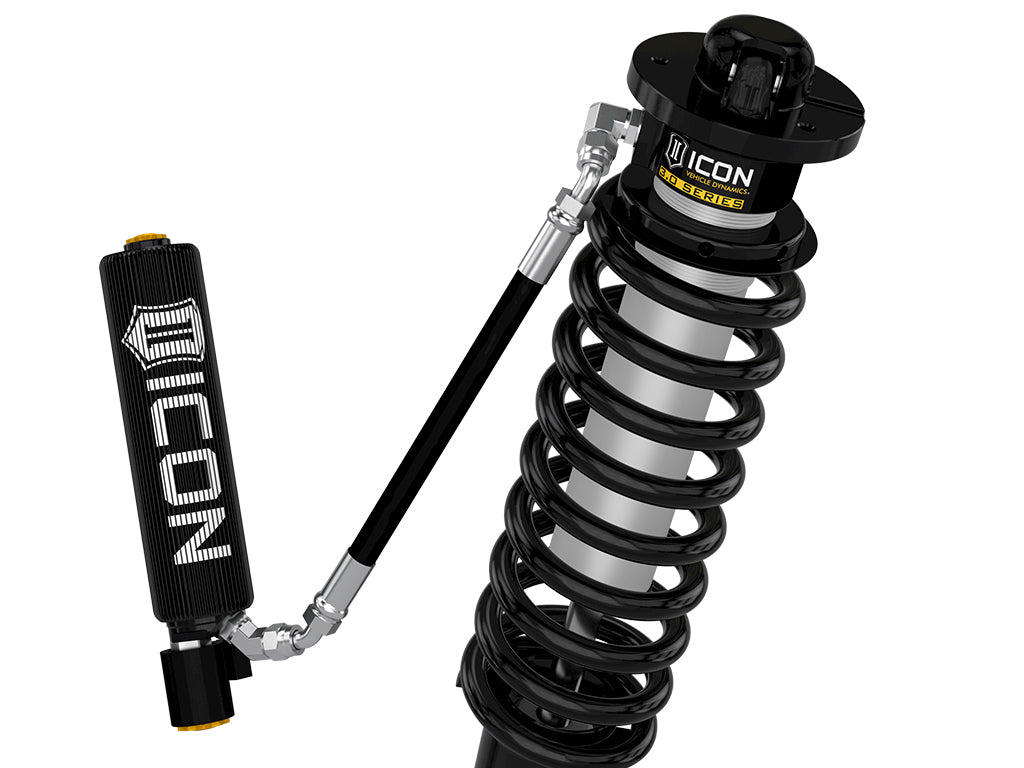

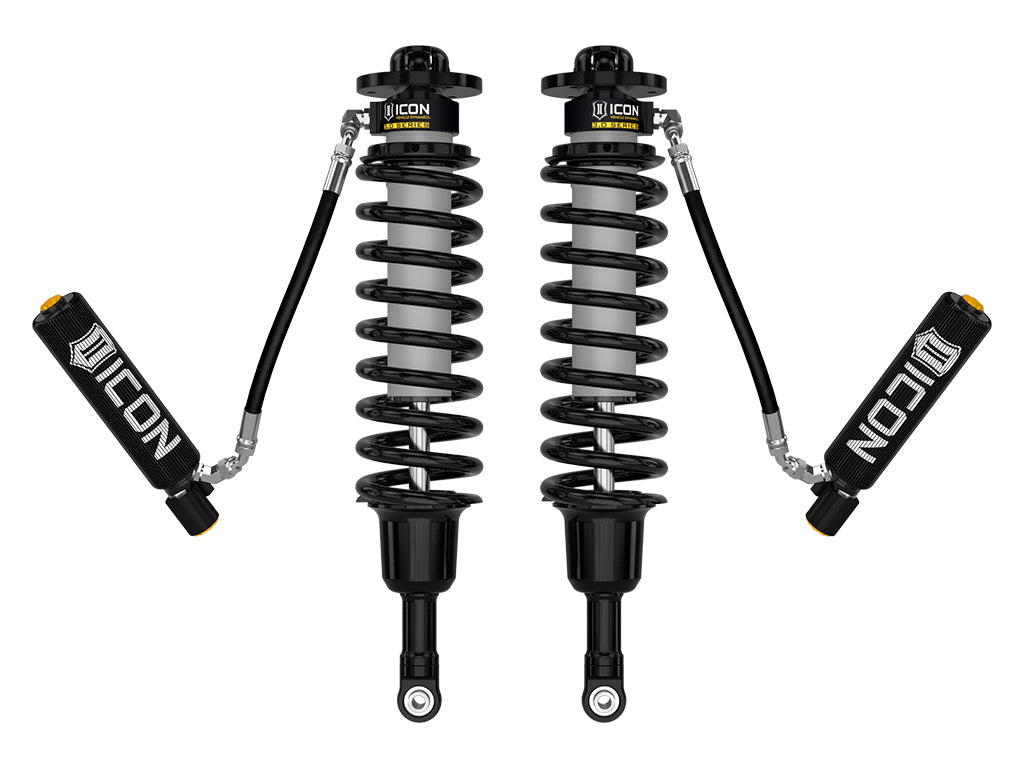

ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV
ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV
ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV

Have Questions?

+1 702-333-0868, M-F 9-6 PST

ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV

Sale price$4,367.95
Pickup available at 4301 S Valley View Blvd Unit 19 Usually ready in 2-4 days

ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV

4301 S Valley View Blvd Unit 19

Pickup available, usually ready in 2-4 days

4301 South Valley View Boulevard
Unit 19
Las Vegas NV 89103
United States

+17023330868

Have Questions?

+1 702-333-0868, M-F 9-6 PST

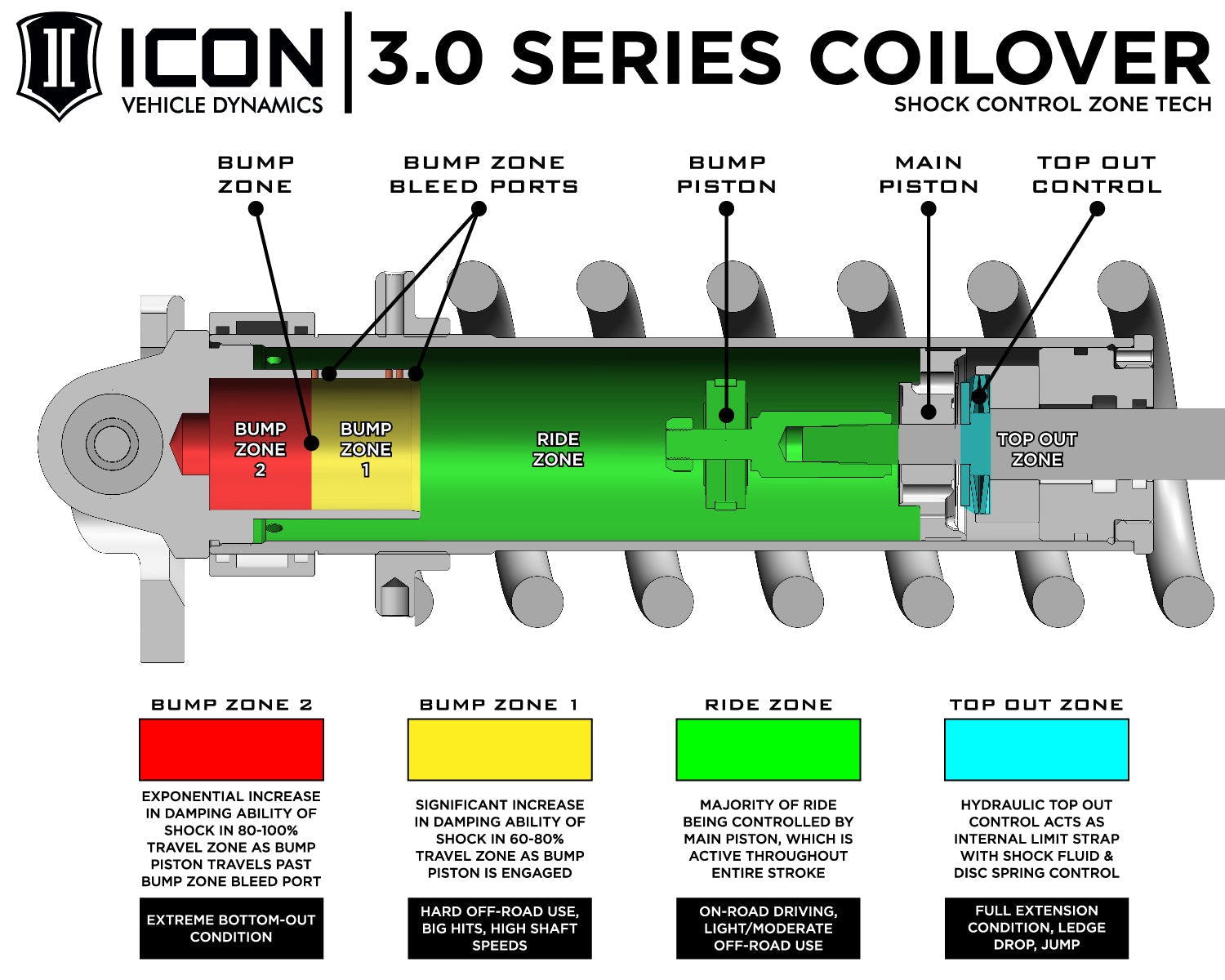

The front-end geometry of the Gen 3 F-150 Raptor was found to be fairly similar to the previous model truck, however there are a few key differences that required a redesign of the coilover to be compatible with the newer generation chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging and provide 1-3” of front lift height adjustment. The vehicle-specific valving featured in these shocks and the ICON-engineered coil spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area compared to standard reservoir cylinders for enhanced cooling and consistent damping under aggressive off-road use.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Standard

+0.75" Lift over stock

Rate Option #1
