SKU: BJGM_R110-200

63-72 C10 2-6" Drop With C-Notch, Mid, Single Adj

Sale price$3,199.19
Pickup available at 4301 S Valley View Blvd Unit 19 Usually ready in 2-4 days

63-72 C10 2-6" Drop With C-Notch, Mid, Single Adj

4301 S Valley View Blvd Unit 19

Pickup available, usually ready in 2-4 days

4301 South Valley View Boulevard
Unit 19
Las Vegas NV 89103
United States

+17023330868

Have Questions?

+1 702-333-0868, M-F 9-6 PST

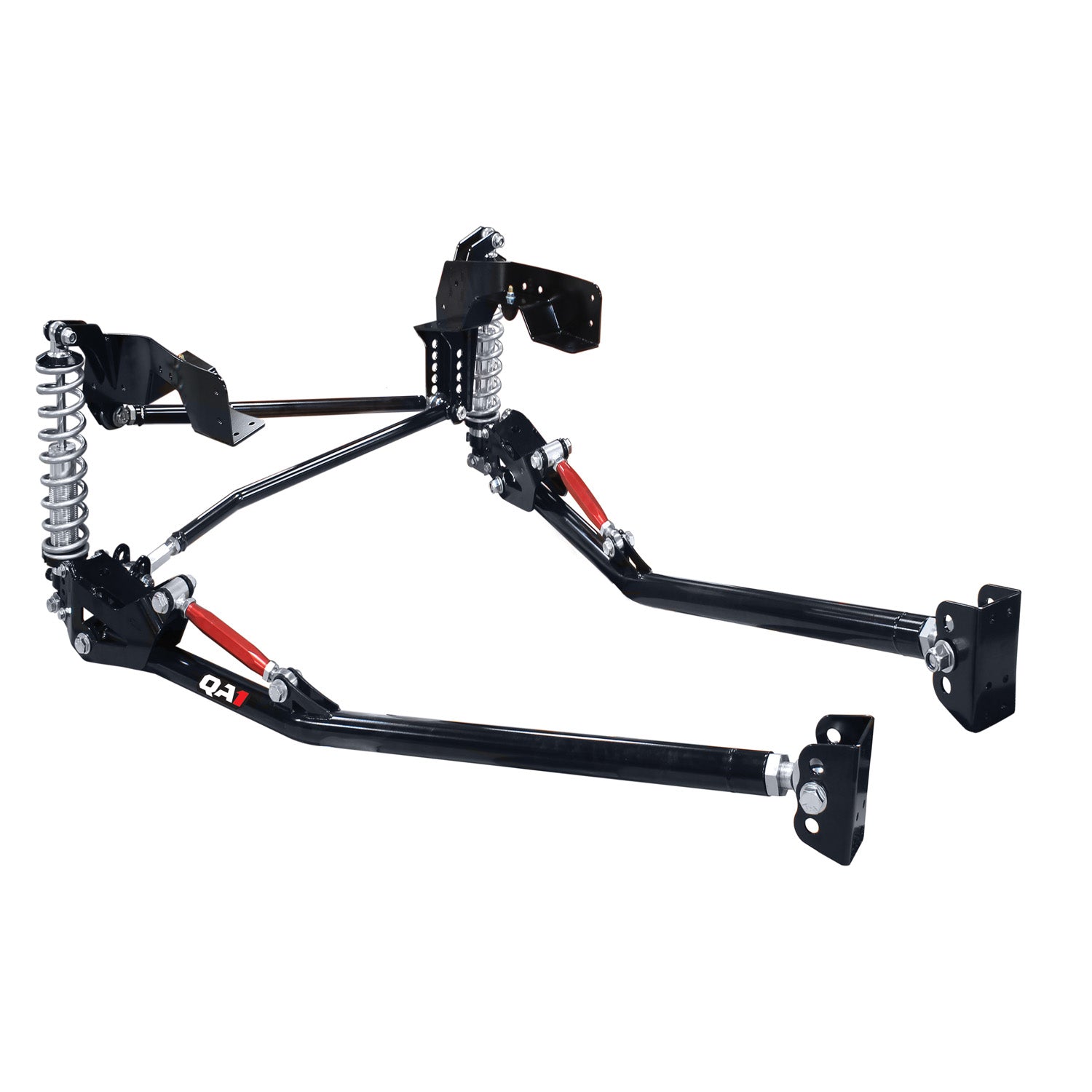

QA1's C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system offers up to 6" of total drop and integrates adjustability into multiple areas so you can truly fine-tune the geometry to create the perfect performance after lowering. , , By converting the coil-spring rear suspension to adjustable coil-overs, the ride height for each corner can be altered for that perfect stance. From there, the tubular steel truck arms feature an integrated pinion angle adjustment, eliminating the need for angled shims and allowing the wheelbase to be set to exact specifications. The adjustable panhard bar keeps the rear centered for more predictable cornering, and the multiple mounting locations correct roll center geometry based on the amount of drop. The coil-overs are also relocated to the outside of the frame rail, closer to the wheel, for better cornering stability and allowing room for popular aftermarket rear-mounted fuel tanks. In addition to being easily bolted on, the entire rear system can be installed without needing to remove the bed of the truck.
