Maximize the capability of your 2007-2018 Jeep Wrangler 4 Door with this 6.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. This 4-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel.
Up front the lift kit includes new pivot mounts that are constructed from 1/4 inch thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4 inch Pro-Ride coil springs capable of full coil bind and 3 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry.
In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 4 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Long Arm Conversion
Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4 inch steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 6.5 inch
- Rear Lift Height: 6 inch
- Will not fit 2wd models.
- The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
- Exhaust modification may be required.
- Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 37 inch Tires
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

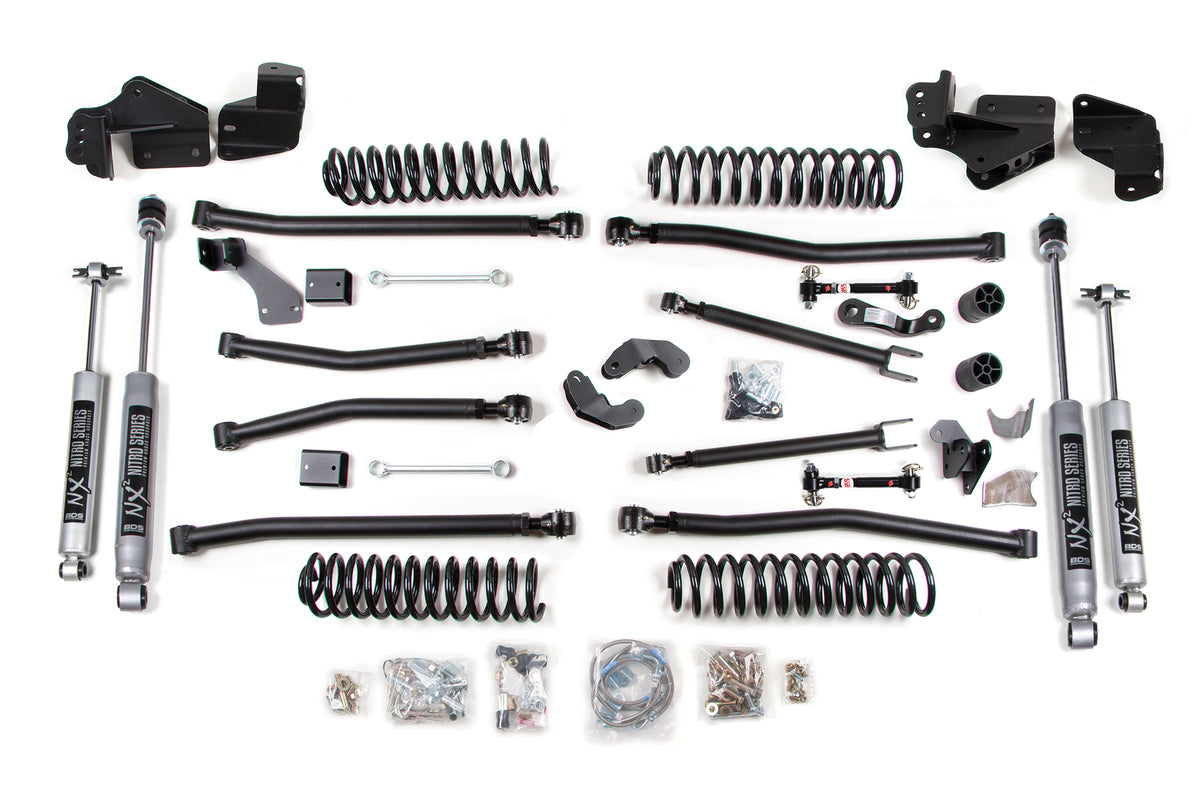

Kit Components:
- Includes one BDS014663, Jeep Wrangler JK 5.5/6.5 Long Arm Box Kit, UPC Code 658848614325
- Includes one BDS014689, JK Rear Long Arm Box Kit, UPC Code 658848614332
- Includes one BDS014691, JK Front Long Arm Box Kit, UPC Code 658848614356
- Includes one BDS034611, 2007-2018 Jeep Wrangler (JK) 4 Door 6.5in Front Coils, UPC Code 658848616947
- Includes one BDS034619, 2007-2018 Jeep Wawngler (JK) 4 Door 6.5in Rear Coils, UPC Code 658848616954
- Includes two FOX98224952, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
- Includes two FOX98224958, Fox 2.0 Shock 30.05 x 18.45 x 2-BP18/EB1
