Fitment:
-
Installation requires cutting the original plastic bumper cover
-
Power steering cooler lines must be replaced with the included power steering cooler kit
-
2020+ models featuring TSS must select the TSS Relocation Bracket to retain functionality.
-
TSS is NOT compatible with the mid-height bull bar version of this bumper.
-
Not compatible with MTM front camera without relocating camera above bumper
Features:
-

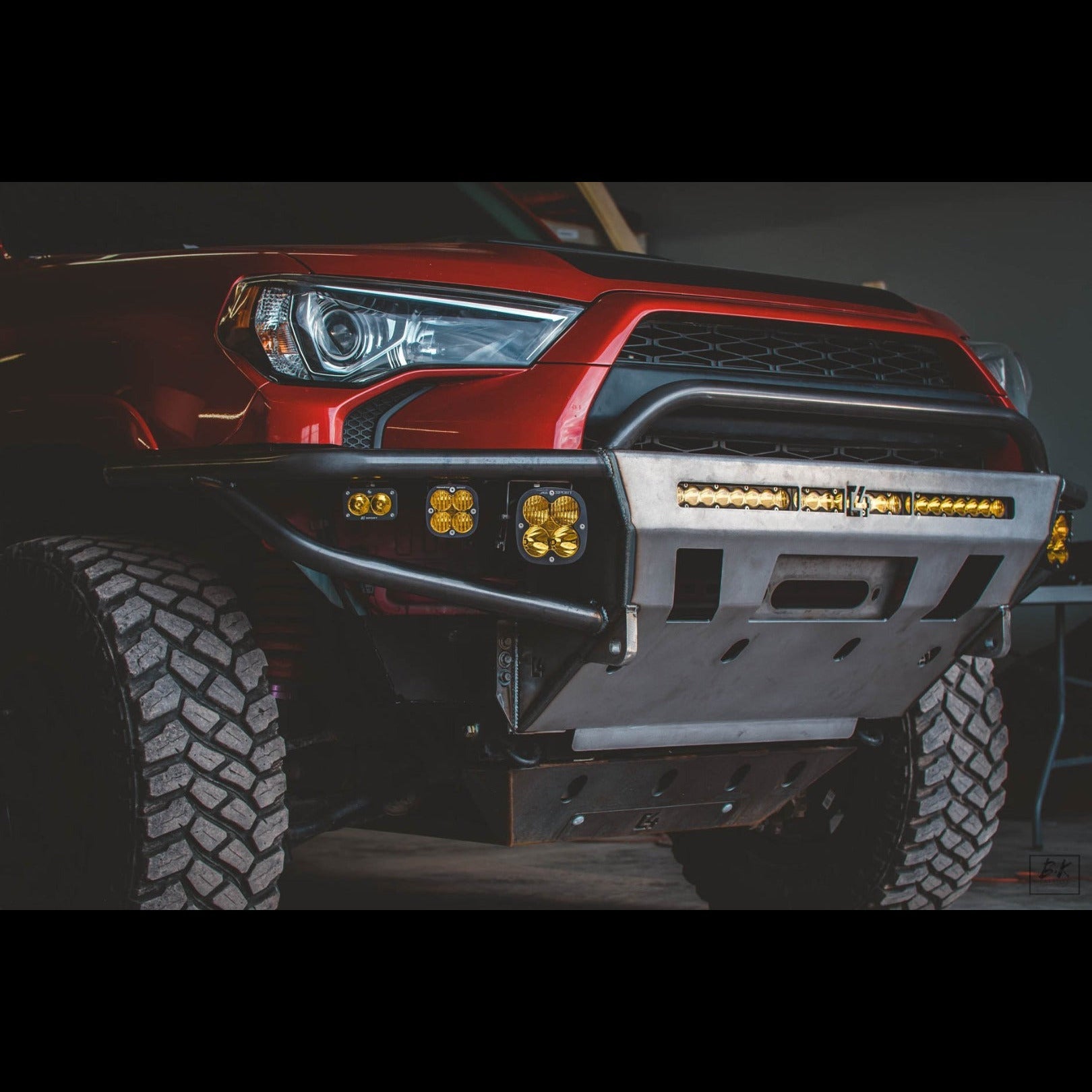

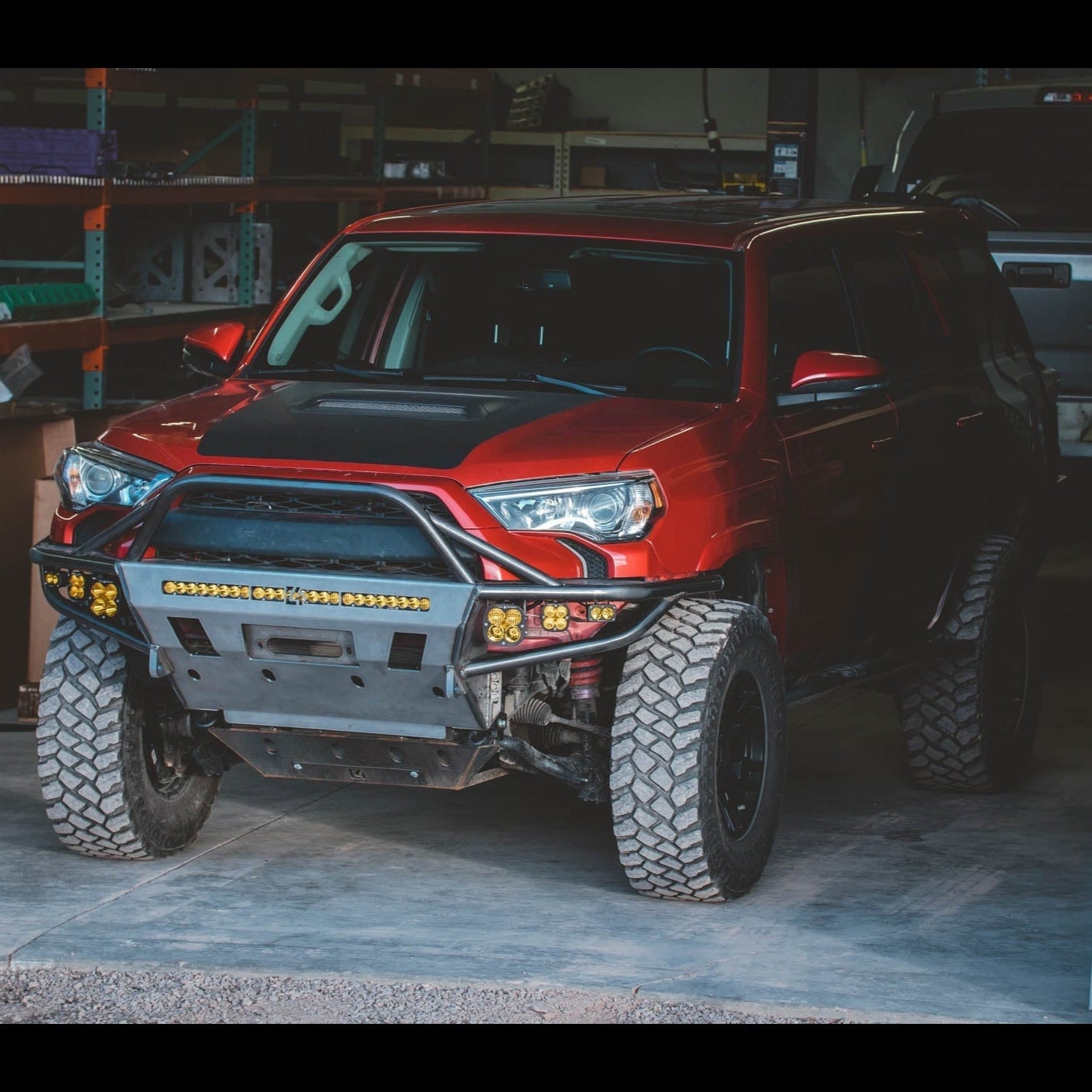

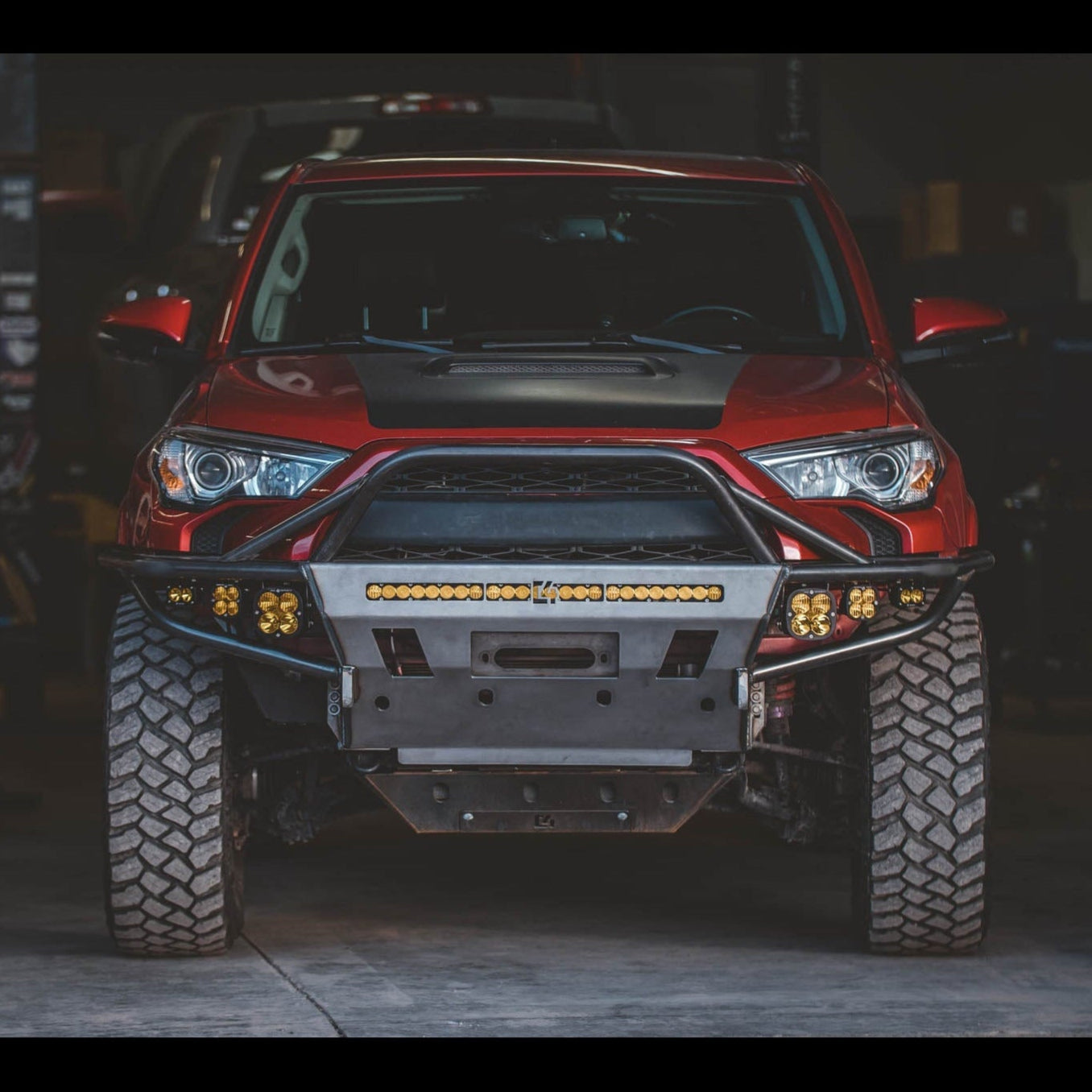

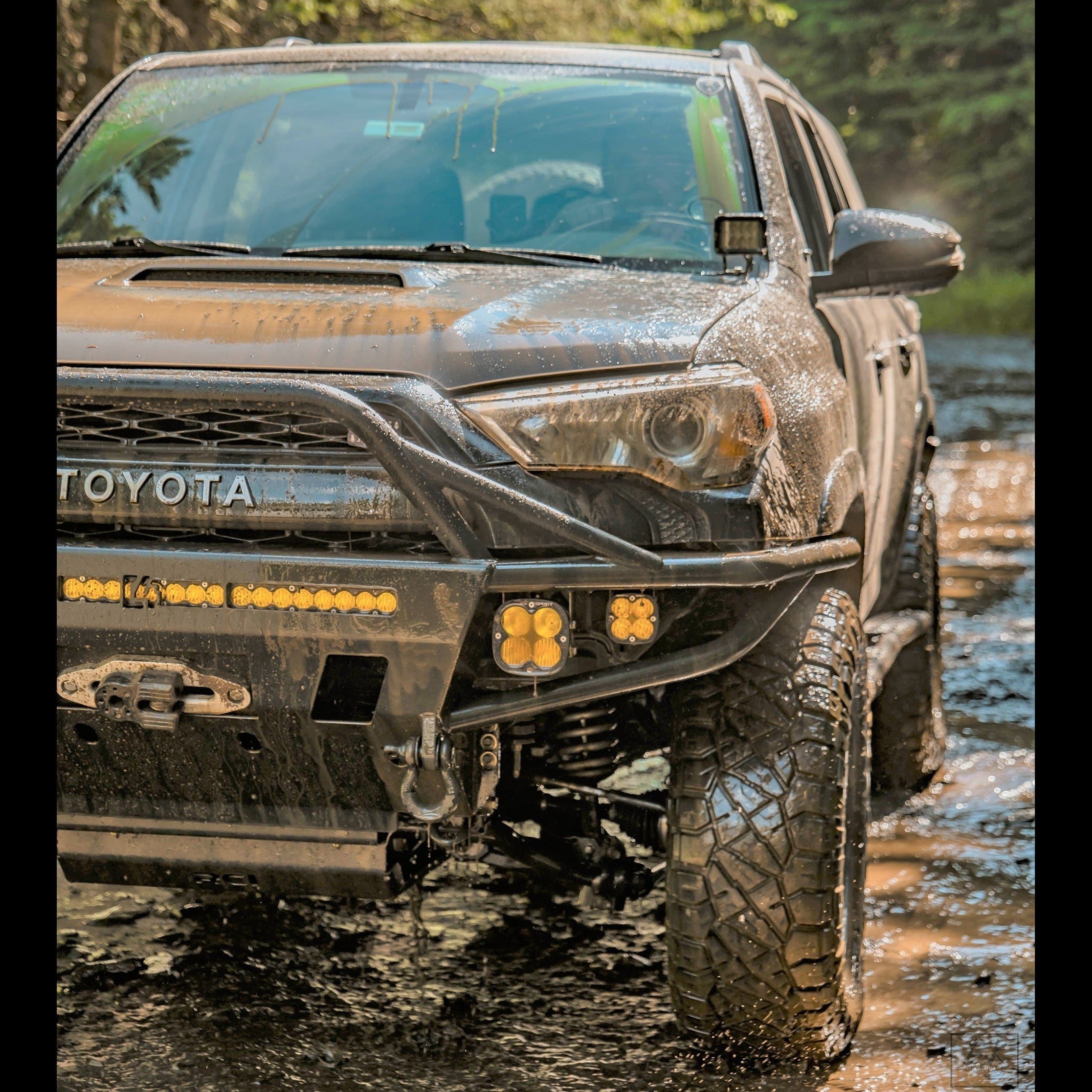

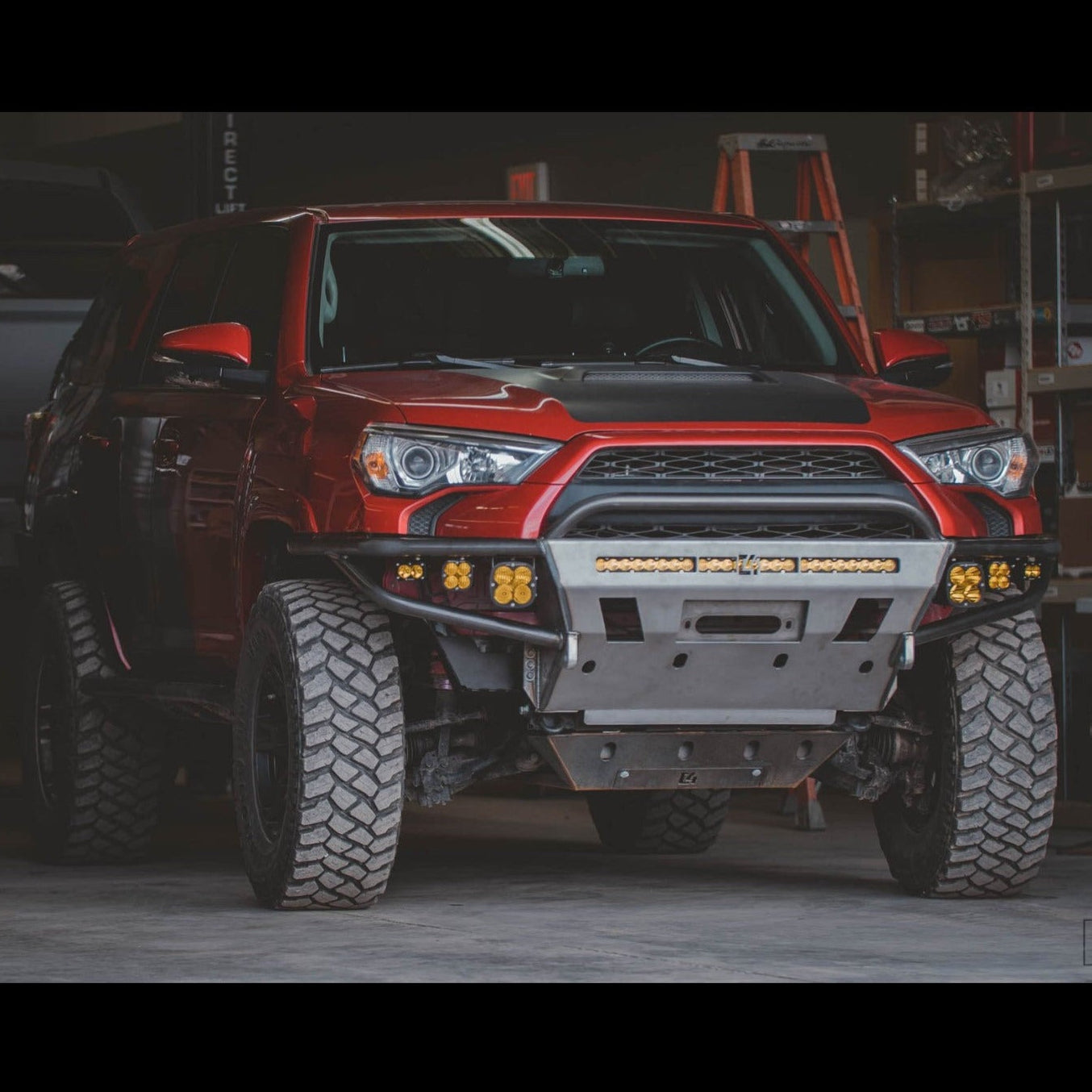

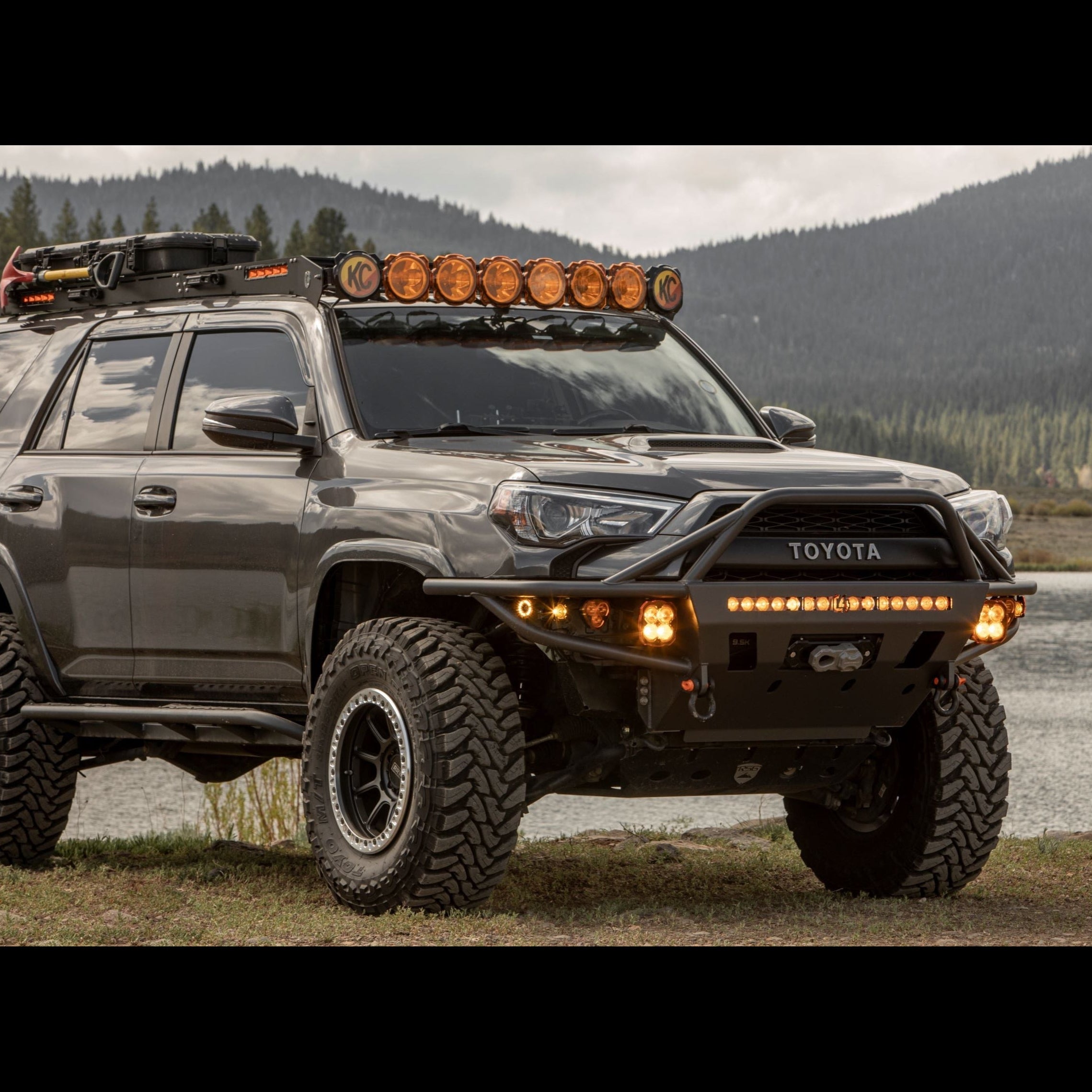

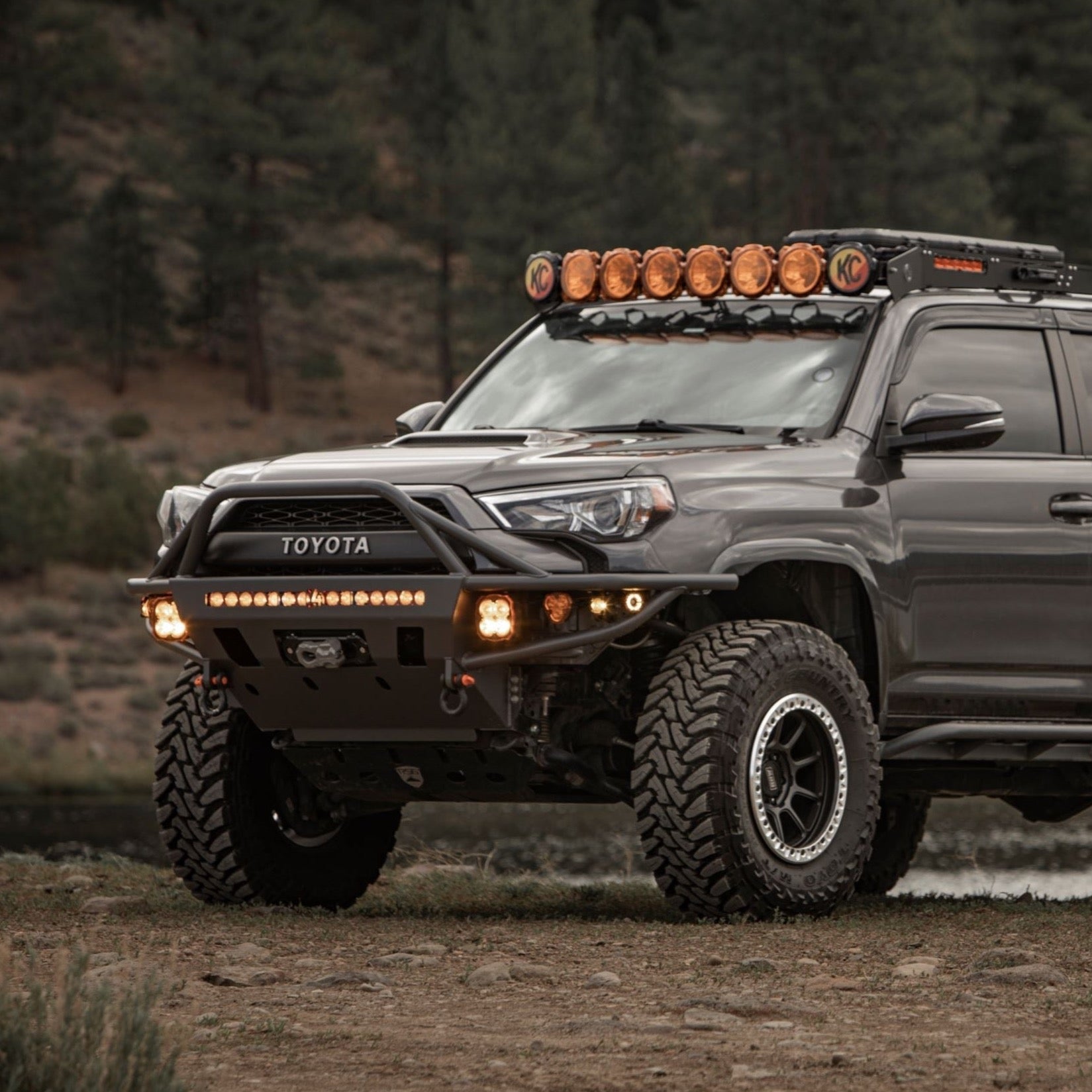

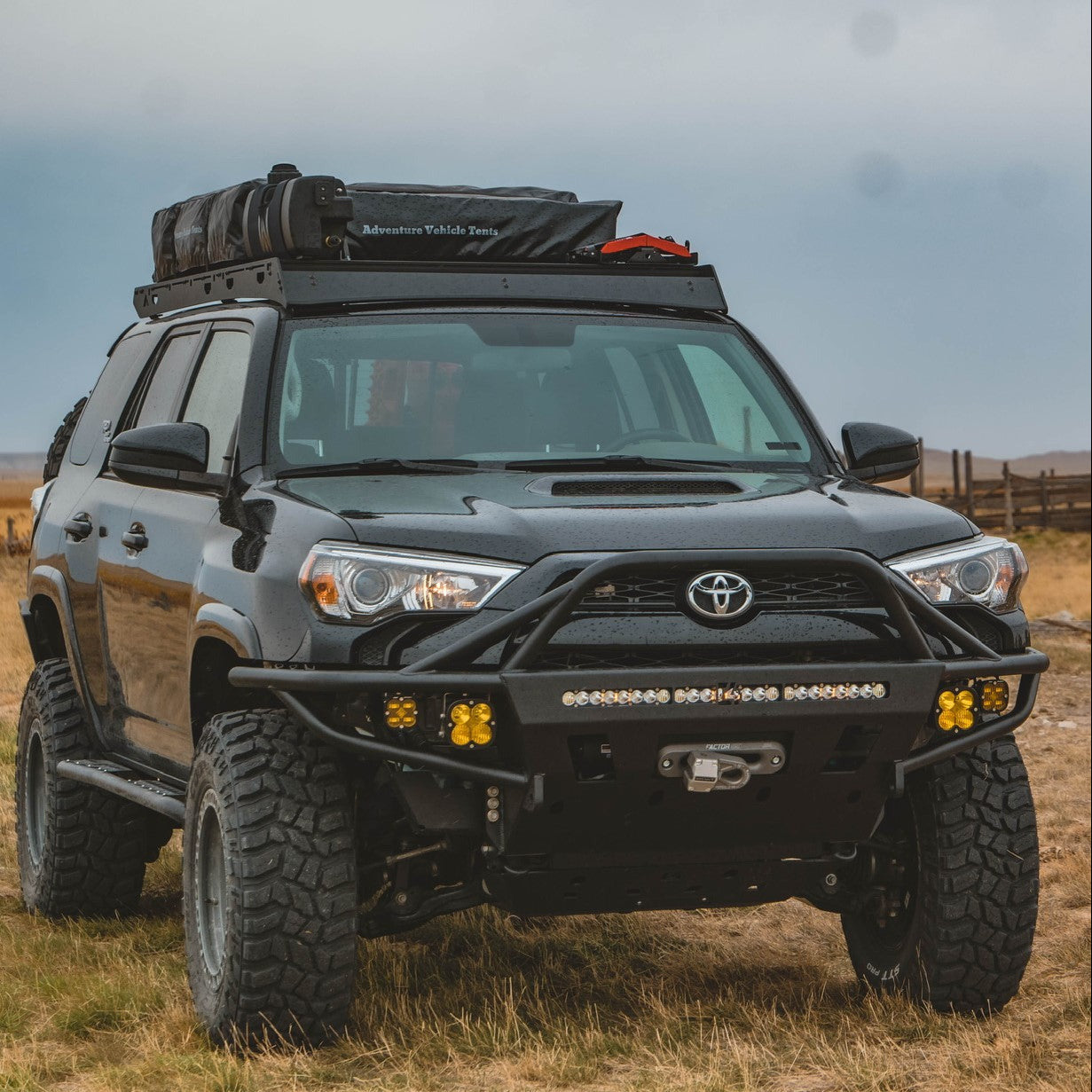

This bumper is a unique combination of a plate steel center with tube sides.
-
Introduces Improved Approach Angles
-
Creates More Space for Larger Tires
-
Provides the ability to mount a winch, LED light bar, and multiple combinations of fog lighting in the tube area
-
Center portion is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
-
Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
-
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
-
Fits Most Winches 8k-12k in Size. Winches with the ability to relocate control box recommended. Confirmed fitment on ComeUp, Smittybilt X20, Warn Zeon and VR series winches.
-
Recommend Using a Synthetic Rope Winch with a Hawse style Fairlead
-
Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.
-

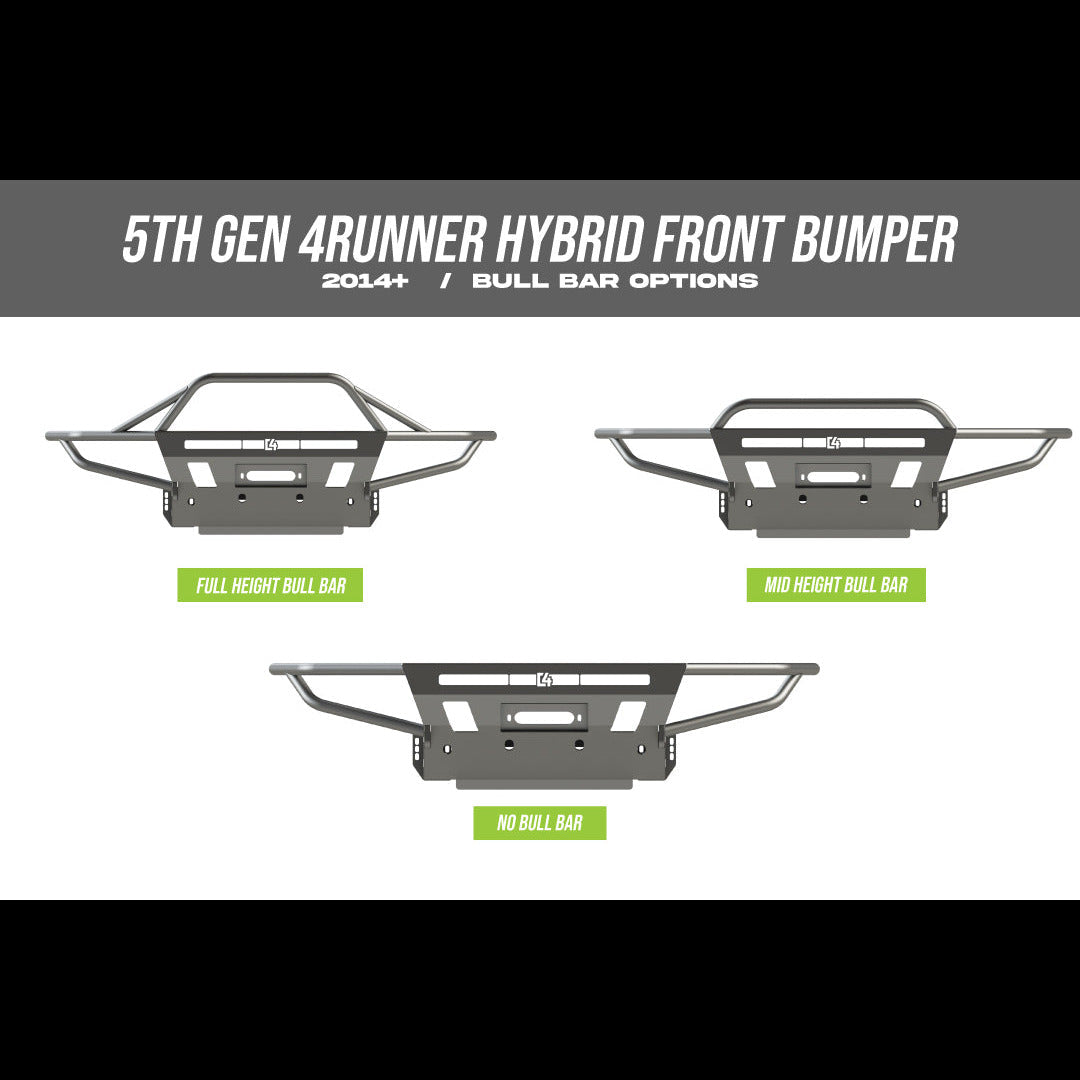

Weight: 120lbs without bull bar, 125lbs with mid height bull bar, 135lbs with full height bull bar
Add-Ons:
-
Designed to fit 30” Baja Designs S8 Light Bar. Compatible with RIGID SR & Extreme LED 5D as well.
-
Designed to fit Baja Squadrons & Baja XL light pods in the tube sections
-
Washer Tank Skid Plate
-
8-12k Winch, Fairlead, & Winch Shackles
-
TSS Relocation Bracket

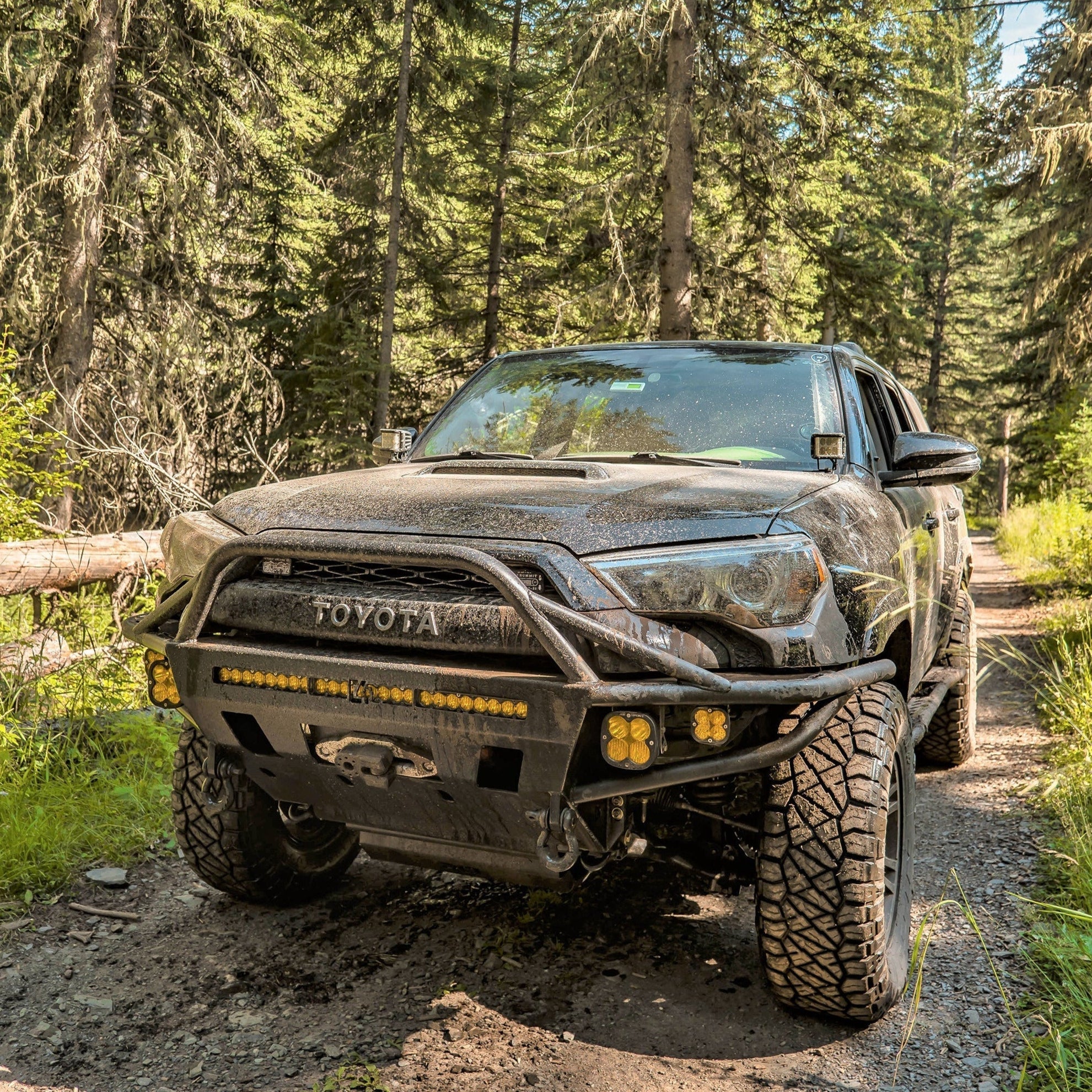

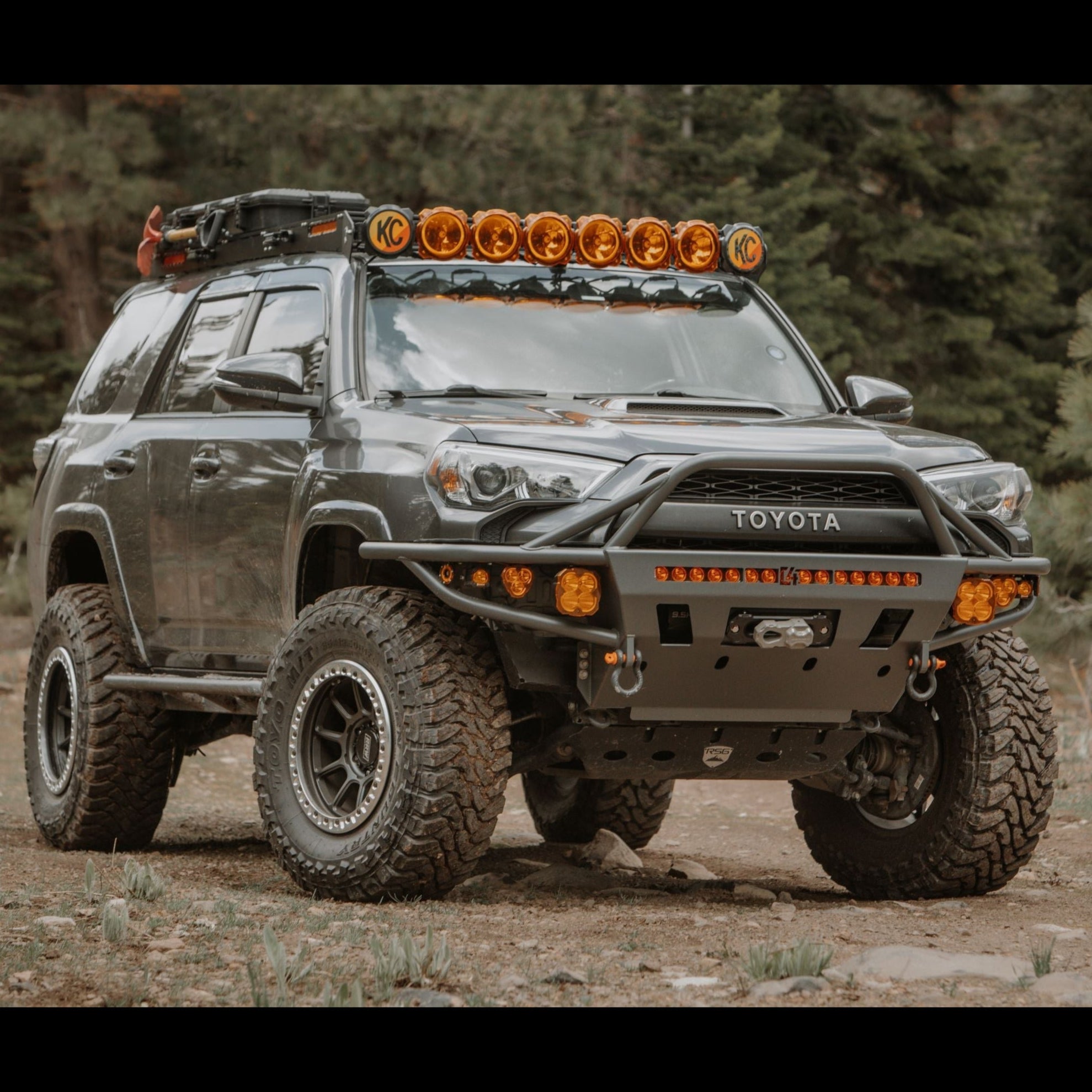

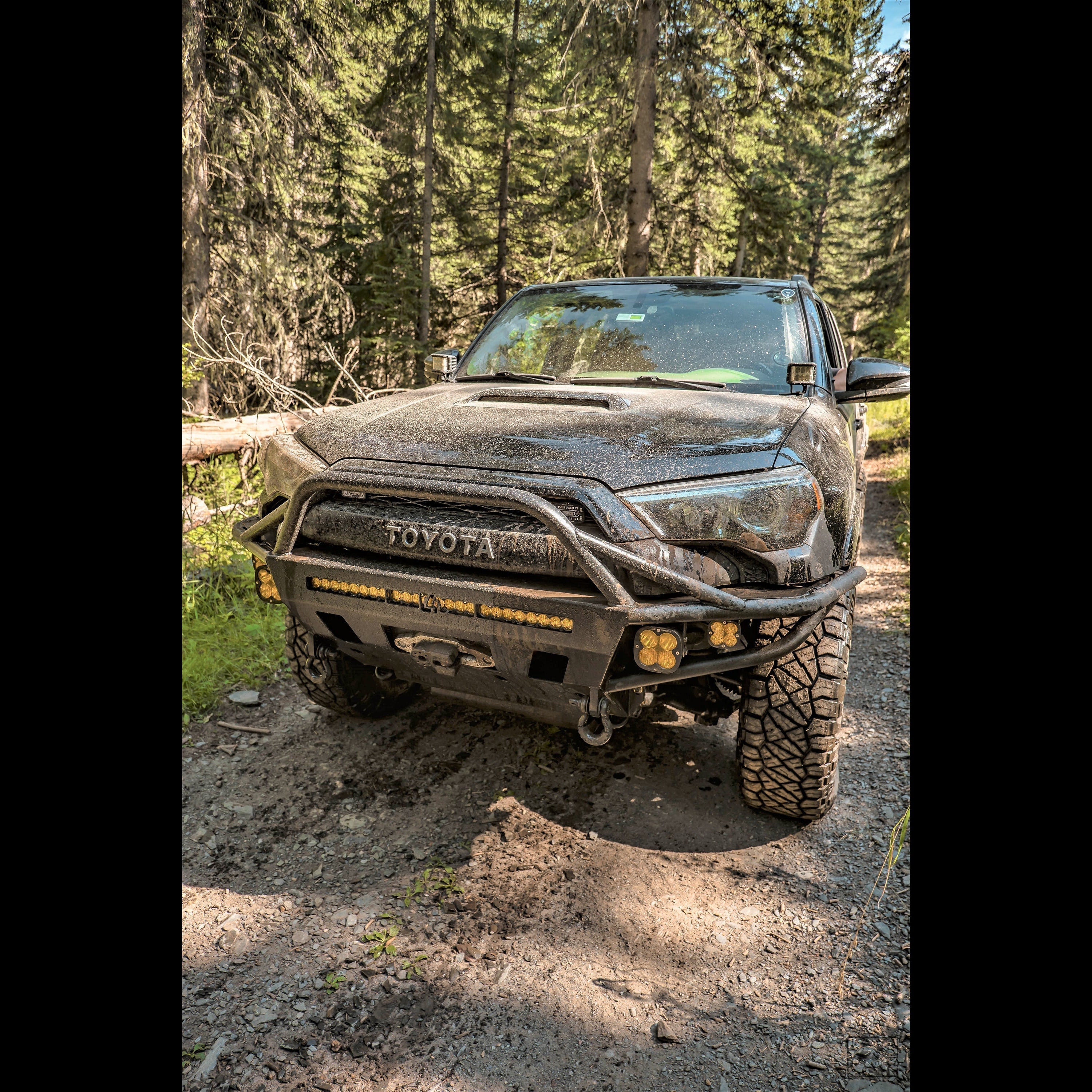

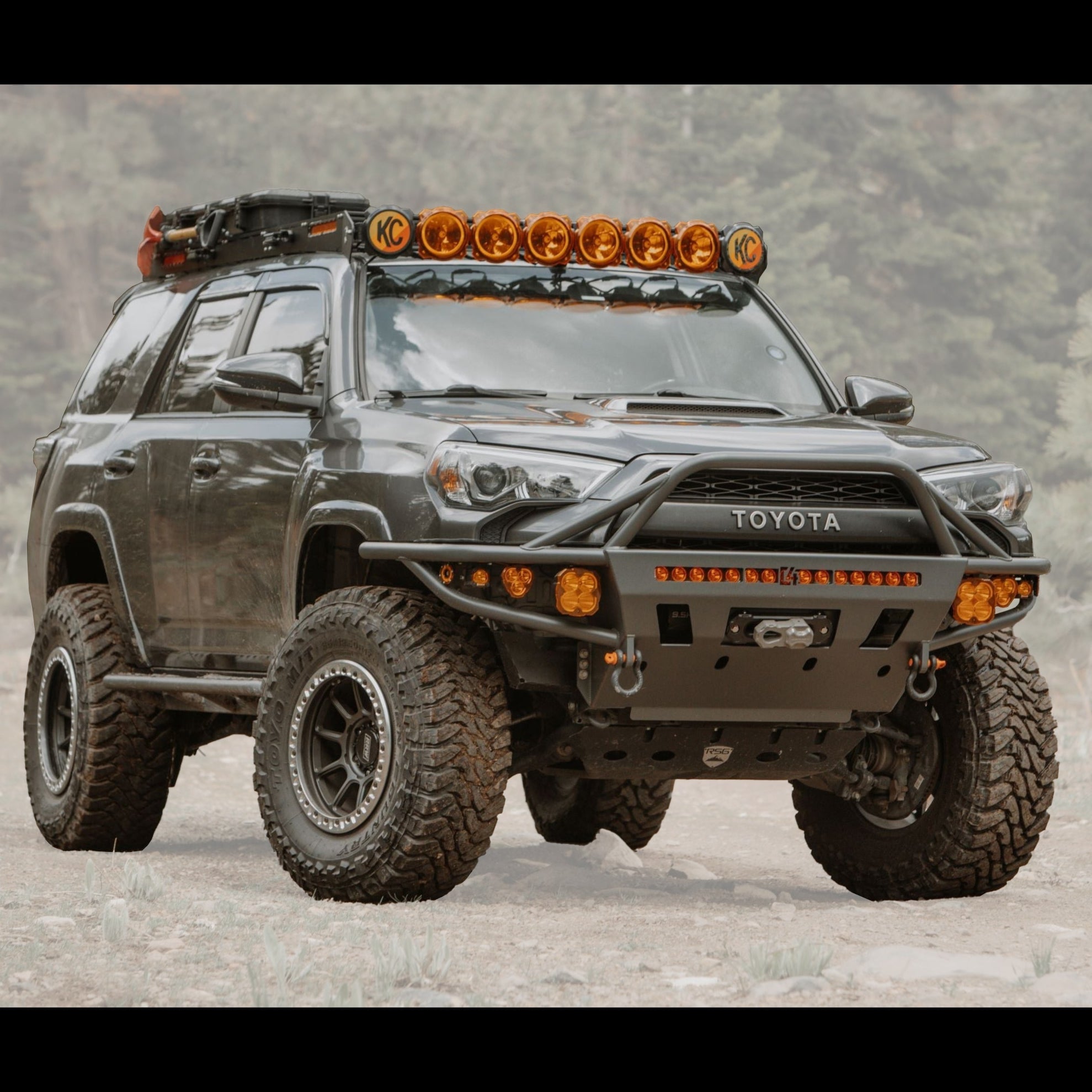

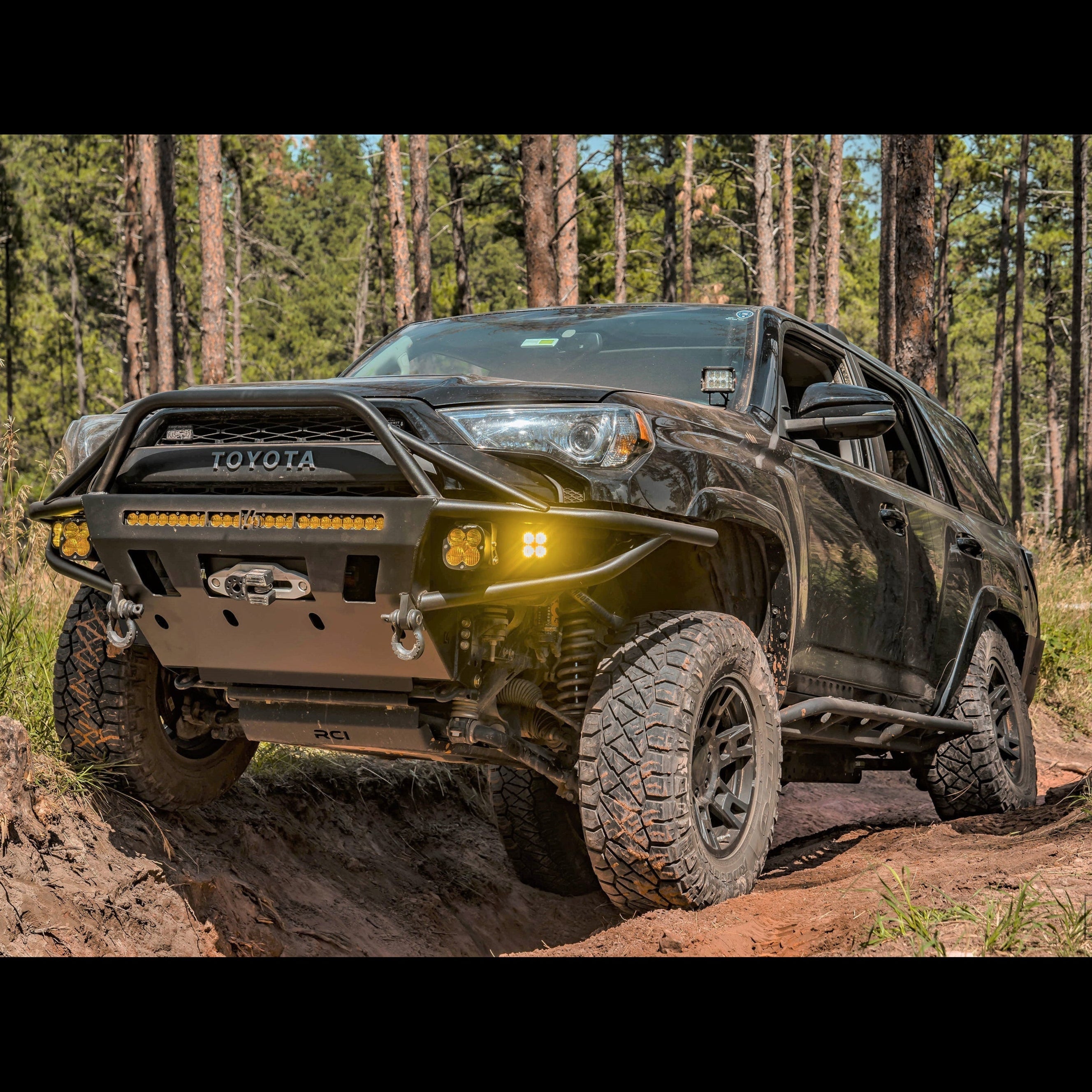

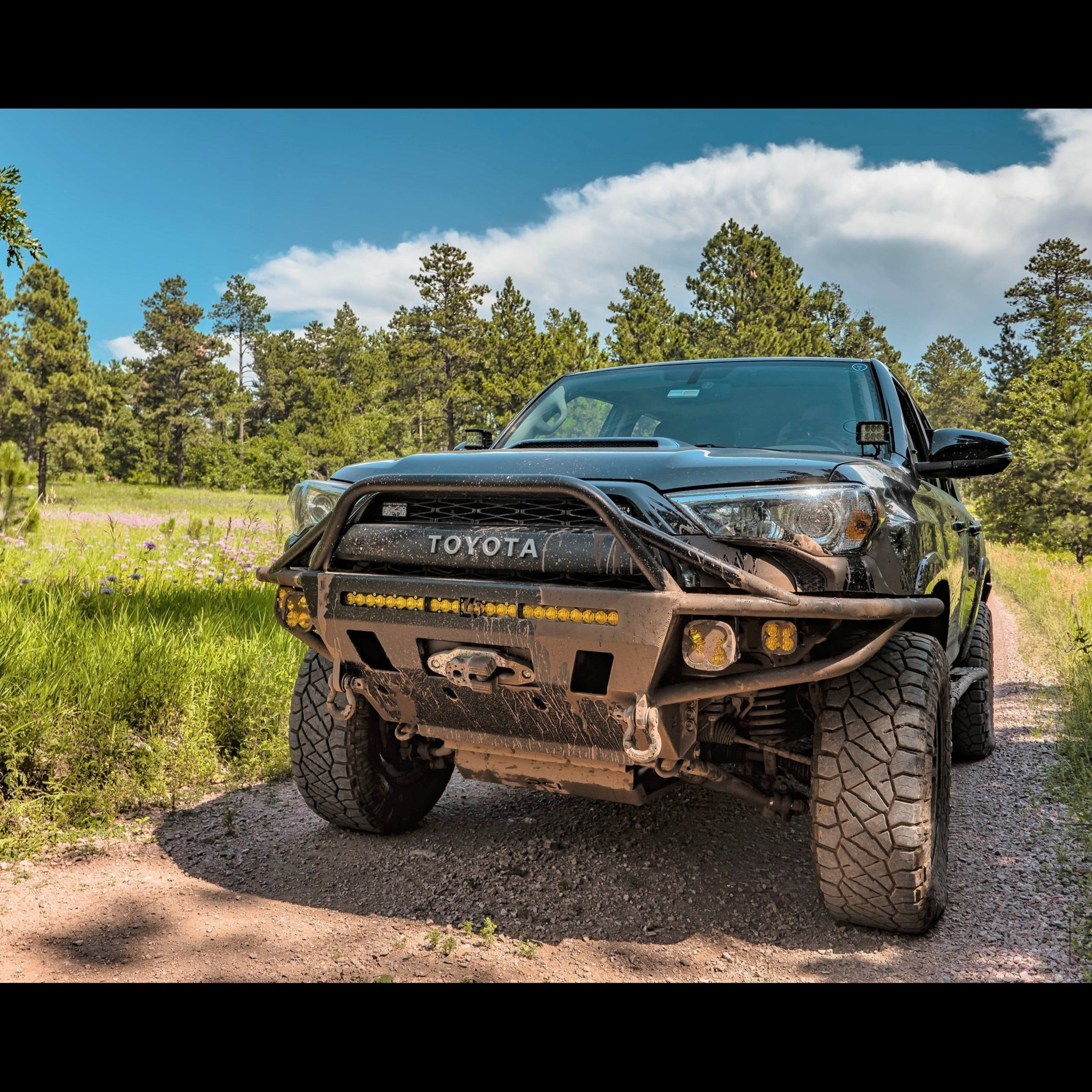

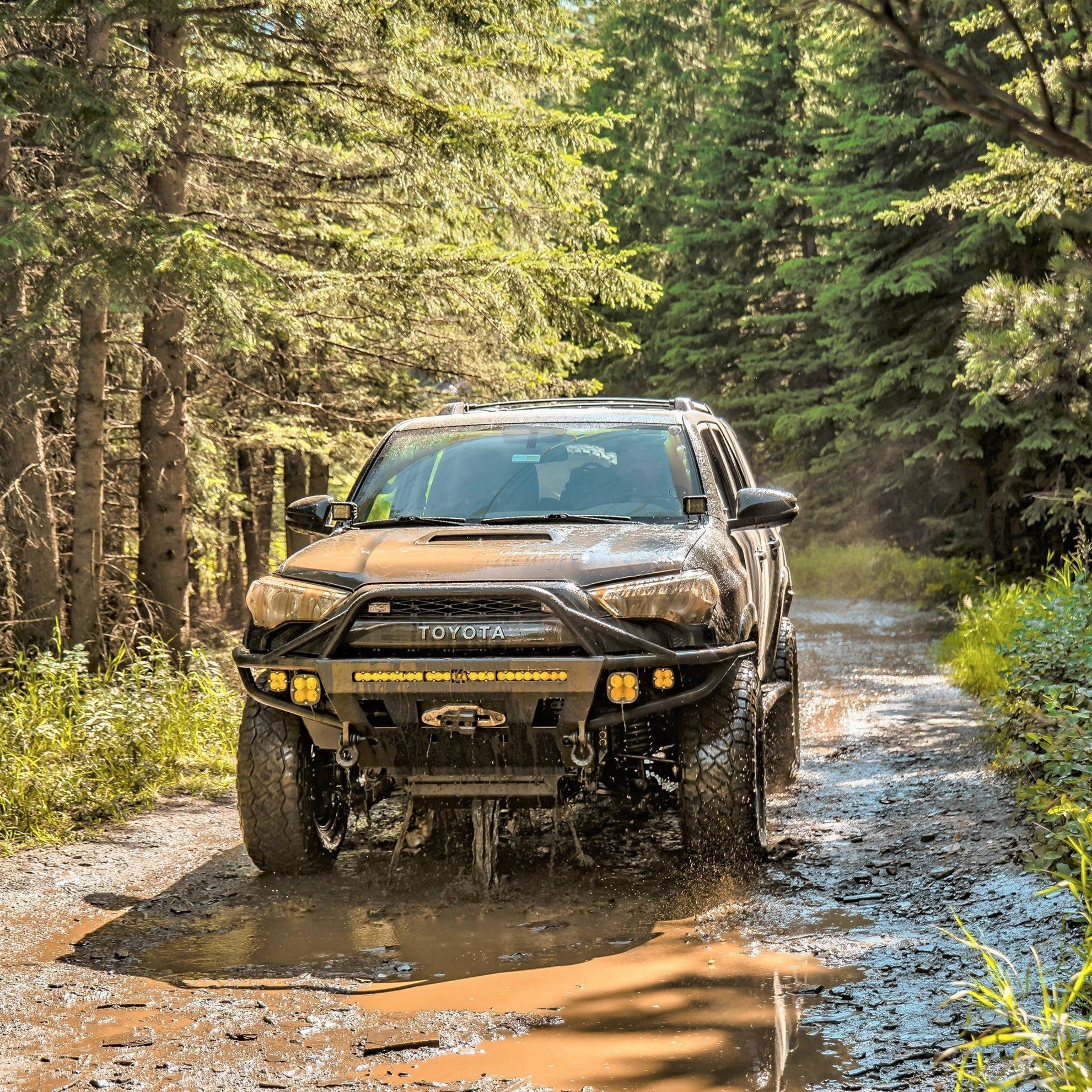

The 4Runner Hybrid Front Bumper for 5th Gen models (2014–2024) is a rugged, high-clearance upgrade that combines a plate steel center with tubular steel wings to improve approach angles and make room for larger tires. Designed for serious off-road use, it allows for the mounting of a winch (8k–12k), a 30” light bar, and various fog light combinations in the tube areas. Constructed from 3/16" laser-cut steel with 1/4" mounting plates and 1.75” .120 wall HREW tubing, it also includes fully welded 3/4" D-ring tabs for recovery.
Installation requires cutting the factory plastic bumper and replacing the power steering cooler lines with the included kit. Models from 2020 and up with Toyota Safety Sense (TSS) must select the optional TSS Relocation Bracket for compatibility, although the mid-height bull bar version does not support TSS. The bumper is not compatible with the MTM front camera unless it is relocated above the bumper. Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust. Available with optional add-ons like a washer tank skid plate, winch accessories, and light mounts, this bumper offers both protection and functionality in a trail-ready design.
