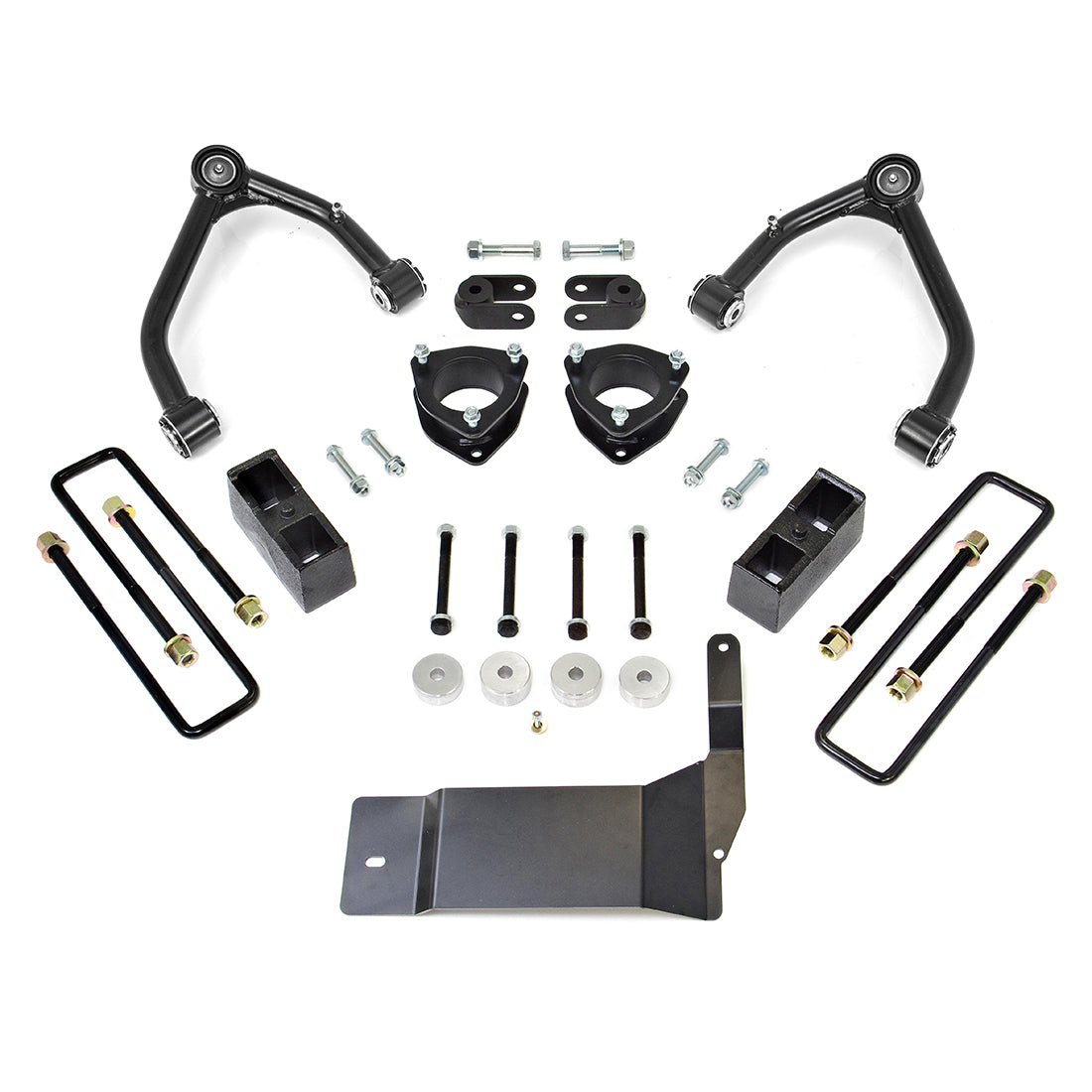

New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT 69-3414 4-Inch SST Lift Kit is designed for the 2014-2018 GM 1500 4WD and Z71 trucks.
ReadyLIFT 69-3414 4-Inch SST Lift Kit combines many of the great features of our time-tested and very popular 4-Inch SST Lift Kit for the 2007-2013 trucks with new innovative features. Some features implemented into this system include a completely differential drop mounting system which utilizes machined billet circular spacers which allows for just the right amount of differential drop without interfering with the rear-mounted electric steering rack.
A rugged skid plate accompanies our differential drop system. Our 4-Inch SST Lift Kit uses the heavy duty ball joint found on the GM 2500 HD series trucks -- these ball joints are vastly superior and are already installed into the tubular steel upper Control Arms provided in the kit.
This kit also includes premium Tct uca inner bushings and new washer backing spacer sleeves which greatly prolong the life of the bushings. Our engineering testing has shown this 4-Inch SST Lift Kit is extremely versatile and strong allowing the customer to install up to a 33X11.50 tire (max) on 5.25-Inch backspacing wheel.
The kit is for use on trucks with the factory Aluminum or stamped steel upper and lower Control Arms. Not for use on trucks with cast steel upper Control Arms.
Z71 standard suspension okay. Note: The ReadyLIFT 69-3414 SST Lift Kit is designed for use with Aftermarket Wheels with a backspacing of 5.25 Inch.
If you intend to run the stock wheels with an aftermarket larger tire, a wheel spacer is required to prevent the tire from touching the control arm at full-locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels.
To run the OE/Factory wheels AND tires, you will need to use the ReadyLIFT 1/2-Inch Billet Wheel Spacers. Note: Use of Auto 4 Hi feature not recommended.
Features and Benefits:
- Fits 2014-2018 GM1500 2WD/4WD trucks
- UCA Assembly with maximum lift of 4.0-Inch in the front and 1.75-Inch in the rear
- Can accommodate tires up to 33
- Not compatible with pre 2014 GM 1500 trucks
- Not suitable for AWD Denali trucks
- Designed for use with Aluminum alloy or stamped steel front suspension only
- Not compatible with cast steel suspension
- Features solid mount and even load distribution
- Includes pressin 10.9 grade hardware
- OEM style cast blocks that will not deform or change shape
- No cutting or welding of OEM parts required
- Maintains factory ride quality
Details:
- Fitment: Direct Fitment
- Front Lift Component: Spacer
- Front Lift Height: 4.0 Inch
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 4.0 Inch
- Material: Steel
- Max Tire Size: 33 Inch
- Rear Lift Component: Block and U-bolt
- Rear Lift Height: 1.75 Inch
- Shocks Included: No
