Upgrade the control arms and shocks of your 3rd or 4th generation Toyota Tacoma with our line of suspension components and Direct Fit Race shocks. Choose from front upper and rear (upper and lower) control arms made from heavy-duty tubular DOM steel or premium billet, along with adjustable and non-adjustable options of our popular Direct Fit Race shocks.
Front upper control arms accommodate lifts up to 4-inches, correct camber and caster for a smoother ride, and are fully rebuildable, making either option a sustainable and long-lasting upgrade for your Tacoma!

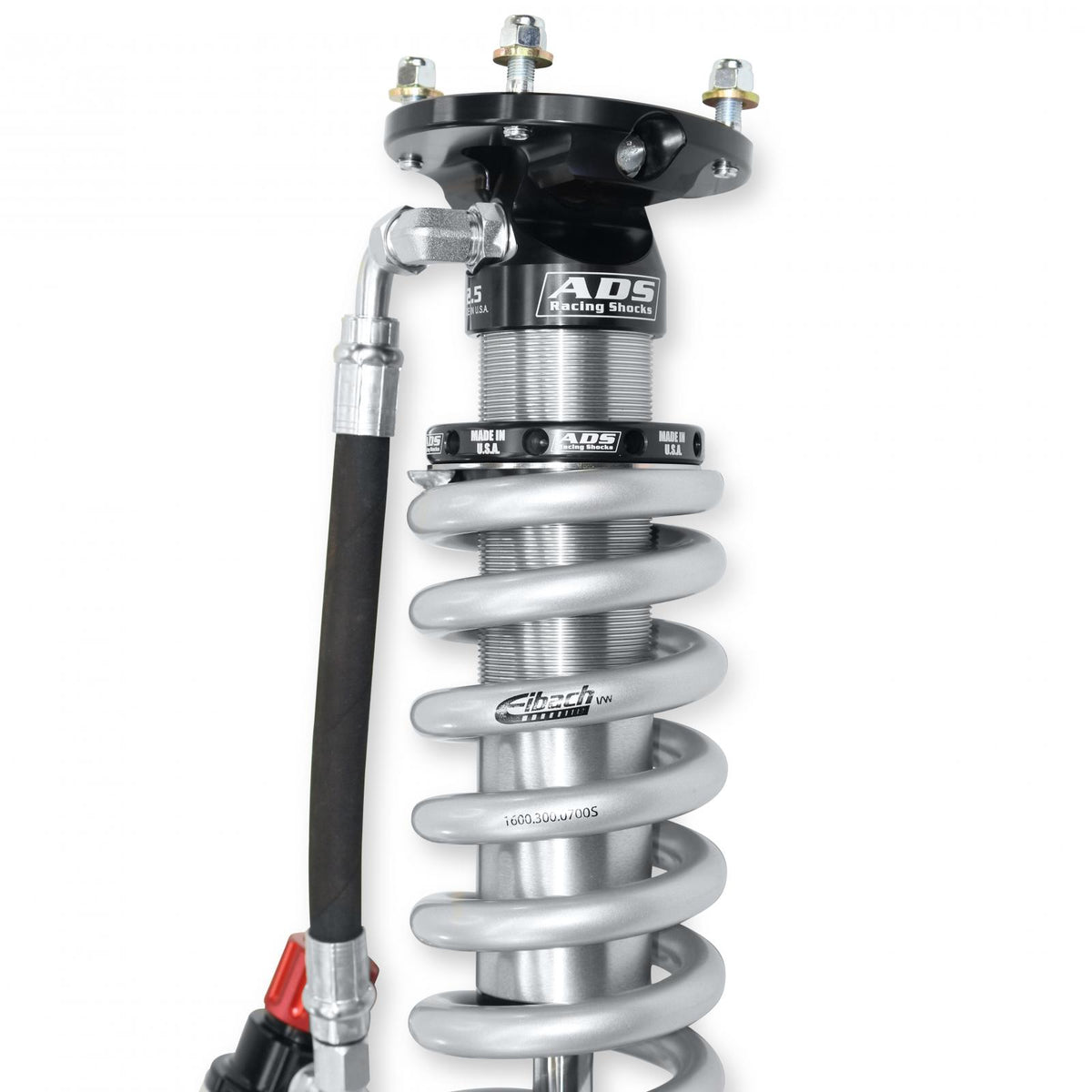

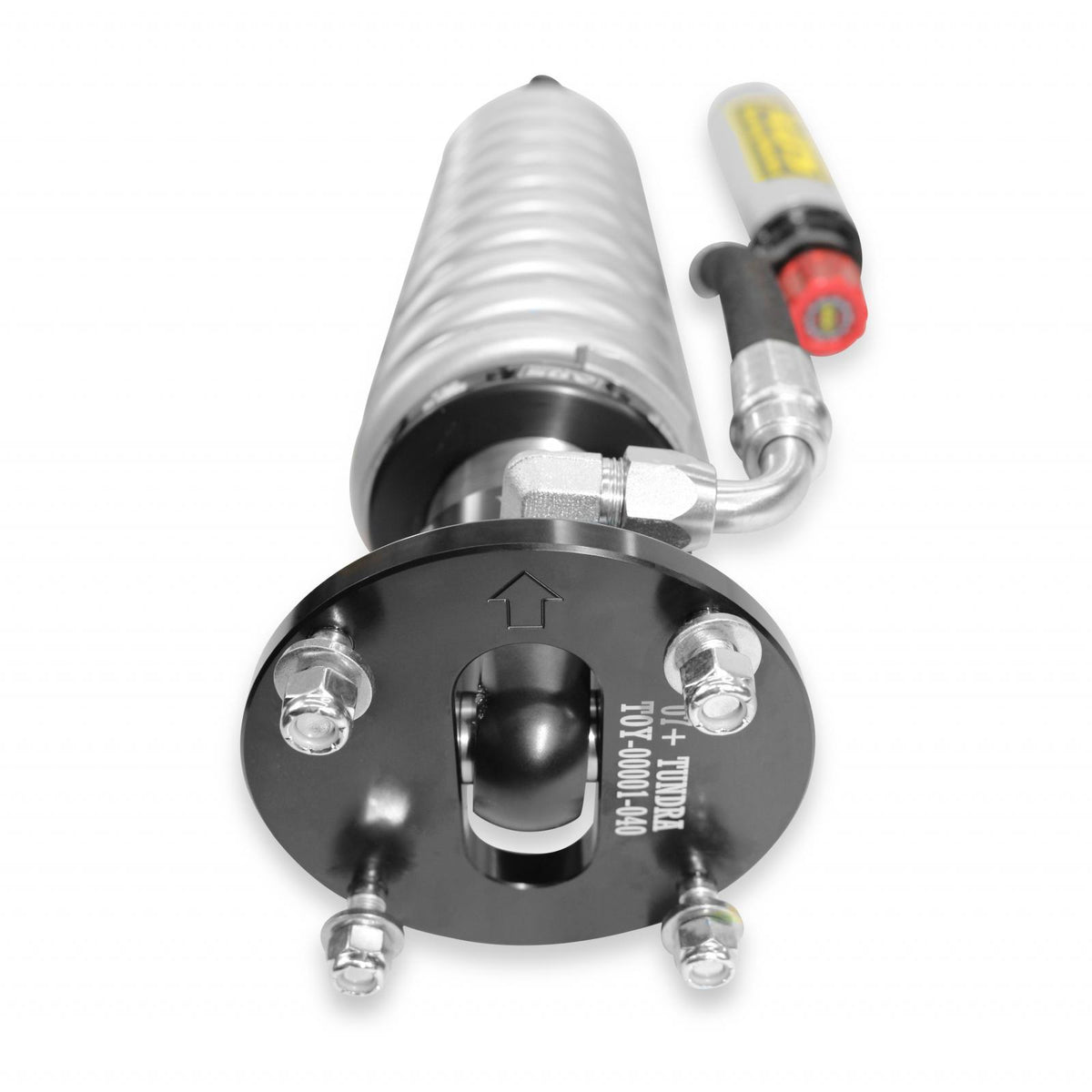

ADS is also proud to offer our all-new Direct Fit Race Series shocks for Tacoma. This shock line is engineered to provide maximum stability and control in a bolt-on upgrade that is built to withstand extreme conditions and heavy use.
Benefit from the durability and corrosion resistance of zinc plated, steel shock bodies, with a crystal clear Cerakote finish. The shock features black anodized billet aluminum top and bottom caps, along with hardchrome plated steel shafts for superior corrosion resistance.

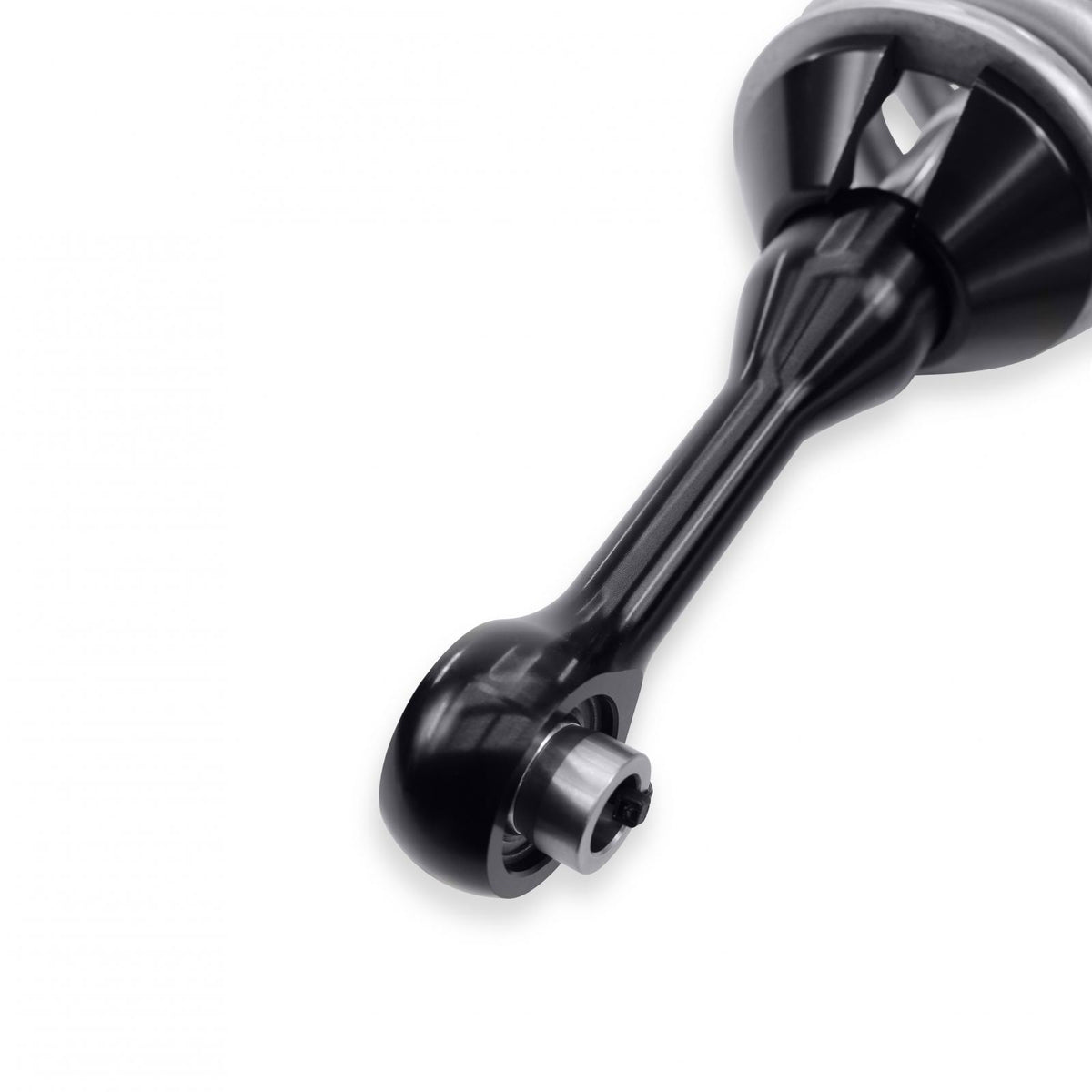

Its shock eye mounts include machined rod ends with high-strength spherical bearings to boost performance. Everything about these shocks are premium!
Features and Benefits:
- Offered for both 05-23 and 24+ in 4 different configurations
- Large Bore 2.5-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- On the adjustable versions, comes with a billet, knurled and red anodized compression adjuster knob - Competition-inspired performance in an easy to install package
- Improved road manners and ride quality on and offroad
- Direct fit - No cutting, drilling, or welding required
Details:
- Shock Type: Coilover
- Collapsed Length: 19.37 Inch
- Lift Range: 1.5-3
- Qty: Sold as a pair
- Stroke: 6.1 Inch
- Grade Type: Performance
- Mounting Hardware Included: Yes
- Spring Color: Silver
- Spring Material: Steel
- Drive: 2WD/4WD
- Position: Front
- Weight: 62 Pound
- Active or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Rebound: Yes
- Adjustable Reservoir: Yes
- Adjustable Ride Height: Yes
- Body Color: Silver
- Diameter: 2.5 Inch
- Body Material: Steel
- Extended Length: 25.48 Inch
- Includes Bump Stop: Yes
- Internal Construction Type: Monotube
- Internal Rebound Bumper: No
- Internal Rebound Spring: No
- Travel Length: 6.1 Inch
- Lower Mount Type: Eyelet
- Requires UCA: Yes
- Shaft Diameter: 0.875 Inch
- Shaft Material: Hard-chrome plated steel
- Spring Finish: Powdercoated
- Spring Included: Yes
- Spring Rate: 500 Pounds Per Inch
- Valving Type: Progressive
- Boot Included: No
- Gas Charged: Yes
- Reservoir Diameter: 2.5 Inch
- Reservoir Length: 8 Inch
- Shock Travel: 6.1 Inch
- Body Finish: Electric zinc plated w/ Ceramic coat
- Reservoir Color: Silver
- Reservoir Finish: Anodized
- Reservoir Material: 6061 Aluminum
- Reservoir Type: Remote
- Hose Length: 13 Inch
- Hose Material: Rubber
- Hose Outer Diameter: 0.875 Inch
Application Summary:
- 2024-2026 Toyota Tacoma Sr SR5 Trailhunter TRD Off-Road TRD Pro TRD Sport (Front) (Drive: 4WD / Note: Provides 1-2.5 (in) Front Lift, With 500 (lb/in) Springs, Aftermarket Upper Control Arms Required)
