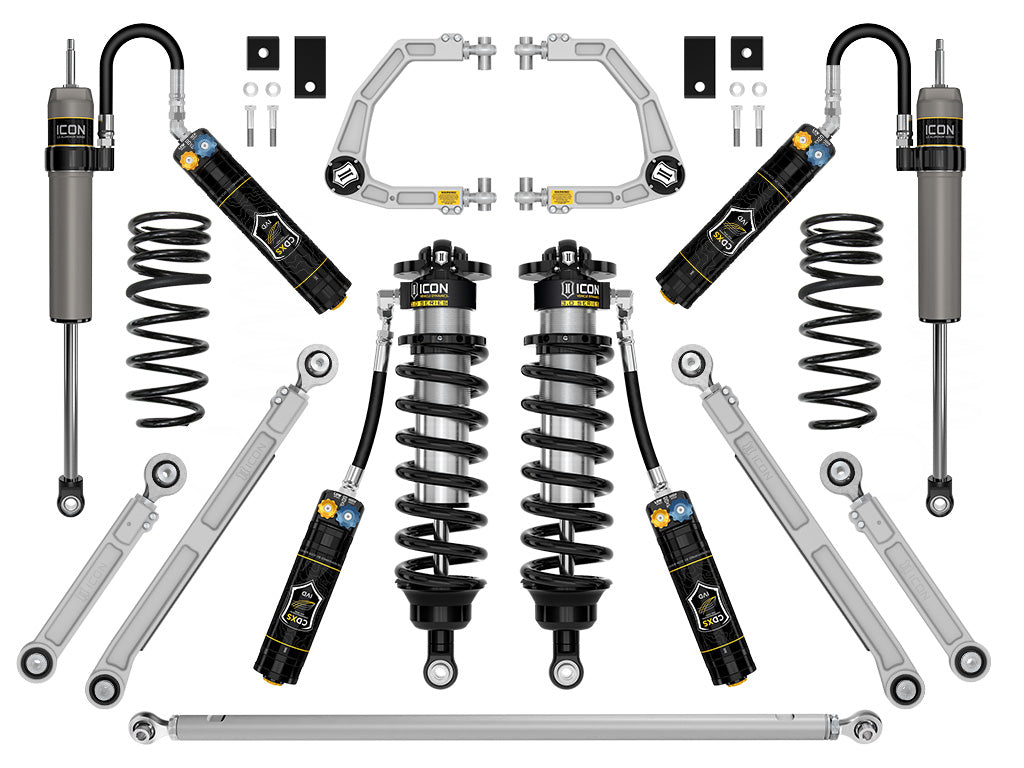

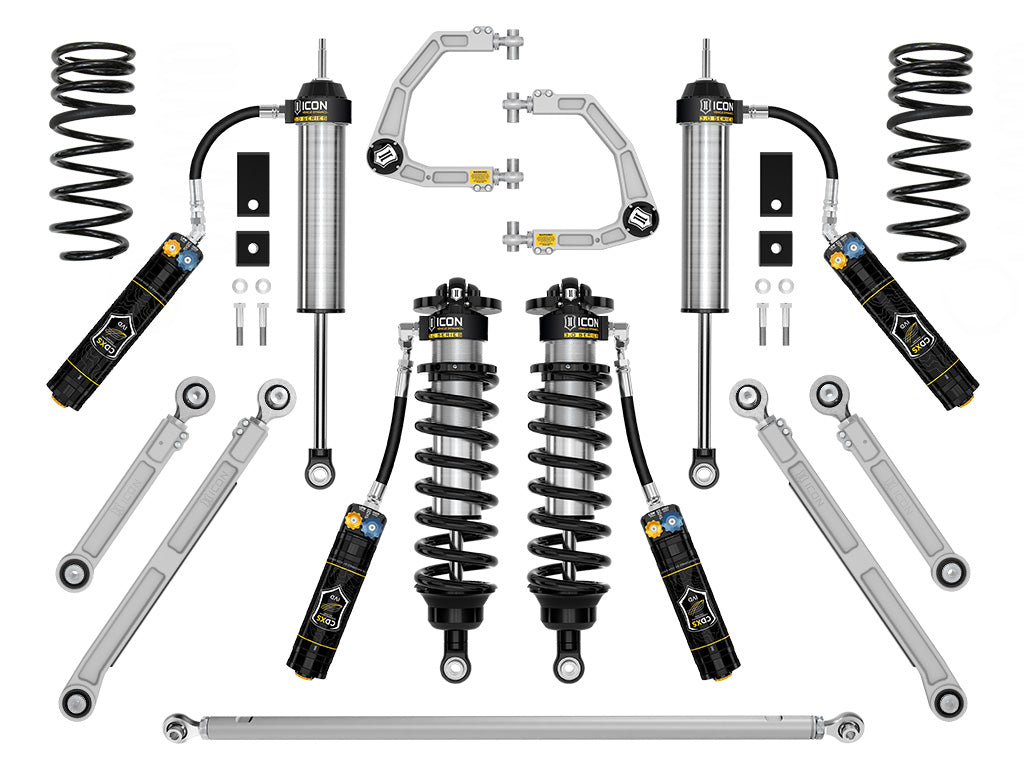

The ICON Vehicle Dynamics Stage 1 3.0 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 10 2.5 suspension system with the upgrade to 3.0 Series front coilovers. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35 Inch tires.

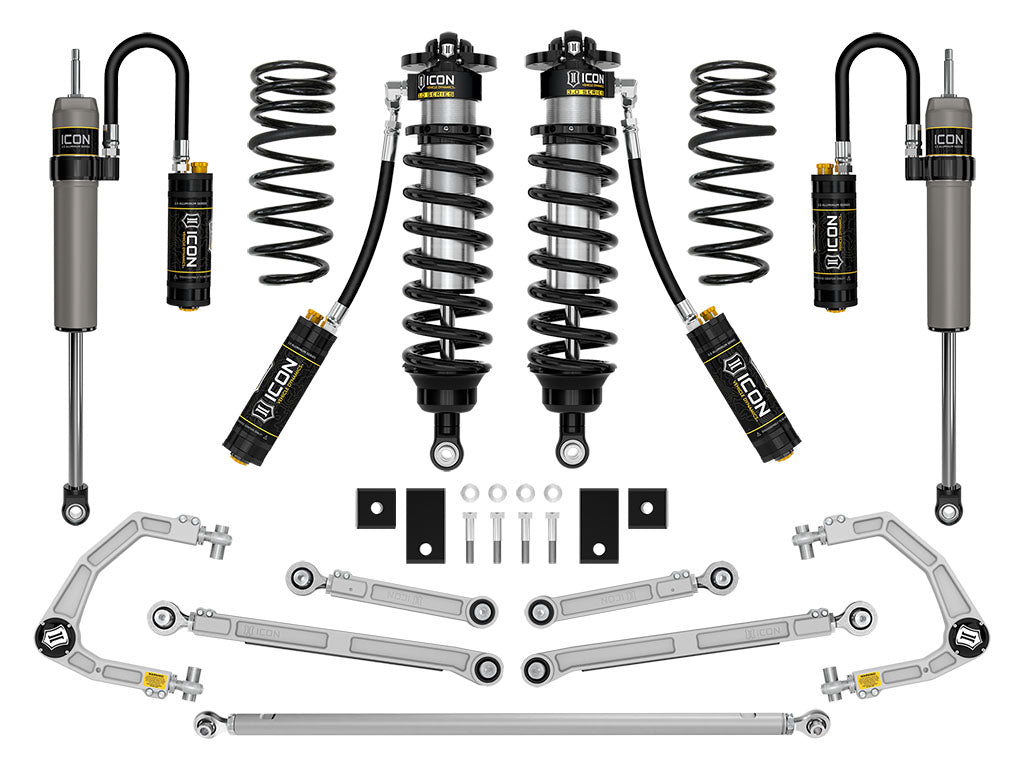

To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDCV rear remote reservoir shocks are included along with billet front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, adjustable rear track bar, and dual rate rear coil springs.
Features and Benefits:- This Stage 1 system features the 2023-2025 Toyota Sequoia VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.25 Inch of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50 Percent more piston surface area in the ride zone of the shock's travel, and 100 Percent in the InchBump Zone Inch, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON's Vehicle-specific shock length yields the maximum travel possible (up to 40 Percent increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
- The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2023-2025 Toyota Sequoia with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
- The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
- ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON's double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
- The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for shorter rear ride heights, these coil springs yield 2 inch of rear lift over stock on a non-TRD Sequoia or 0 Inch of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear.
- The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2023-2025 Sequoia. Double adjuster rod end threads allow easy Inchon-vehicle Inch fine adjustment of track bar length without requiring removal or disassembly of the track bar. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links.
- Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20 Percent of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
- Vehicle specific design for 2023-2025 Toyota Sequoia
- 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.25 Inch of front lift over stock
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate rear coil springs improve performance and ride quality while providing 0 inch or 2 inch of rear lift, depending on the vehicle's stock suspension package
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 3.0
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 4.25 Inch
- Maximum Lift Front: 4.25 Inch
- Maximum Lift Rear: 2.0 Inch
- Minimum Lift Front: 3.0 Inch
- Minimum Lift Rear: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset
- Reservoir Style: Remote
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 55153 - 22-25 Tundra/23-25 Sequoia Air Ride/Auto Headlight Bracket Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 GX550 Diff Drop Kit, 191013 - Nipple Greasing Adapter Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 252012 - -4 To -10 Hose Shield Kit
